1977 Suzuki TS100 Rear Fender Diagram

← All diagrams

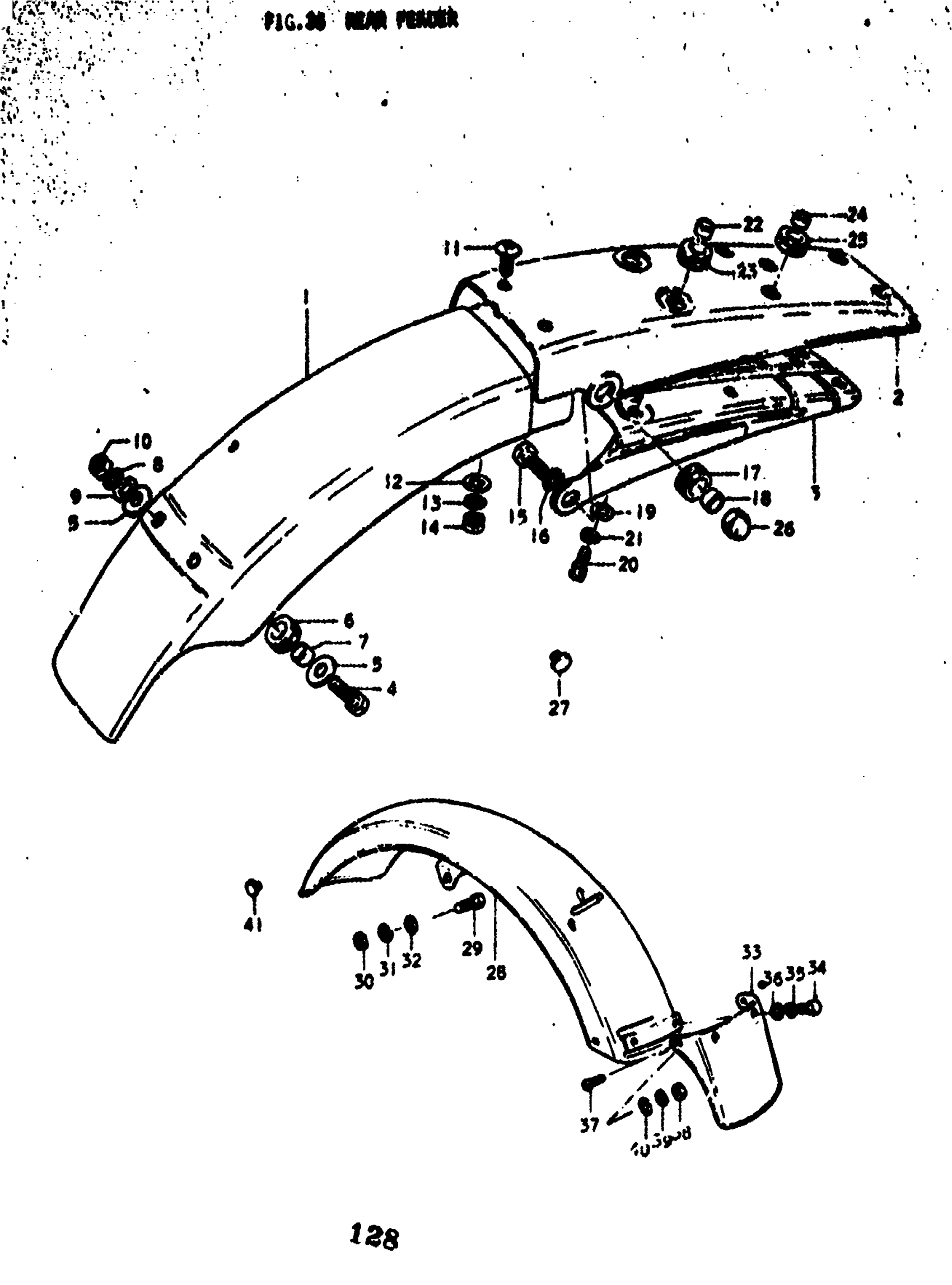

Find the part on the Rear Fender diagram for your 1977 Suzuki TS100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TS100 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER FRONT | K

63112-25610

1
Out of stock

2

BODY, REAR FENDER REAR | K

63113-25610-713

1
Out of stock

3

REINFORCEMENT, REAR FENDER | K

63120-25610

1
Out of stock

4

BOLT | K This part replaces 01112-06208.

01500-06207

2
Out of stock

5

WASHER (6.5X20X1.2) | K; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

2
Out of stock

6

CUSHION (8.5X20X8) | K This part replaces 09320-08007.

09320-08510

2
Out of stock

7

spacer | K ; 6.1x9x7.5

09180-06038

2
Out of stock

8

LOCK WASHER | K This part replaces 08321-21065.

08321-0106A

2
Out of stock

9

WASHER | K This part replaces 08322-21068.

08322-01067

1
Out of stock

10

.NUT | K This part replaces 08311-11068.

08310-00067

2
Out of stock

11

SCREW | K This part replaces 02141-05127.

02142-05127

2
Out of stock

12

WASHER | K This part replaces 08322-11058.

08322-01057

2
Out of stock

13

LOCK WASHER | K This part replaces 08321-21058.

08321-0105A

2
Out of stock

14

NUT | K This part replaces 08311-11058.

08310-00057

2
Out of stock

15

BOLT | K This part replaces 01122-08508.

01500-08507

2
Out of stock

16

.LOCK WASHER | K This part replaces 08321-21088.

08321-01087

2
Out of stock

17

FENDER SIDE CUS | K This part replaces 09320-12011.

09320-12090

2
Out of stock

18

SPACER | K ; 10.1x13x7

09180-10026

2
Out of stock

19

WASHER | K This part replaces 08322-11088.

08322-01087

4
Out of stock

20

BOLT, REAR | K This part replaces 01112-06308.

01500-06307

2
Out of stock

21

LOCK WASHER | K This part replaces 08321-21068.

08321-01067

2
Out of stock

22

SPACER (6.5X10X20) | K This part replaces 09180-06031.

09180-06296

2
Out of stock

23

CUSHION | K

09320-09002

2
Out of stock

24

SPACER | K ; 7.6x10x7

09180-07011

4
Out of stock

25

USHION 4

09320-09006 C

—
Out of stock

27

CUSHION | K This part replaces 09321-06013.

09321-06036

1
Out of stock

28

FENDER, REAR | L,M; TO 63110-25002-737

63110-25001-737

—
Out of stock

28

FENDER, REAR | A

63110-25002-189

—
Out of stock

28

FENDER, REAR | B This part replaces 63110-25003-189.

63110-25003-737

1
Out of stock

29

BOLT | L This part replaces 01122-08408.

01500-0840A

2
Out of stock

29

BOLT | M,A,B This part replaces 01122-08458.

01500-08453

2
Out of stock

30

NUT | L,M,A,B This part replaces 08313-11087.

08313-10087

2
Out of stock

31

.LOCK WASHER | L,M,A,B This part replaces 08321-21088.

08321-01087

2
Out of stock

32

WASHER | L,MA,B This part replaces 08322-11088.

08322-01087

2
Out of stock

33

MUD GUARD, REAR FENDER | L,M,A,B

63411-25000

1
Out of stock

34

BOLT | L,M,A,B; 6x14 This part replaces 09100-06026.

09100-06067

2
Out of stock

35

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

2
Out of stock

36

WASHER | L,M,A,B This part replaces 08322-21068.

08322-01067

2
Out of stock

37

SCREW | L,M,A,B This part replaces 02141-05107.

02142-05107

2
Out of stock

38

NUT | M,A,B This part replaces 08311-11058.

08310-00057

2
Out of stock

39

LOCK WASHER | M,A,B This part replaces 08321-21058.

08321-0105A

2
Out of stock

40

WASHER | M,A This part replaces 08322-21058.

08322-01057

2
Out of stock

41

PLUG, REAR FENDER | L,M,A,B

09321-09001

1
Out of stock
