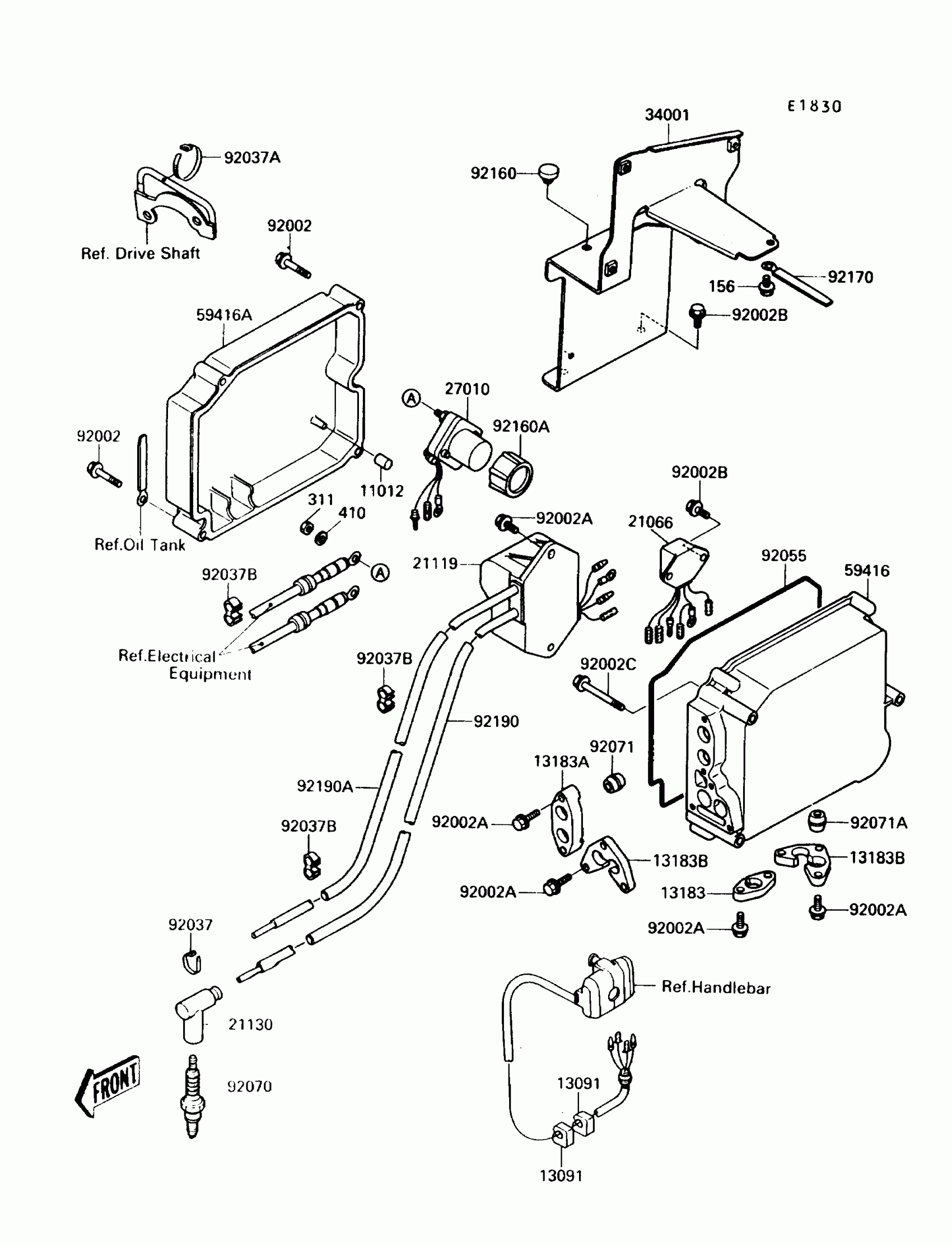

Kawasaki TS Ignition System Diagram

#

Description
Price

11012

CAP

11012-3734

Unavailable

13091

HOLDER

13091-3712

$4.14

13183

PLATE

13183-3712

Unavailable

13183A

PLATE

13183-3730

Unavailable

13183B

PLATE

13183-3737

Unavailable

21066

REGULATOR-VOLTAGE

21066-3708

Unavailable

21119

IGNITER

21119-3718

$671.40

21130

CAP-SPARK PLUG

21130-1062

$30.43

27010

SWITCH,STARTER RELAY

27010-3714

Unavailable

34001

STAND

34001-3702

$101.15

59416

CASE-ELECTRIC

59416-3718

$97.02

59416A

CASE-ELECTRIC

59416-3719

$80.63

92002

BOLT,6X35

92002-3715

$5.75

92002A

BOLT,6X20

92002-3755

$3.57

92002B

BOLT,6X12

92002-3763

$3.57

92002C

BOLT,6X55

92002-3772

Unavailable

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP,L=200

92037-1576

$8.22

92037B

CLAMP,HOSE

92037-1603

$3.81

92055

RING-O,ELECTRIC CASE

92055-3715

$29.25

92070

PLUG-SPARK,BR7ES(NGK)

92070-3701

$3.66

92071

GROMMET

92071-3756

$3.98

92071A

GROMMET,ELECTRIC CASE

92071-3765

$3.59

92160

DAMPER

92075-1983

$3.19

92160A

DAMPER

92160-3729

Unavailable

92170

CLAMP

92170-3705

Unavailable

92190

TUBE,HIGH TENSION,L=330

92190-3707

Unavailable

92190A

TUBE,HIGH TENSION,L=210

92190-3708

Unavailable

156

BOLT-WP,6X12

156R0612

$3.51

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68
