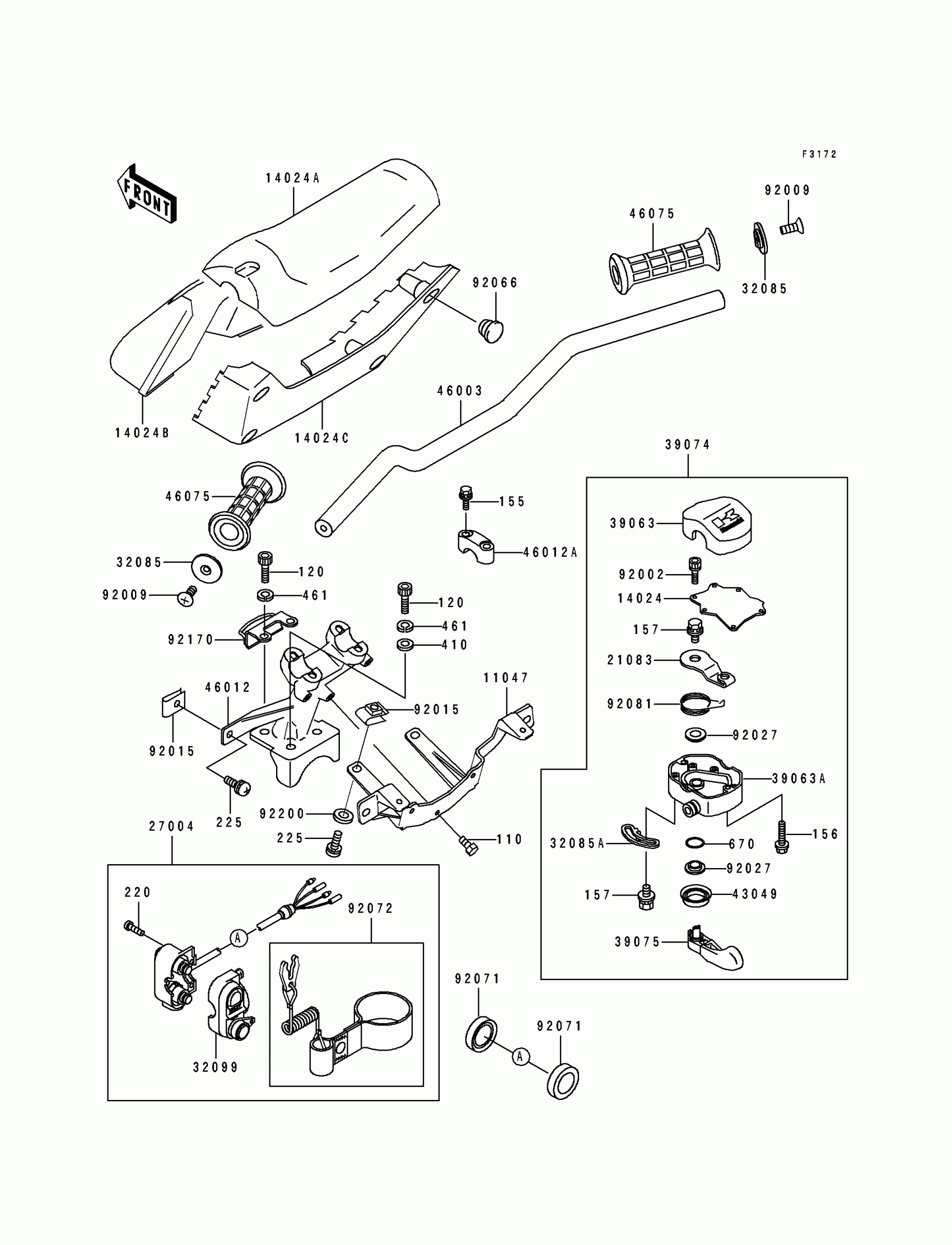

Kawasaki TS Handlebar(JF650-B3/B4) Diagram

#

Description
Price

11047

BRACKET,HANDLE COVER

11047-3713

Unavailable

14024

COVER,THROTTLE LEVER

14024-3701

Unavailable

14024A

COVER,HANDLE,UPP,F.BLACK

14024-3775-21

Unavailable

14024B

COVER,HANDLE,FR,M.M.BLUE

14024-3776-TA

Unavailable

14024C

COVER,HANDLE,RR,M.M.BLUE

14024-3808-TA

Unavailable

21083

ARM,THROTTLE LEVER

21083-3701

$14.81

27004

SWITCH-ASSY,STOP&START

27004-3714

Unavailable

32085

STOPPER

32085-3705

$4.29

32085A

STOPPER

32085-3709

Unavailable

32099

CASE,TETHER SWITCH

32099-3738

Unavailable

39063

HOUSING-CONTROL,UPP

39063-3703

Unavailable

39063A

HOUSING-CONTROL,LWR

39063-3707

Unavailable

39074

LEVER-ASSY-THROTTLE

39074-3711

$231.05

39075

LEVER-THROTTLE

39075-3704

Unavailable

43049

PACKING,THROTTLE LEVER

43049-3701

$7.56

46003

HANDLE

46003-3717

$209.25

46012

HOLDER-HANDLE,LWR

46012-3718

Unavailable

46012A

HOLDER-HANDLE,UPP

46012-3720

$15.76

46075

GRIP,HANDLEBAR

46075-3713

Unavailable

92002

BOLT,SOCKET,3X10

92002-3751

$4.80

92009

SCREW,6X16

92009-3703

$3.43

92015

NUT,5MM

92015-3799

Unavailable

92027

COLLAR,THROTTLE LEVER

92027-3704

Unavailable

92066

PLUG

92066-3730

Unavailable

92071

GROMMET

92071-3771

Unavailable

92072

BAND,TETHER SWITCH

92072-3734

$58.43

92081

SPRING,THROTTLE LEVER RETURN

92081-3702

$5.66

92170

CLAMP,HARNESS&CABLE

92170-3727

Unavailable

92200

WASHER,6.5X16X1.0

92200-3712

Unavailable

110

BOLT 6X12

110R0612

Unavailable

120

BOLT-SOCKET,8X25

120R0825

$8.51

155

BOLT-WSP-SMALL,8X35

155R0835

$8.03

156

BOLT-WP,5X25

156R0525

Unavailable

157

BOLT-WSP,5X12

157R0512

Unavailable

220

SCREW-PAN-CROS,5X30

220R0530

$4.32

225

SCREW-PAN-WSP-CROS,5X25

225R0525

Unavailable

410

WASHER-PLAIN-SMALL,8MM

410S0800

$1.68

461

WASHER SPRING 8MM

461S0800

$0.66

670

O RING,8MM

670B1508

$1.17
