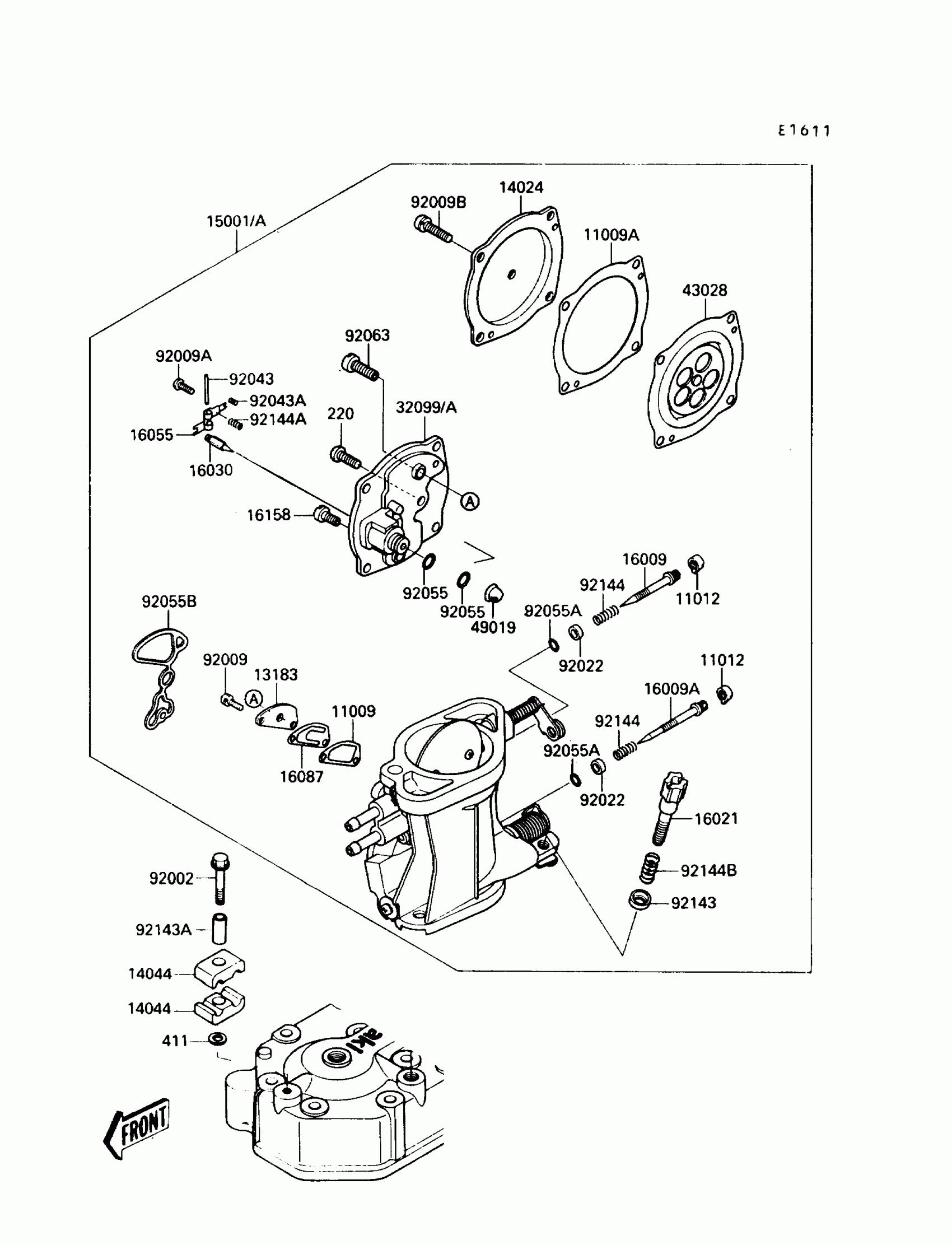

Kawasaki TS Carburetor Diagram

#

Description
Price

11009

GASKET,CHOKE VALVE

11009-3729

Unavailable

11009A

GASKET,DIAPHRAGM

11009-3730

$14.53

11012

CAP,JET NEEDLE

11012-3727

Unavailable

13183

PLATE

13183-3707

Unavailable

14024

COVER,CARBURETOR

14024-3765

Unavailable

14044

HOLDER-CABLE

14044-3707

Unavailable

15001A

CARBURETOR-ASSY

15001-3746

$579.66

16009

NEEDLE-JET,HIGH SPEED

16009-3705

Unavailable

16009A

NEEDLE-JET,LOW SPEED

16009-3706

Unavailable

16021

SCREW-THROTTLE STOP

16021-3702

Unavailable

16030

VALVE-FLOAT

16030-3701

$44.67

16055

ARM-FLOAT

16055-3701

$48.58

16087

VALVE-CHECK

16087-3702

Unavailable

16158

JET-SLOW,#52

16158-3703

Unavailable

32099A

CASE,CARBURETOR

32099-3744

$110.69

43028

DIAPHRAGM,CARBURETOR

43028-3704

$97.40

49019

FILTER-FUEL,STRAINER

49019-3707

$6.21

92002

BOLT,6X35

92002-3715

$5.75

92009

SCREW,3X6

92009-3710

$3.64

92009A

SCREW,3X8

92009-3712

$1.49

92009B

SCREW,4X16

92009-3739

$7.24

92022

WASHER,ADJUST SCREW

92022-3745

Unavailable

92043

PIN,FLOAT

92043-1209

$5.37

92043A

PIN,THROTTLE STOP SCREW

92043-3712

Unavailable

92055

RING-O

92055-1246

$3.43

92055A

RING-O,ADJUST SCREW

92055-3713

Unavailable

92055B

RING-O

92055-3720

Unavailable

92063

JET-MAIN,#125

92063-1069

$11.23

92143

COLLAR,THROTTLE STOP SCREW

92143-3709

Unavailable

92143A

COLLAR,7.5X10.5X24

92143-3717

Unavailable

92144

SPRING,ADJUST SCREW

92144-3704

Unavailable

92144A

SPRING,FLOAT VALVE

92144-3705

Unavailable

92144B

SPRING,THROTTLE STOP SCREW

92144-3706

$7.41

220

SCREW-PAN-CROS,4X8

220D0408

$0.63

411

WASHER-PLAIN,6MM

411S0600

$1.49
