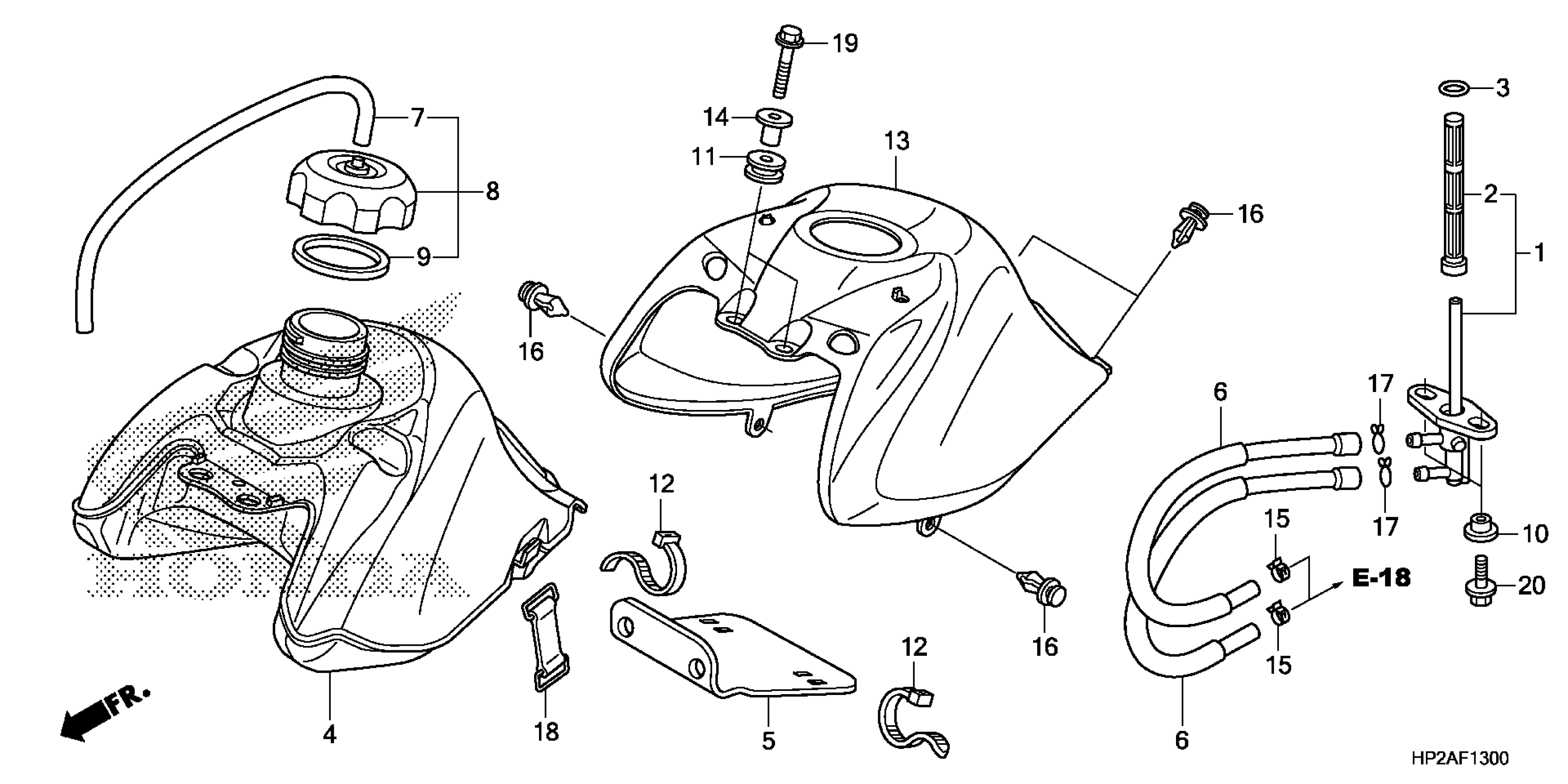

Honda TRX90XAC (20) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE183-LK100001 TO JH2TE183-LK199999 FUEL TANK Diagram

Description

Price

FILTER ASSY., FUEL

16900-HP2-671

$36.91

SCREEN SET, FUEL STRAINER

16952-HN1-003

$19.29

O-RING (11.8X3.55)

16997-467-000

$2.14

TANK, FUEL

17510-HP2-840

$261.37

MAT, FUEL TANK

17511-HP2-670

$7.45

TUBE, FUEL

17514-HP2-840

$18.83

TUBE, FUEL CAP BREATHER

17521-HA2-670

$6.95

CAP ASSY., FUEL TANK

17620-HF7-000

$52.76

GASKET, FUEL CAP (Honda Code 4067716)

17624-HF7-000

$7.78

COLLAR, FUEL TANK SETTING

17626-467-000

$4.75

RUBBER, MUFFLER

18334-KA3-830

Unavailable

BAND (BLACK 3.5X140)

35701-MG9-950

$1.92

COVER, TANK R299R (NITRO RED)

83500-HP2-840ZB

$43.77

COVER, TANK G152 (ADVENTURE GREEN)

83500-HP2-840ZC

$49.22

COVER, TANK NH196 (ROSS WHITE)

83500-HP2-840ZA

$43.77

COLLAR, TANK COVER

83610-HP2-840

$4.49

CLAMP, TUBE (D10.0)

90651-KPS-A11

$1.98

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.57

CLIP, TUBE (C11)

95002-70000

Unavailable

BAND A, BATTERY

95012-11001

$2.92

BOLT, FLANGE (6X28)

95701-06028-07

$1.09

BOLT, FLANGE (6X16)

96001-06016-00

$1.02
