Description

Price

1

PIN, OIL GUIDE (8MM)

11145-HN8-010

$8.71

2

STAY, R. RR. ENGINE SIDE COVER

11312-HN8-000

$18.22

3

STAY, L. RR. ENGINE SIDE COVER

11322-HN8-A60

$20.03

4

COVER, RR.

11340-HN8-A60

$211.20

5

GASKET, RR. COVER

11345-HN8-000

$21.29

6

ORIFICE (1.0MM)

11349-HN8-300

$4.12

7

COVER, ALTERNATOR

11350-HN8-F40

$115.09

8

GASKET, ALTERNATOR COVER

11396-HN8-A60

$16.72

9

CAP, OIL FILLER

15655-HN8-010

$9.98

10

PIPE, OIL FILLER

15660-HN8-000

$73.72

11

SWITCH ASSY., CHANGE

35759-HN8-000

$80.95

12

SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)

37750-KPH-701

$48.15

13

BOLT, DRAIN PLUG (12MM)

90002-HL3-A00

$10.81

14

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.40

15

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.50

16

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.83

17

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.05

18

BOLT, FLANGE (6X90) (NSHF)

90004-GHB-810

$5.50

19

CAP (14MM)

90084-KY2-000

$15.33

20

CLIP, FUEL BREATHER TUBE

90115-HN8-000

$1.29

21

WASHER A, SEALING (6MM)

90443-035-000

$3.62

22

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.92

23

BEARING, RADIAL BALL (6906)

91015-HN8-003

$12.54

24

BEARING, NEEDLE (25X37X17)

91021-HN8-003

$14.77

25

OIL SEAL (25X35X5)

91203-KCY-671

$7.09

26

OIL SEAL (13X22X5) (ARAI)

91204-KE8-003

$3.10

27

OIL SEAL (34X50X7) (ARAI)

91261-MB0-003

$11.65

28

O-RING (13.8X2.5)

91303-377-000

$3.40

29

O-RING (9X1.8)

91305-GE1-920

$1.74

30

O-RING (17X3.6)

91305-HN8-003

$2.23

31

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

32

O-RING (21.5X3.2)

91307-425-003

$2.67

33

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.15

33

O-RING (17.0X2.5) (ARAI) This part replaces 91333-567-010.

91333-KE5-003

$2.15

34

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.18

35

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.89

36

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.57

37

BOLT, FLANGE (8X140)

95701-08140-00

$2.74

38

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.08

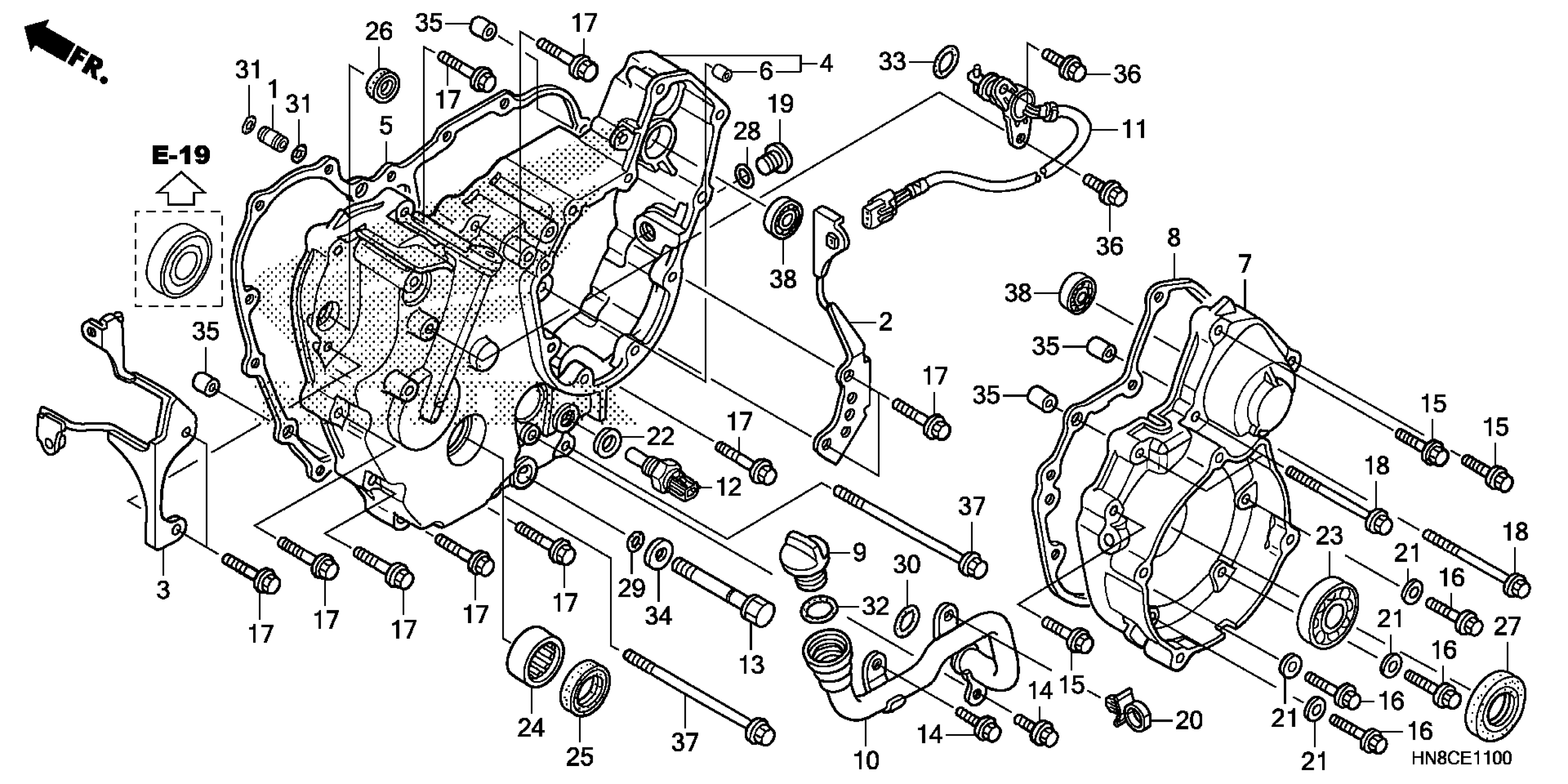

Honda TRX680FA5A (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE331-P4800001 REAR CRANKCASE COVER Diagram
