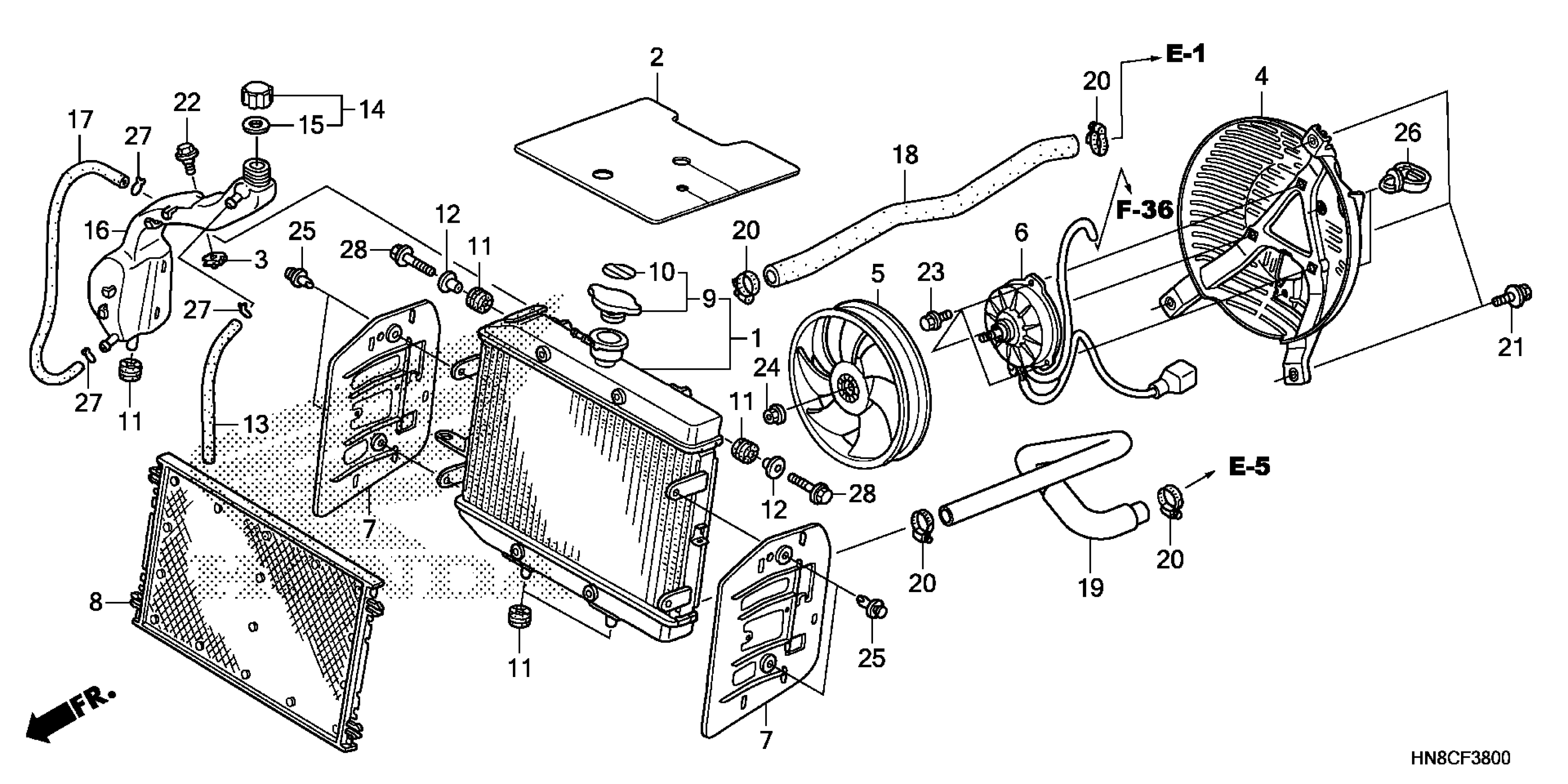

Honda TRX680FA5A (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE331-P4800001 RADIATOR Diagram

#

Description
Price

1

RADIATOR

19010-HN8-A61

$224.47

2

RUBBER, RADIATOR

19011-HN8-A60

$12.00

3

NUT, SETTING (6MM)

19014-KEA-003

$3.08

4

STAY, COOLING FAN

19015-HN8-F41

Unavailable

5

FAN, COOLING

19020-HN2-003

$65.83

6

MOTOR ASSY., FAN

19030-HN8-F41

Unavailable

7

COVER, RADIATOR GRILLE

19033-HN8-000

$8.77

8

PLATE, RADIATOR GRILLE

19035-HN8-000

$33.82

9

CAP, RADIATOR

19037-GEE-710

$28.96

10

LABEL, RADIATOR CAP

19046-PAA-A00

$3.54

11

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.30

12

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.40

13

TUBE, RESERVE TANK BREATHER

19104-HN8-000

$1.02

14

CAP ASSY., RESERVE TANK

19105-MG8-000

$12.07

15

GASKET, RESERVE TANK

19107-MG8-000

$4.88

16

TANK, RADIATOR RESERVE

19110-HN8-000

$42.74

17

TUBE, RADIATOR RESERVE

19111-HN8-000

$1.40

18

HOSE, WATER (UPPER)

19505-HN8-000

$15.14

19

HOSE, WATER (LOWER)

19506-HN8-000

$14.70

20

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.16

21

BOLT-WASHER (6X15)

90107-HN8-003

$1.86

22

BOLT, FLANGE (6MM)

90111-187-000

$7.70

23

BOLT, FLANGE (5X10)

90196-MN5-000

$2.15

24

NUT, SERRATE (5MM)

90315-MK3-003

$2.25

25

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.57

26

CLIP, WIRE HARNESS (25MM)

90683-SA0-003

$9.60

27

CLIP, TUBE (B10)

95002-02100

$1.83

28

BOLT, FLANGE (6X22)

95701-06022-00

$1.88
