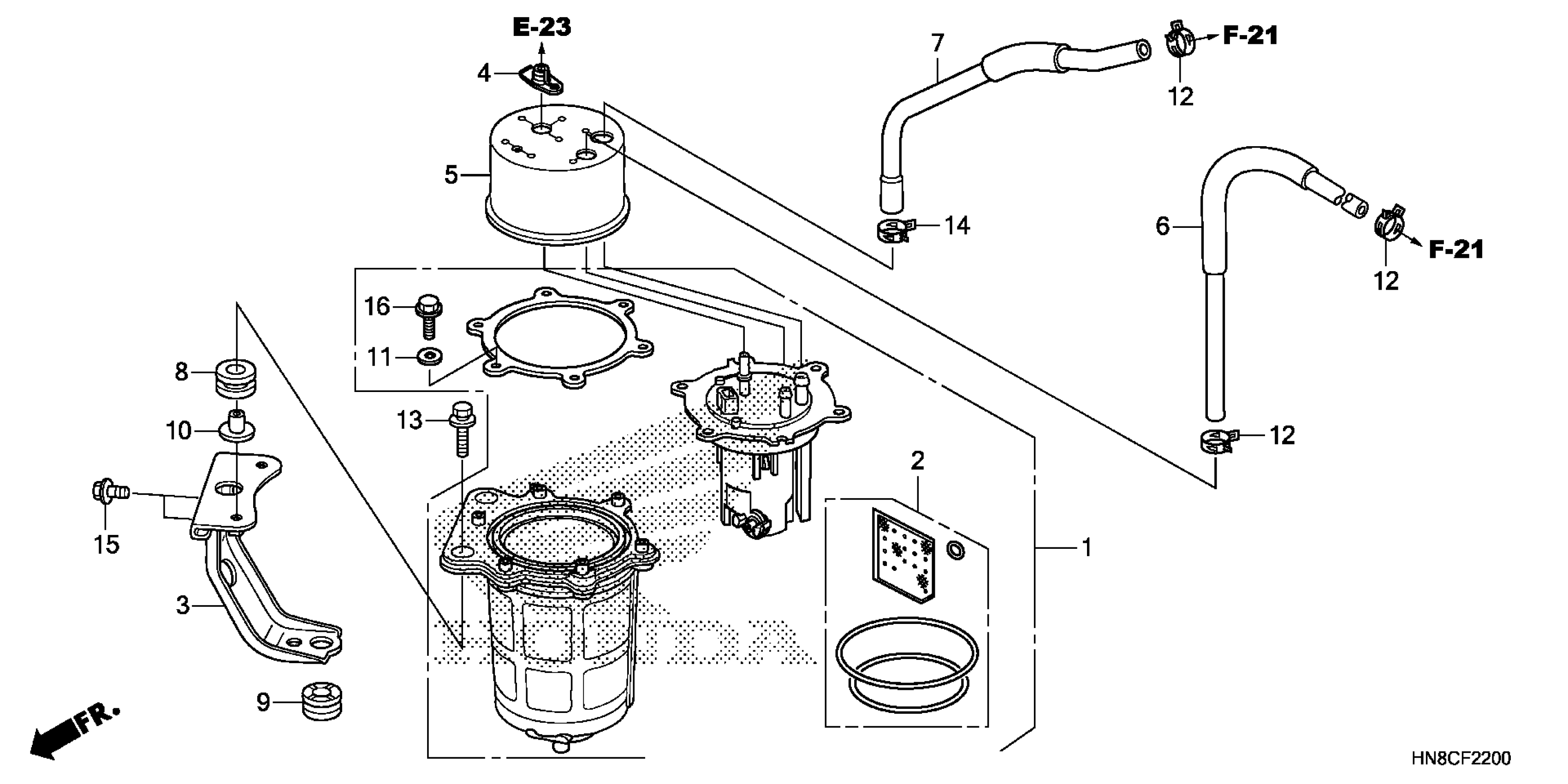

Honda TRX680FA5A (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE331-P4800001 FUEL PUMP Diagram

Description

Price

PUMP ASSY., FUEL (MSDS)

16700-HN8-601

$138.35

FILTER SET (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)

16706-HR0-F01

$23.86

SUB-STAY, FUEL PUMP

16710-HN8-A60

$16.55

DAMPER, CONNECTOR

16718-HR0-F00

$0.62

COVER, FUEL PUMP

16720-HN8-A60

$8.61

TUBE, FUEL PUMP BREATHER

16730-HN8-B40

$21.52

TUBE, FUEL

16955-HN8-B40

$23.32

RUBBER, MUFFLER

18334-KA3-830

Unavailable

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.30

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.40

WASHER, CONICAL SPRING

90501-HN8-A60

$0.77

CLAMP, TUBE (12.0)

90651-HN6-A51

$2.00

BOLT-WASHER (6X25)

93404-06025-00

$1.06

CLAMP, TUBE (D13)

95002-41300-05

$1.09

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.12

BOLT, FLANGE (6X14)

96001-06014-00

$1.88
