Description

Price

1

RUBBER, TANK SPACER

17511-HM5-670

$10.77

2

BATTERY,YTX20L-BS This part replaces 31500-MCA-003.

31500-MCA-013AH

$133.20

2

BATTERY (YTX20L-BS) (YUASA) (Honda Code 8753667)

31500-MCA-003AH

Unavailable

3

CABLE, BATTERY RELAY (N/A: USE CABLE SET 32010-HN8-000)

32401-HN8-650

Unavailable

4

CABLE, STARTER MOTOR

32405-HN8-010

$28.75

5

COVER, STARTER MOTOR TERMINAL

32411-MEW-920

$4.08

6

COVER, BATTERY TERMINAL

32412-HN8-650

$1.68

7

COVER, MAGNETIC SWITCH TERMINAL

32416-HN8-300

$1.38

8

CABLE, BATTERY GROUND (N/A: USE CABLE SET 32010-HN8-000)

32601-HN8-650

$15.77

9

SWITCH ASSY., STARTER MAGNETIC

35850-HN8-003

$59.85

10

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.45

11

STAY, STARTER MAGNETIC

50326-HC4-000

$8.27

12

BOX, BATTERY

50400-HN8-A60

$79.08

13

COVER, BATTERY

50403-HN8-000

$7.17

14

ROD, BATTERY BOX

50404-HN8-000

$33.08

15

NUT, CLIP (6MM) (NA USE ALT:64529-MN5-000)

64529-KCH-780

Unavailable

16

RUBBER, SEAT STOPPER

77103-GK4-000

$4.46

17

BOLT, FLANGE (6X20)

90020-438-000

$3.33

18

WASHER, SPRING (6MM) (Honda Code 1310549)

90052-ZA0-800

$1.05

19

BOLT, FLANGE (6MM)

90104-KAB-000

$2.88

20

CLIP, WIRE HARNESS

90684-ZA0-601

$2.92

21

BOLT-WASHER (8X20)

93404-08020-07

$2.02

22

SCREW, TAPPING (5X12)

93903-25220

$0.94

23

NUT, HEX. (6MM)

94002-06390-0S

$0.82

24

BAND F, BATTERY (155MM)

95012-17001

$7.19

25

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.12

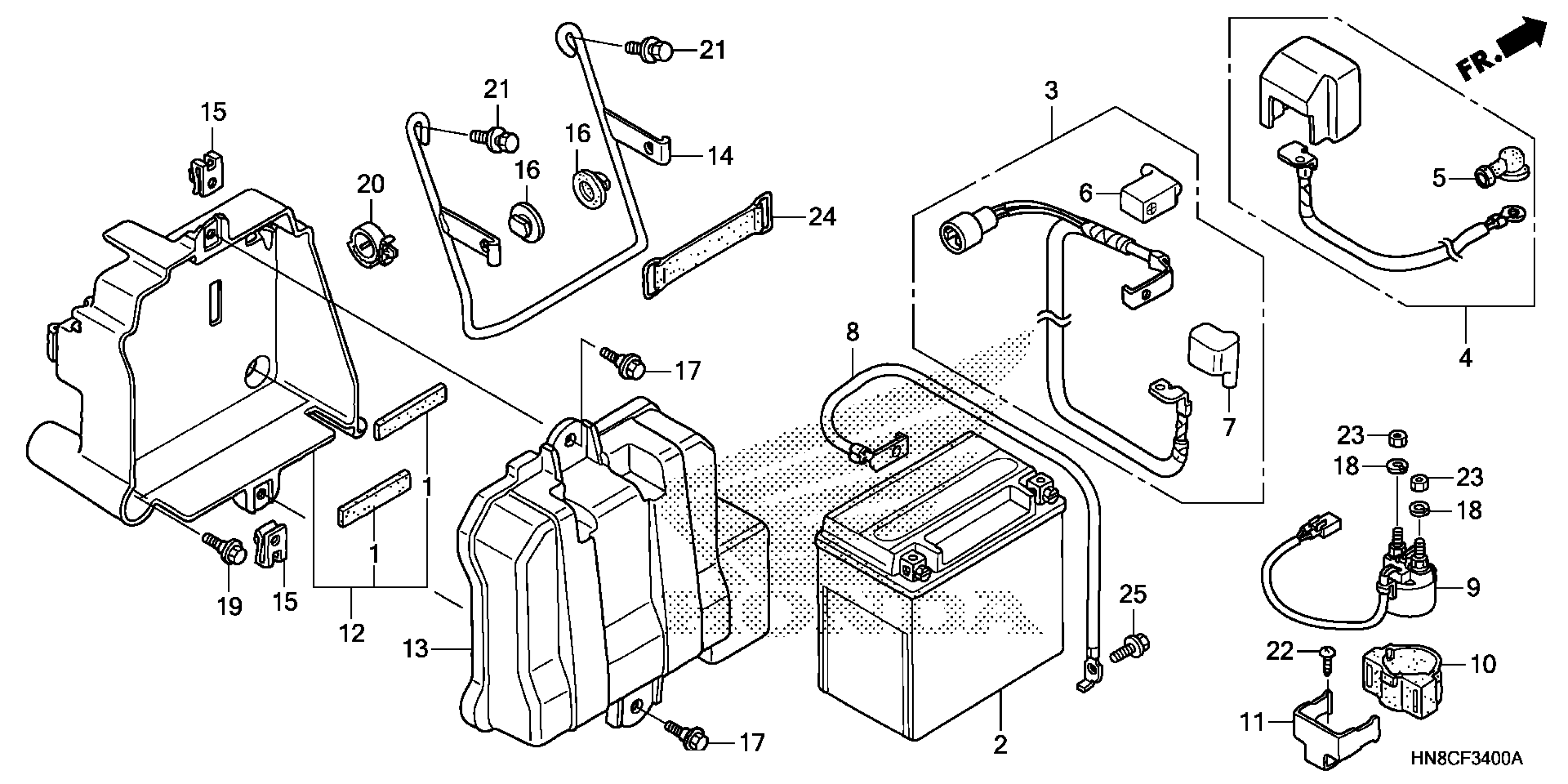

Honda TRX680FA5A (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE331-P4800001 BATTERY Diagram

BATTERY (YTX20L-BS) (YUASA) (Honda Code 8753667)

CABLE, BATTERY RELAY (N/A: USE CABLE SET 32010-HN8-000)

NUT, CLIP (6MM) (NA USE ALT:64529-MN5-000)
