Description

Price

1

FRAME

50100-HR6-M00

$1,677.35

2

FRAME, RR. (LOWER)

50200-HR6-A60

$755.69

3

RUBBER, ENGINE HEAD MOUNTING

50201-HP5-600

$9.37

4

RUBBER, ENGINE MOUNTING (LOWER)

50202-HP0-A50

$24.20

5

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$19.58

6

RUBBER C, MOUNTING

50204-HP5-600

$6.78

7

COLLAR, ENGINE HANGER

50304-HN8-000

$5.26

8

STAY, CONNECTOR (SIDE)

50340-HR6-A60

$7.68

9

BRACKET, FR. GEAR CASE

50350-HR3-A20

$6.94

10

BRACKET, HEAD HANGER

50351-HP5-600

$9.69

11

SKID, RR. GEAR CASE

50355-HR6-A60

$10.58

12

GUARD, ENGINE NH1 (BLACK)

50360-HR3-A20ZA

$45.45

13

STAY, CONNECTOR (FR)

50370-HR3-A20

$8.87

14

DEFLECTOR, AIR

50380-HR6-A60

$4.78

15

HITCH, TRAILER

50810-HN8-000

$63.82

16

BOLT, SWINGARM PIVOT (12X70)

52101-HR3-A20

$1.80

17

NUT, SPECIAL (6X7)

61304-958-003

$3.23

18

BOLT, ENGINE HANGER (10X148)

90103-147-000

$11.87

19

BOLT, FLANGE (12X193)

90106-MEJ-000

$16.61

20

BOLT, FLANGE (6MM)

90111-147-000

$2.78

21

BOLT, FLANGE (6MM)

90111-187-000

$7.70

22

BOLT, FLANGE (10X55) BOLT, FLANGE (10X50)

90120-HC4-000

$6.43

23

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.98

24

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.18

25

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.71

26

JOINT, BREATHER TUBE

90652-HF7-003

$9.13

27

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.57

28

CLIP, WIRE HARNESS (6MM) (WHITE)

90654-SA4-003

$0.22

29

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.60

30

CLIP, WIRE HARNESS

90684-ZA0-601

$2.92

31

CLIP, WASHER MOUTH

91504-SD5-901

$4.38

32

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.10

33

CLIP, CONNECTOR (BROWN)

91535-TF0-003

$2.94

34

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.41

35

CLIP, WIRE HARNESS NH1L (BLACK)

91558-SD5-003

$7.52

36

NUT, FLANGE (10MM)

94050-10000

$1.74

37

BOLT, FLANGE (8X16)

95701-08016-08

$1.69

38

BOLT, FLANGE (8X22)

95701-08022-00

$2.03

39

BOLT, FLANGE (10X60)

95701-10060-00

$1.91

40

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.71

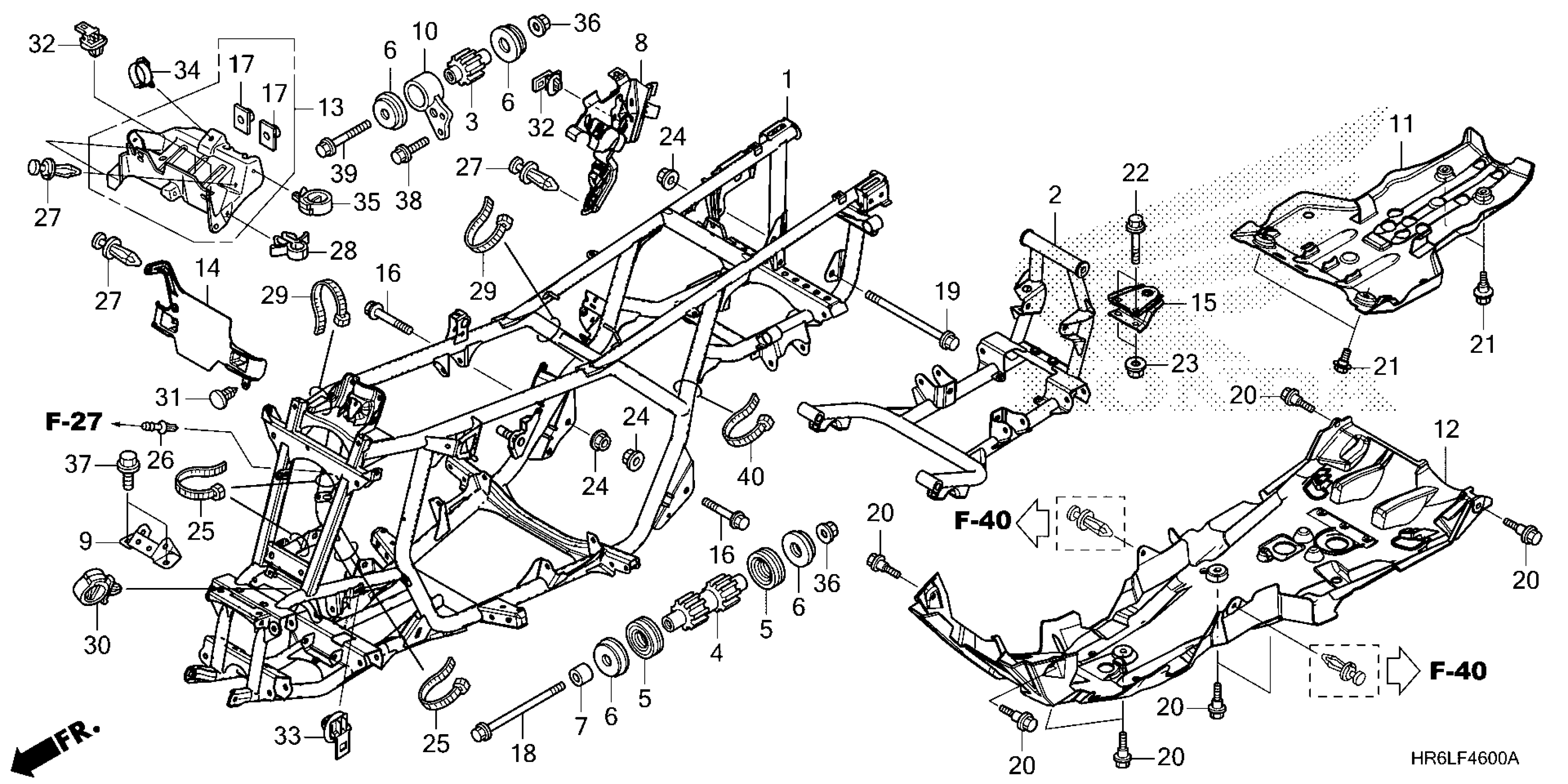

Honda TRX520FA5A (20) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE46E-L4500001 TO 1HFTE46E-L4599999 FRAME Diagram
