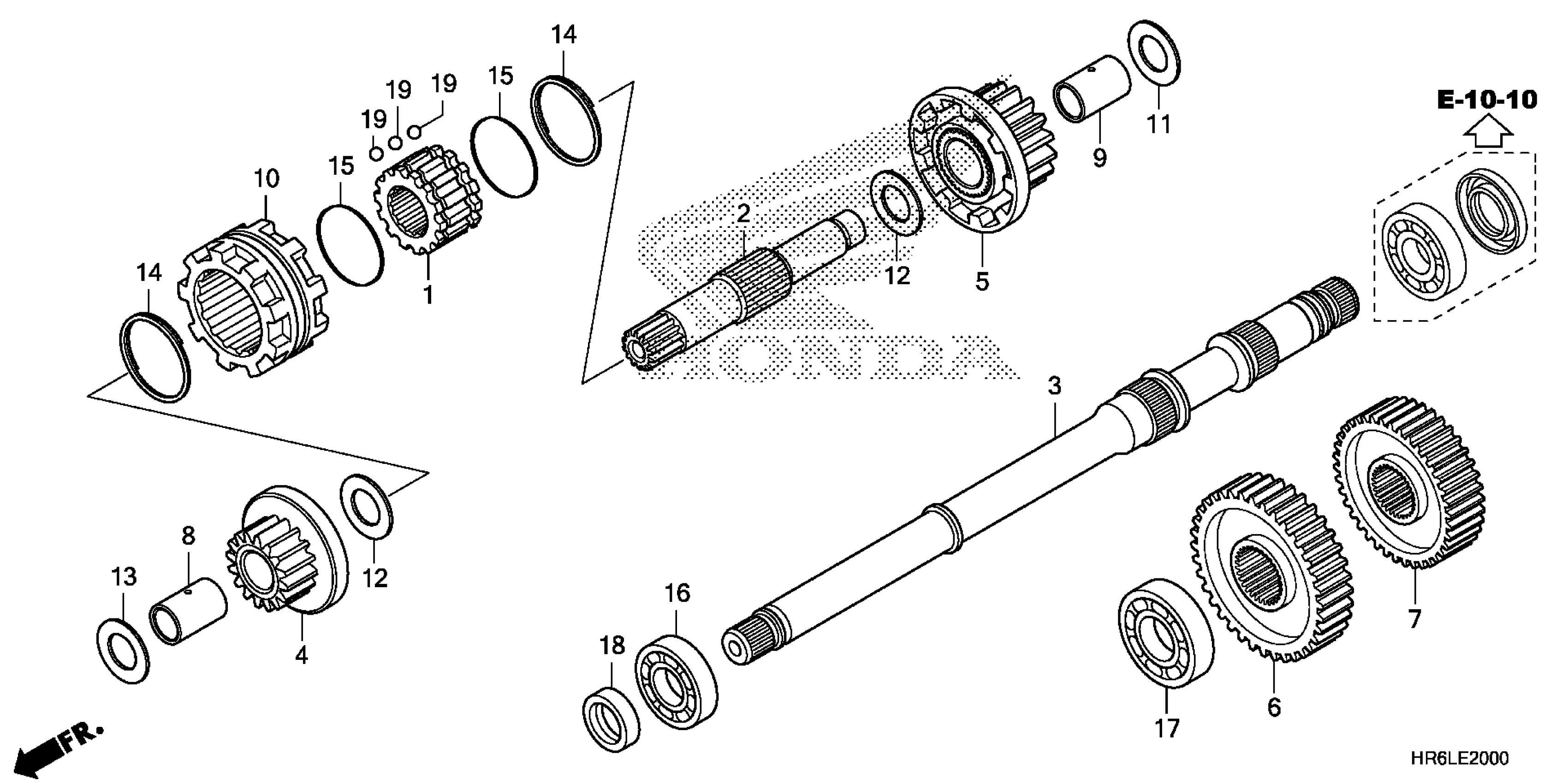

Honda TRX520FA5A (20) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE46E-L4500001 TO 1HFTE46E-L4599999 FINAL SHAFT Diagram

#

Description
Price

1

COLLAR, FINAL SHIFTER

23433-HR6-A60

$41.68

2

SHAFT, FINAL DRIVE

23601-HR6-A60

$57.14

3

SHAFT, FINAL

23611-HR6-A60

$107.05

4

GEAR, FINAL DRIVE LOW

23620-HR6-A60

$98.60

5

GEAR, FINAL DRIVE HIGH

23630-HR6-A60

$114.97

6

GEAR, FINAL DRIVEN LOW

23631-HR6-A60

$59.57

7

GEAR, FINAL DRIVEN HIGH

23632-HR6-A60

$52.08

8

COLLAR (20X23X31.6)

23633-HR6-A60

$16.42

9

COLLAR (20X23X34)

23634-HR6-A60

$17.91

10

SHIFTER, FINAL

23641-HR6-A60

$38.62

11

WASHER, SPECIAL (17MM)

90403-HN8-000

$2.80

12

WASHER, THRUST (20MM) (NOT AVAILABLE)

90457-HR6-A60

Unavailable

13

WASHER, THRUST (20MM)

90458-292-000

$3.52

14

RING, DOUBLE COIL (INNER)

90613-HR6-A60

$9.86

15

CLIP (38.6MM)

90616-HR6-A60

$2.92

16

BEARING, RADIAL BALL (22X47X14)

91006-HP5-601

$11.37

17

BEARING, RADIAL BALL (60/28)

91052-HN2-B71

$26.83

18

OIL SEAL (22X35X7)

91202-HR0-F01

$8.12

19

BALL, STEEL (#5) (5/32)

96211-05000

$1.03
