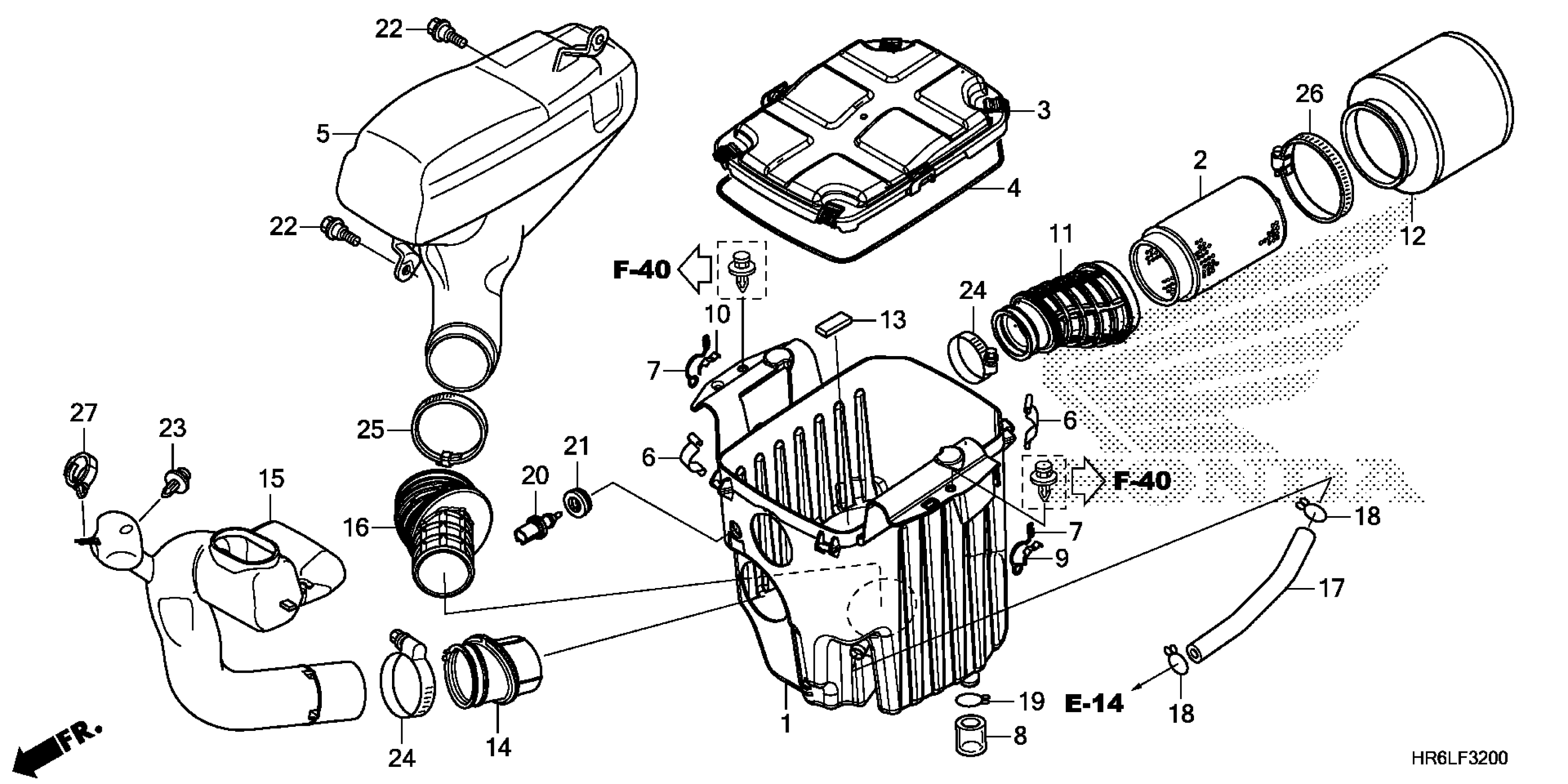

Honda TRX520FA5A (20) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE46E-L4500001 TO 1HFTE46E-L4599999 AIR CLEANER Diagram

#

Description
Price

1

HOUSING, AIR CLEANER

17210-HR6-A60

$37.63

2

BODY, AIR CLEANER

17211-HP0-A00

$22.53

3

LID, AIR CLEANER

17217-HR6-A60

$10.30

4

SEAL, AIR CLEANER COVER

17219-HR6-A60

$15.26

5

CHAMBER, AIR CLEANER SUB

17220-HR6-A60

$33.42

6

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.75

7

SPRING, AIR CLEANER LID

17223-HN1-A40

$3.74

8

TUBE, AIR CLEANER DRAIN

17224-HM8-B40

$6.83

9

HOOK, R. LID SPRING (Honda Code 5898382)

17228-HN1-000

$2.52

10

HOOK, L. LID SPRING (Honda Code 5898390)

17229-HN1-000

$2.52

11

TUBE, AIR CLEANER CONNECTING

17253-HR6-A60

$26.37

12

ELEMENT, AIR CLEANER

17254-HN1-000

$22.04

13

COVER, DUST

17256-HR3-A20

$0.48

14

TUBE, SNORKEL

17258-HR3-A20

$4.30

15

DUCT, SNORKEL

17259-HR3-A20

$42.77

16

TUBE, SUB-CHAMBER CONNECTING

17262-HR6-B00

$6.51

17

TUBE, BREATHER

17366-HR6-A60

$55.50

18

CLIP, SUB-TANK HOSE

17724-102-700

$4.36

19

CLIP, AIR HOSE (21.5)

18532-634-670

$7.90

20

SENSOR ASSY., AIR TEMPERATURE

37880-RE1-Z01

$33.83

21

GROMMET, TA SENSOR

37881-P2A-000

$4.70

22

BOLT, FLANGE (6MM)

90111-162-000

$2.78

23

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.57

24

BAND, AIR CLEANER CONNECTING TUBE (62)

90662-HN5-M00

$1.42

25

BAND, AIR CONNECTING TUBE (78)

90678-HN2-830

$4.05

26

BAND, AIR CLEANER CONNECTING TUBE (96)

90696-HN2-830

$5.50

27

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

$7.52
