Description

Price

3

FRAME YR256M (MAT AXIS ORANGE METALLIC) | Ross white NH196;

50100-HP1-601ZE

Unavailable

5

FRAME, RR. NHA86M (MAT BALLISTIC BLACK) | Ross white NH196;

50200-HP1-840ZD

Unavailable

6

STAY, CARRY PIPE

50221-HP1-600

$5.07

7

CUSHION, RR. FENDER

50234-HP1-000

$12.97

9

HANGER, FR. ENGINE

50351-HP1-600

$9.44

10

HANGER, R. ENGINE (UPPER)

50353-HP1-600

$20.20

11

HANGER, L. ENGINE (UPPER)

50354-HP1-600

$20.20

12

RUBBER B, STOPPER

50354-428-000

$2.78

13

GUARD, ENGINE

50360-HP1-600

$21.03

14

COLLAR, ENGINE HANGER (UPPER)

50531-HP1-600

$9.09

15

COLLAR, ENGINE HANGER

50532-HP1-600

$7.75

16

STAY, R. RR. FENDER SUPPORT

80107-HP1-600

$21.24

17

STAY, L. RR. FENDER SUPPORT

80108-HP1-600

$22.03

18

PIPE, FR. CARRY

81150-HP1-600

$133.65

19

PIPE, CARRIER

81200-HP1-600

Unavailable

20

BOLT, FLANGE (10X182)

90103-HP1-000

$8.14

21

BOLT, RR. FRAME SOCKET

90107-HP1-000

$3.22

22

BOLT, FLANGE (6MM)

90111-187-000

$7.70

23

BOLT, UBS (8X33)

90112-413-000

$3.83

24

BOLT, FLANGE (8X16)

90123-MEN-670

$2.25

25

BOLT, FLANGE (8X22)

90125-KZ4-J40

$2.06

26

JOINT, BREATHER TUBE

90652-HF7-003

$9.13

27

CLIP, CABLE (20MM)

90690-GHB-661

$2.11

28

CLIP, CABLE (25MM)

90690-GHB-671

$2.11

29

STRAP, WIRE HARNESS (25MM) (BLACK)

90690-SA0-003

$7.68

31

NUT, FLANGE (10MM)

94050-10000

$1.74

32

PIN, LOCK (10MM)

94251-10000

$1.22

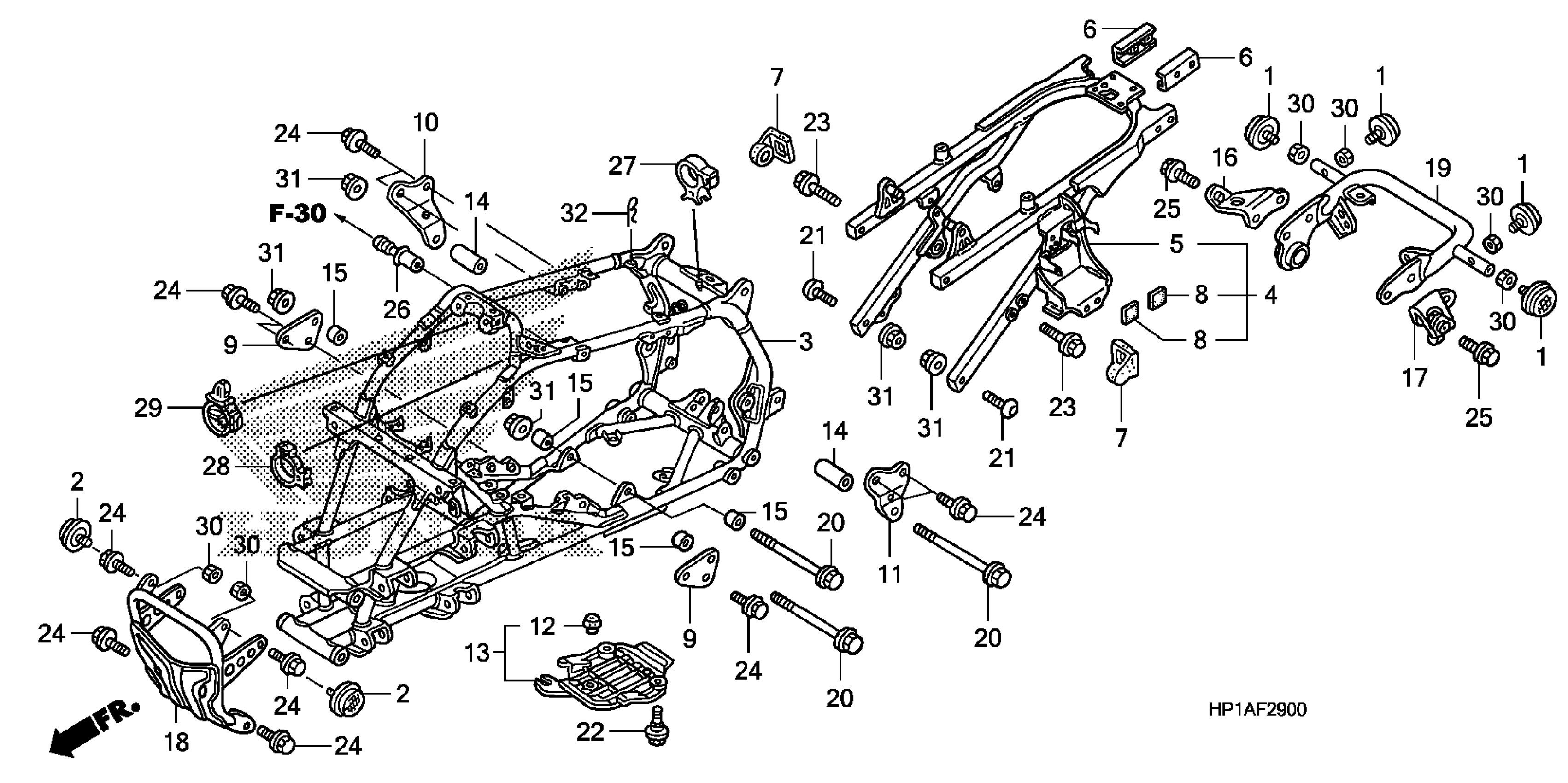

Honda TRX450R3A (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE32E-9K200001 TO JH2TE32E-9K299991 FRAME Diagram
