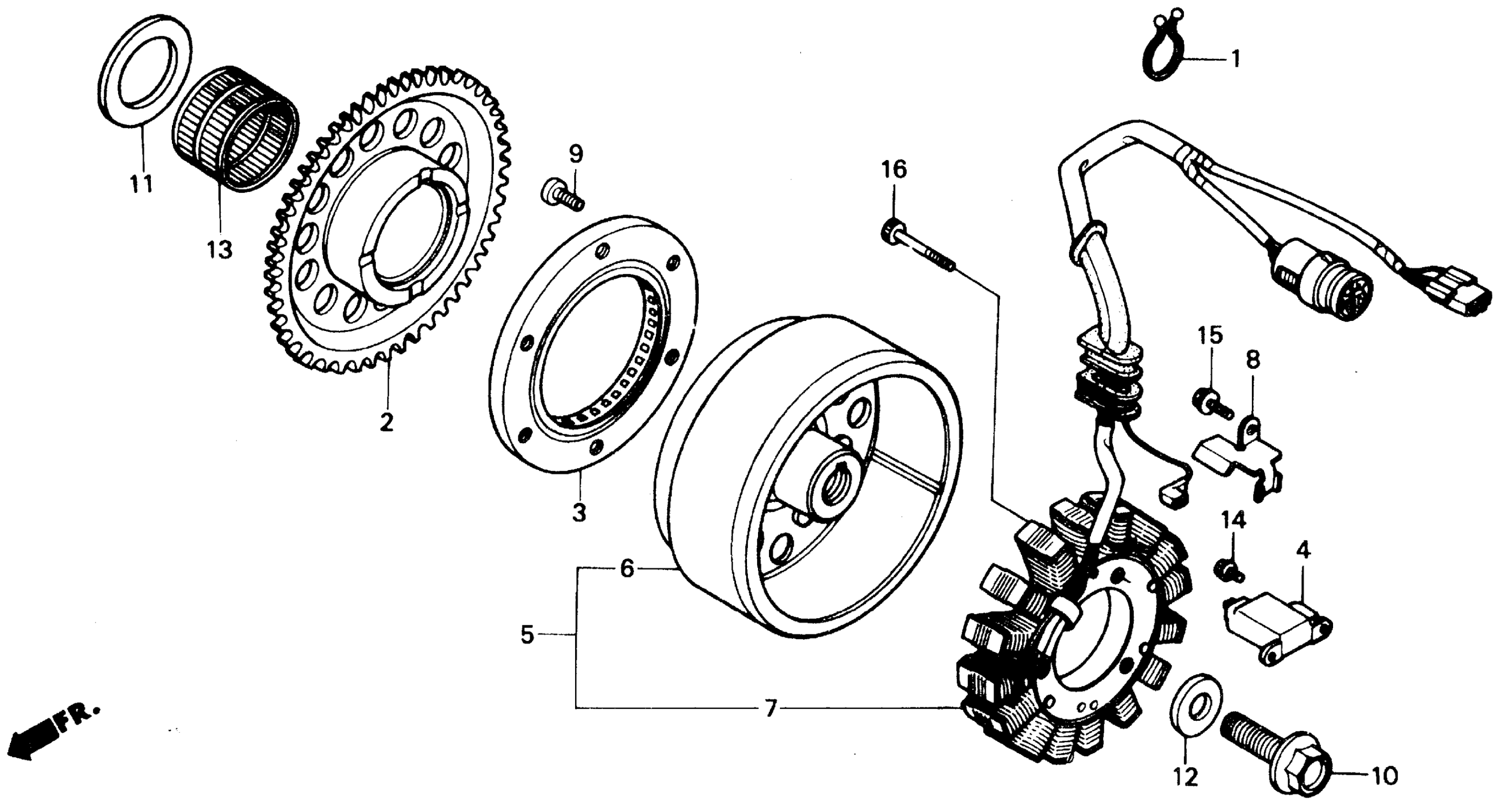

Honda TRX300A (91) FOURTRAX 300, USA, VIN# 478TE140-MA300001 TO 478TE140-MA307886 ALTERNATOR Diagram

CLIP, TUBE (26)

17916-PE1-671

Unavailable

GEAR, STARTING DRIVEN (70T)

28110-HC4-000

Unavailable

CLUTCH, STARTER (OUTER) (NOT AVAILABLE) This part replaces 28125-HC4-003.

28125-HC4-014

Unavailable

GENERATOR ASSY., PULSE (TEC)

30300-HA0-033

$38.96

GENERATOR ASSY., FLYWHEEL TYPEA.C. (NOT AVAILABLE)

31100-HC4-750

Unavailable

FLYWHEEL (MITSUBA) (NOT AVAILABLE)

31110-HC4-013

Unavailable

STATOR (18WDGS)

31120-HC4-750

Unavailable

CLAMP, WIRE (NOT AVAILABLE)

32111-HC4-000

Unavailable

BOLT, SOCKET (6X20)

90010-HC4-000

$2.48

BOLT, FLANGE (12X45) This part replaces 90023-HA7-670.

90024-MT3-000

Unavailable

BOLT, FLANGE (12X45) This part replaces 90023-428-000.

90024-MT3-000

Unavailable

BOLT, FLANGE (12X45)

90024-MT3-000

Unavailable

WASHER, PLAIN (26X40X2.6)

90402-KM1-670

$9.05

WASHER (12X30X4.5) This part replaces 90403-HC4-000.

90401-KK9-960

Unavailable

BEARING, NEEDLE (26X31X24) (KOYO)

91102-HC4-004

Unavailable

BOLT, SOCKET (5X12)

90089-KR0-000

$2.92

BOLT, FLANGE (6X12)

95701-06012-08

$1.57

BOLT, SOCKET (6X28) (NOT AVAILABLE)

96700-06028-00

$4.03
