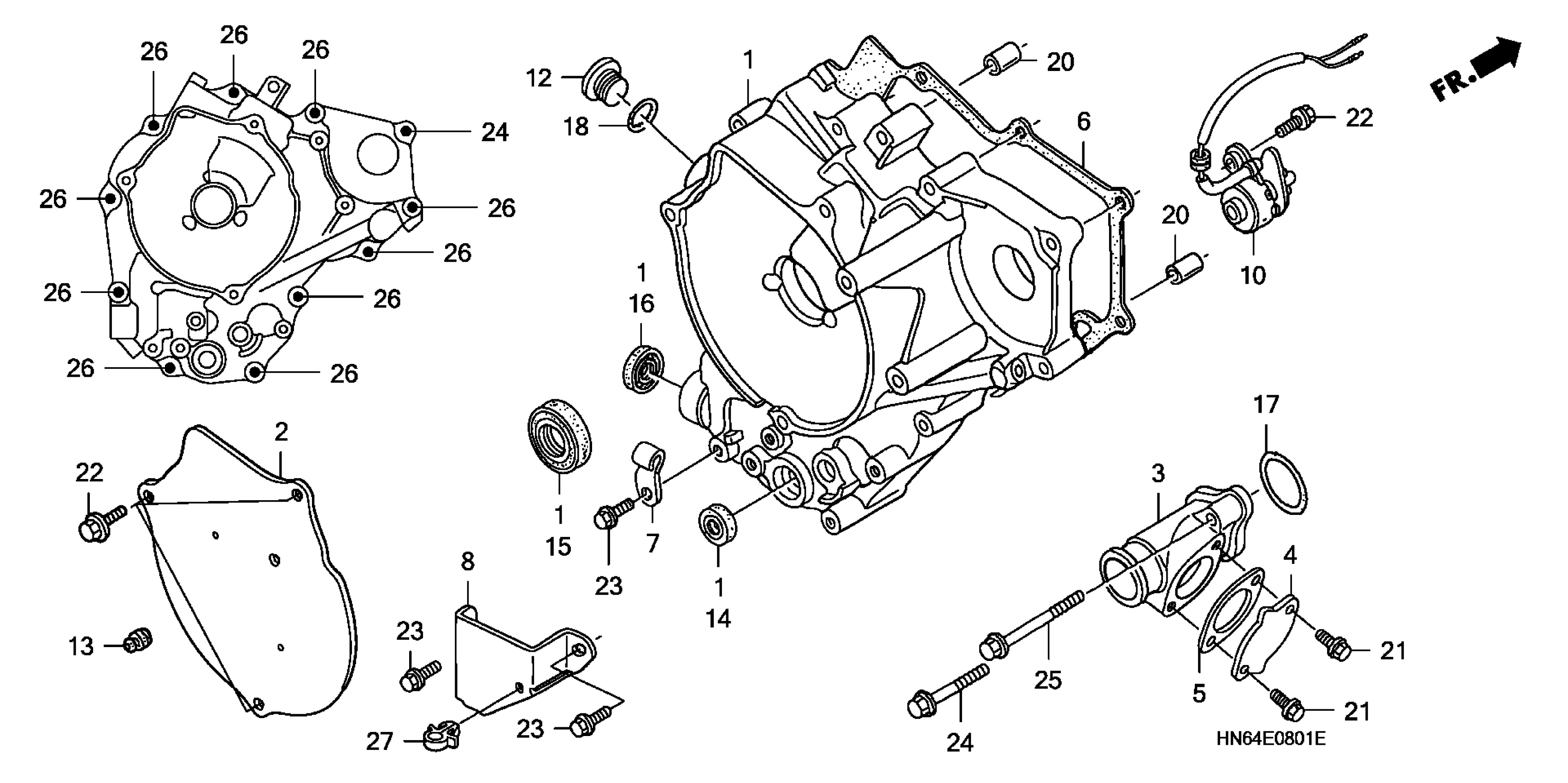

Honda TRX250EXA (03) SPORTRAX 250EX, USA, VIN# 478TE270-34200001 TO 478TE270-34299999 REAR CRANKCASE COVER ('03-) Diagram

#

Description
Price

1

COVER, RR. CRANKCASE

11340-HM8-A40

$152.57

2

SUB-COVER, RR.

11350-HN6-000

$17.09

3

PROTECTOR, COUNTERSHAFT

11355-HM8-A40

$50.38

4

CAP, SPEED SENSOR

11356-HN5-670

$3.68

5

GASKET, SPEED SENSOR INSULATOR

11357-HM8-000

$2.11

6

GASKET, RR. CRANKCASE COVER

11395-HM8-A40

$14.50

7

HOLDER, REVERSE STOPPER WIRE

24866-HM8-A40

$3.08

8

PROTECTOR, REVERSE LEVER

24880-HM8-A40

Unavailable

10

SWITCH ASSY., CHANGE

35759-HM8-A41

Unavailable

12

CAP (14MM)

90084-KY2-000

$15.33

13

RUBBER, NUMBER BRACKET CUSHION

90899-MB2-000

$3.68

14

OIL SEAL (12X22X5)

91201-965-000

$4.03

15

OIL SEAL (22X32X7) (ARAI)

91202-HB3-003

$9.56

16

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.45

17

O-RING (44.1X2.2) (NOK)

91302-P0Z-003

$6.78

18

O-RING (13.8X2.5)

91303-377-000

$3.40

20

PIN, DOWEL (8X14)

94301-08140

$2.89

21

BOLT, FLANGE (6X12)

95701-06012-00

$2.12

22

BOLT, FLANGE (6X14)

95701-06014-00

$0.97

23

BOLT, FLANGE (6X16)

95701-06016-00

$1.57

24

BOLT, FLANGE (6X25)

95701-06025-00

$1.88

25

BOLT, FLANGE (6X35)

95701-06035-00

$1.97

26

BOLT, FLANGE (6X40)

95701-06040-00

$1.97
