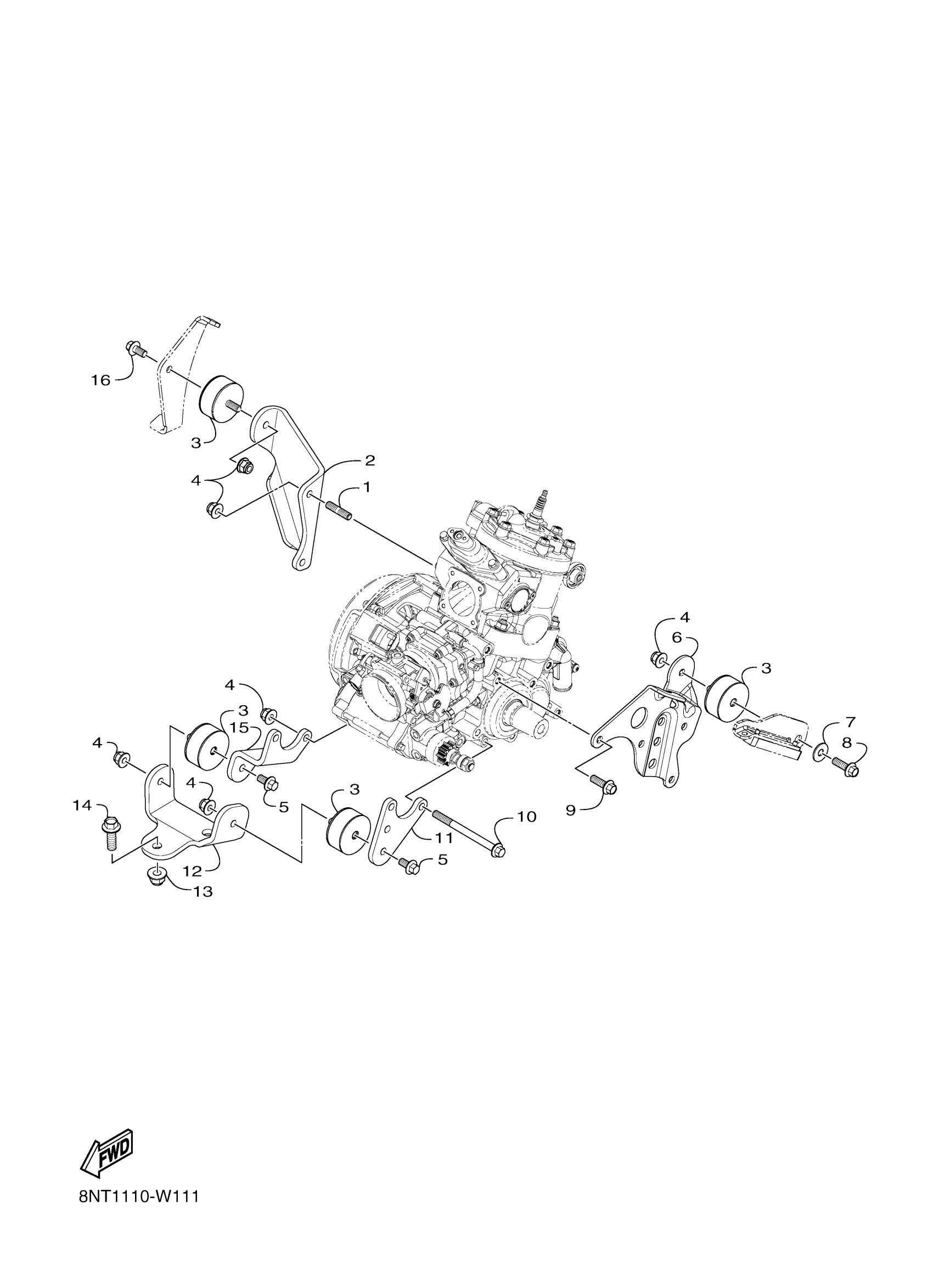

Yamaha TRT4NPB (TRANSPORTER LITE 2UP) 8NX3 2023 ENGINE BRACKET Diagram

BOLT, STUD

8NT-RA124-00-00

$10.95

BRACKET, REAR UPPE

8NT-F1426-00-00

$46.21

DAMPER, RUBBER 1

8NP-F1485-00-00

$24.30

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$0.78

BOLT, FLANGE

8NT-RA127-00-00

Unavailable

BRACKET, REAR UPPE

8NT-F1425-00-00

$39.95

WASHER

8ND-RA429-00-00

Unavailable

BOLT, HEXAGON

8NT-RA105-00-00

$1.67

BOLT, FLG. M8X1.25

8JP-RA186-00-00

$0.48

BOLT, FLANGE

8NT-RA188-00-00

$2.65

BRACKET, FRONT LOW

8NT-F1417-00-00

$16.61

PLATE, ENGINE MOUN

8NT-F145B-00-00

$32.45

NUT, FLG. LOCKING

8JP-RA360-00-00

$1.11

BOLT, FLG. M10X1.2

8JP-RA197-00-00

$1.62

BRACKET, FRONT LOW

8NT-F1418-00-00

$21.15

BOLT, FLANGE

8NT-RA116-00-00

Unavailable
