1976 Kawasaki Trial Frame/frame Fittings Diagram

← All diagrams

Find the part on the Frame/frame Fittings diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

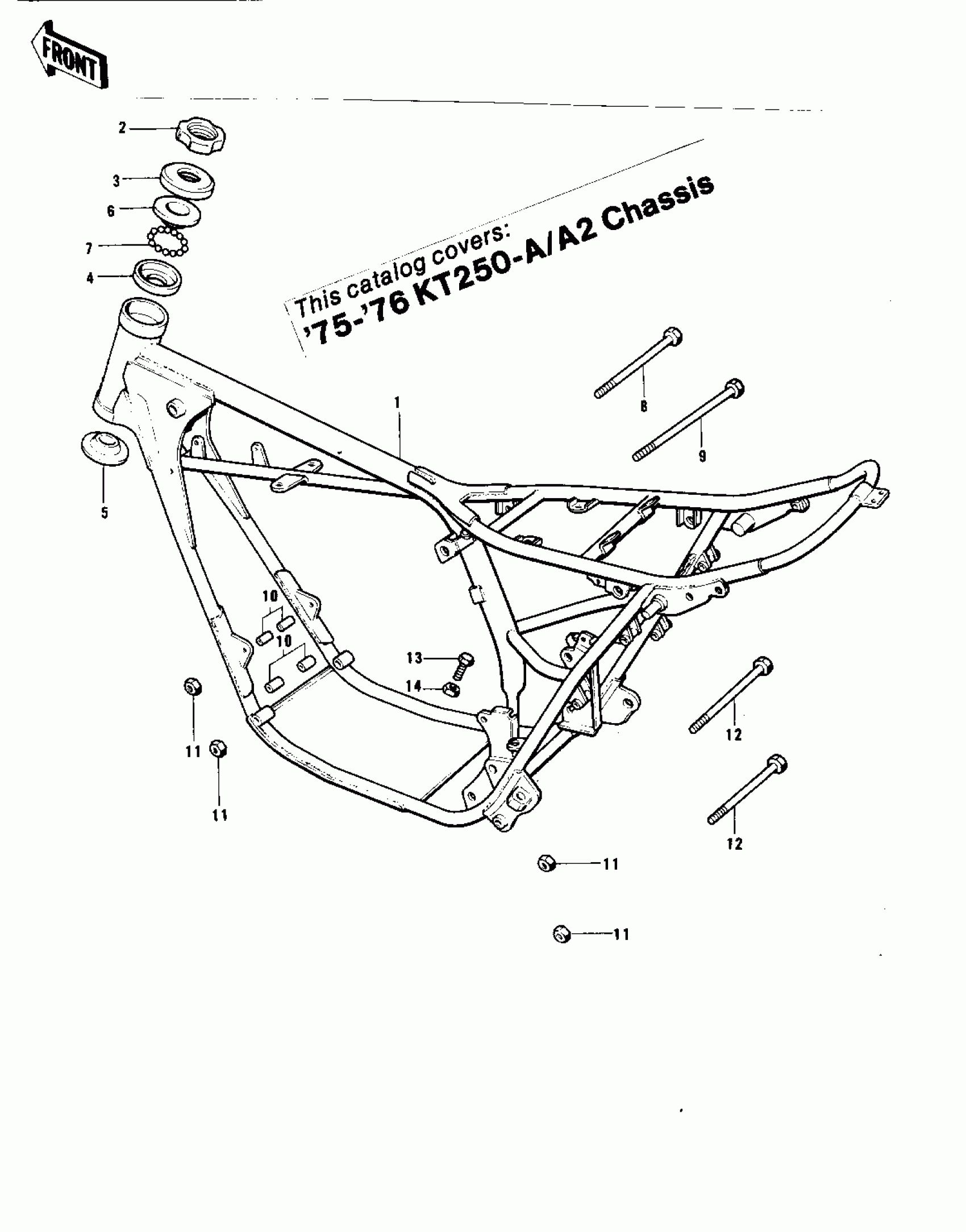

1976 Kawasaki Trial Frame/frame Fittings Diagram

#

Description
Price
Status
Order Qty

1

FRAME

32002-108

Out of stock

2

BOLT, HEX HEAD 10X250

92090-023

Out of stock

3

CAP,STEERING STEM

46098-017

Out of stock

4

CONE,STEERING STEM

92047-018

Out of stock

5

BEARING,STREERIN STEM

92047-016

Out of stock

6

RACE,STEERING STEM BEARING

92048-008

Out of stock

7

BALL-STEEL,1/4

600A0800

Out of stock

8

BOLT,ENG MOUNT,10X138

92003-174

Out of stock

9

BOLT,ENG MOUNT,10X185

92003-175

Out of stock

10

COLLAR,ENGINE MOUNT

92027-237

Out of stock

11

NUT,10MM

92015-1429

Out of stock

12

BOLT

92003-133

Out of stock

13

BOLT-UPSET

112G0630

Out of stock

13

BOLT-UPSET

112G0630

Out of stock

14

NUT 6MM

311B0600

Out of stock
