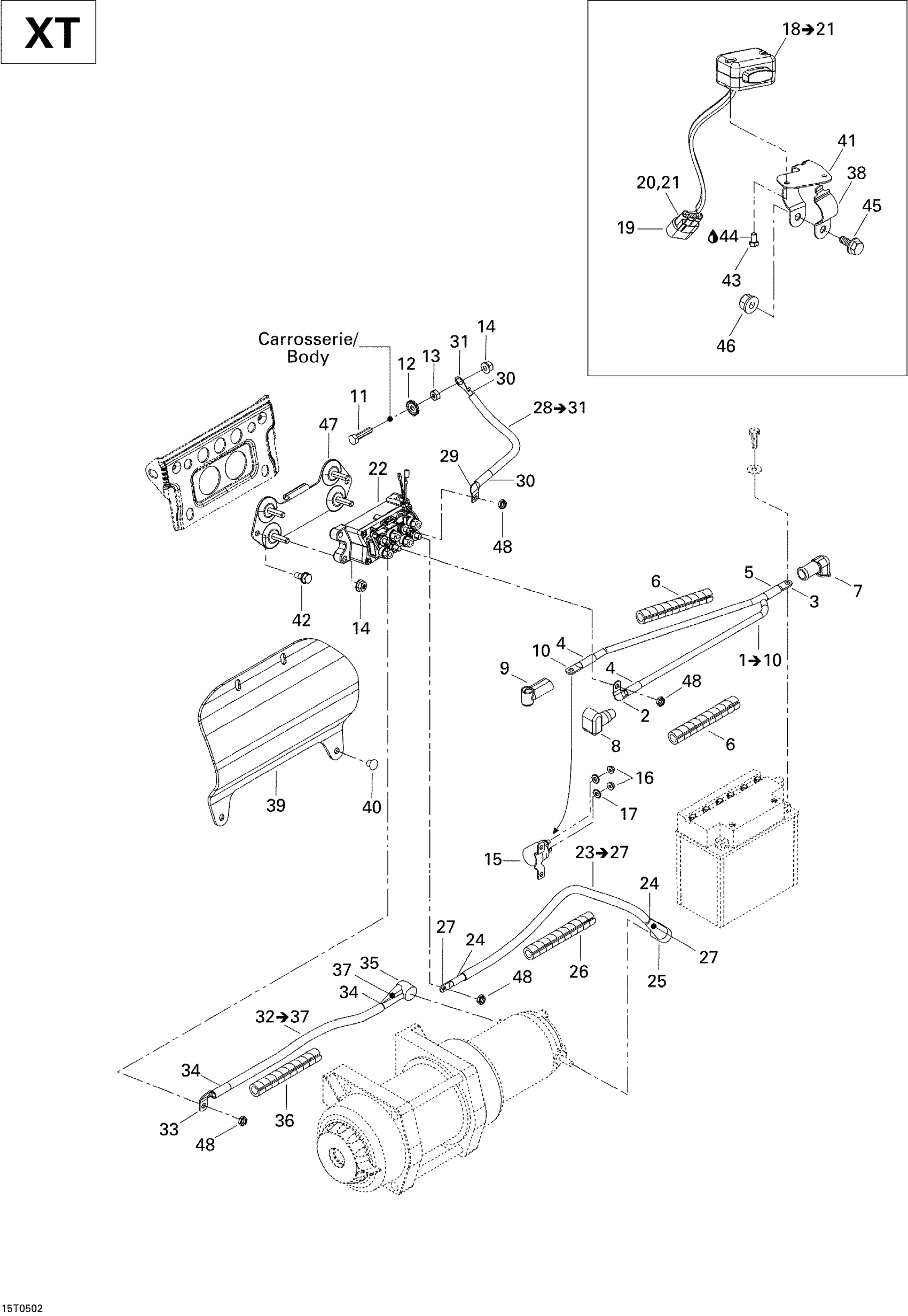

Can-Am Traxter XT, 2005 Electrical Harness, Front Section Diagram

#

Description
Price

1

Battery Starter Relay Cable Ass'y | Includes 1 to 10

710000442

Unavailable

2

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

$7.66

3

FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership

710000478

Unavailable

4

Was 710000483 Heat Shrink Tubing

219704447

$74.58

5

Shrink Tubing | XT Models

275500578

Unavailable

6

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

7

Protector Cap | STD Models

710001829

$9.72

8

Protector Cap | STD Models

710000523

Unavailable

9

Protector Cap

710000527

Unavailable

10

Open Barrel

710000530

Unavailable

11

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

12

External Serrated Lock Washer 6 mm

234461608

$0.92

13

Hex. Nut M6

232061414

$0.44

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Starter Relay

515176011

$51.97

16

Hex. Nut M6

232061414

$0.44

17

Lock Washer Helical M6

234161601

$0.92

18

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

19

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

20

Male Terminal | XT Models

278000222

$2.55

21

Wire Seal

278001065

$6.03

22

Winch Solenoid | XT Models

710001000

$117.66

23

Winch Solenoid | XT Models

710001000

$117.66

24

Was 710000483 Heat Shrink Tubing

219704447

$74.58

25

Protector Cap

710000494

Unavailable

26

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

27

Open Barrel

710000530

Unavailable

28

Frame Solenoid Cable Ass'y | Includes 22 to 25

710000439

Unavailable

29

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

$7.66

30

Was 710000483 Heat Shrink Tubing

219704447

$74.58

31

Open Barrel

710000530

Unavailable

32

Winch Solenoid Cable Ass'y | Includes 26 to 31

710000440

Unavailable

33

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

34

Was 710000483 Heat Shrink Tubing

219704447

$74.58

35

Protector Cap

710000494

Unavailable

36

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

37

Open Barrel

710000530

Unavailable

38

Collar

710000566

Unavailable

39

Protector Pad

710000511

Unavailable

40

Black, Dart

293730011

$0.79

41

Support, Black

710000564

Unavailable

42

Hex. Forming Screw M6 X 10

210261050

$1.42

43

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

44

Loctite 243, 10 ml

293800060

$20.77

45

Hex. Flange Screw M6 X 16

207661654

$1.74

46

Hex. Flange Elastic Nut M6

233261494

$1.26

47

SOLENOID SUPPORT, BLACK - Call your local BRP dealership

710000535

$12.28

48

Elastic Stop Nut M6

232561414

$1.55
