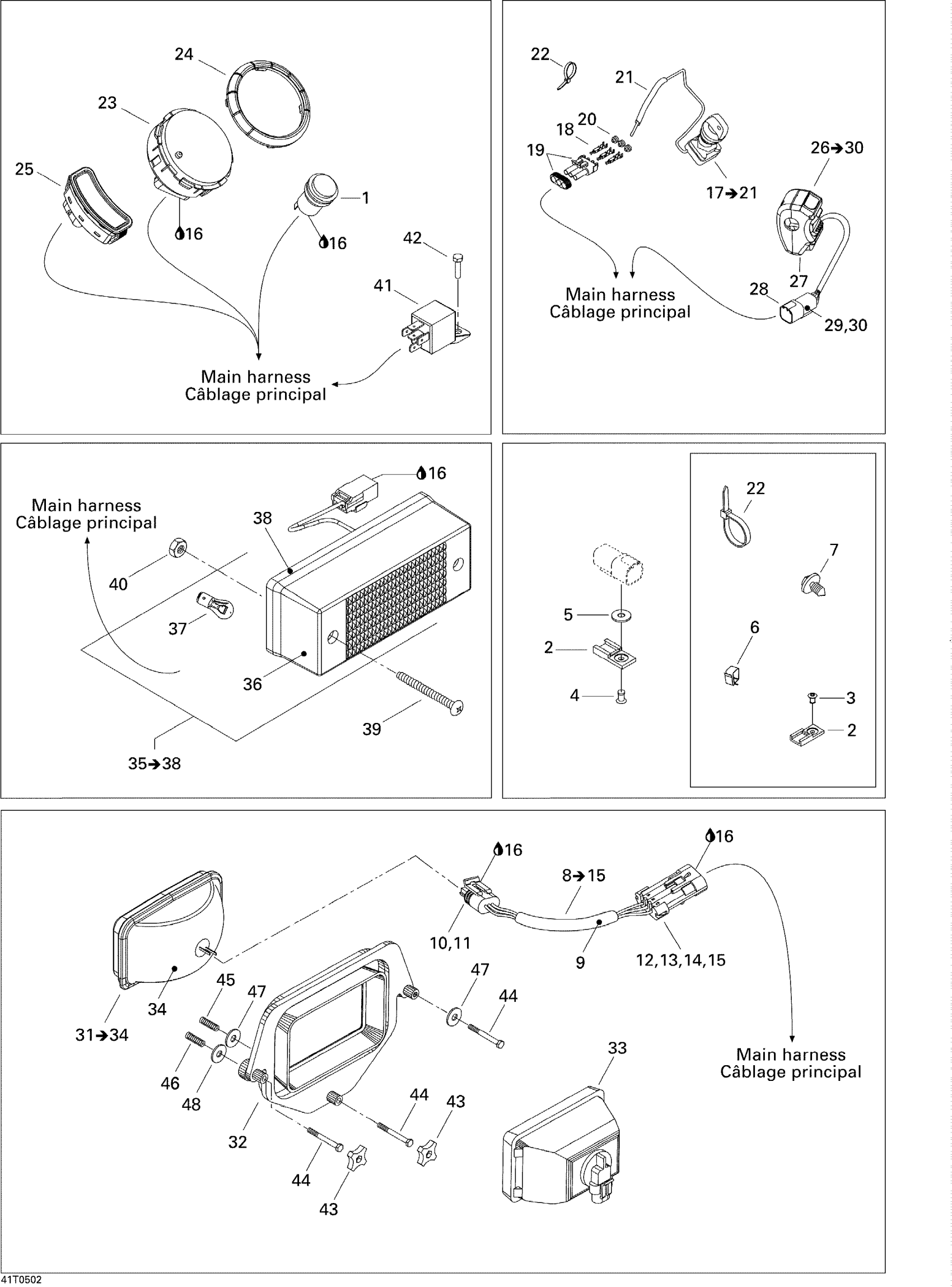

Can-Am Traxter XT, 2005 Electrical Accessories Diagram

#

Description
Price

1

Outlet Power Kit, 12 Volts

861507200

$30.52

2

Clip

270000141

$8.33

3

Pop Rivet 3/16"

390402400

$0.25

4

Pop Rivet 3/16"

390402300

$0.64

5

Washer | DS 650 X

391301600

$0.48

6

Clip

414227300

$1.45

7

Mount Dart

293730040

$0.86

8

Beam Adaptor Ass'y | Includes 8 to 15

710000720

Unavailable

9

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

10

Female Terminal

278001114

$2.55

11

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

$9.97

12

Seal

710000643

$4.12

13

Lock

710000642

$3.85

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

17

Ignition Switch Ass'y | Includes 17 to 21

710000192

Unavailable

17

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

17

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

$15.35

18

Female Terminal

278000223

$2.55

19

Male Housing, 3 Circuits

278000273

$7.59

20

Wire Seal

278000218

$3.48

21

Protector Tube

710000171

Unavailable

22

Tie Wrap 368 mm

293750008

$0.85

22

Tie Wrap 142 mm

293750002

$0.88

22

Tie-Rap 180 mm

414115200

$0.09

23

Speedometer

710000674

Unavailable

24

TRIM RING - Call your local BRP dealership

710000353

Unavailable

25

LH WARNING LIGHT - Call your local BRP dealership

710000592

$105.35

26

Multi-function Switch Ass'y | Includes 26 to 30

710000088

Unavailable

27

BACK COVER - Call your local BRP dealership

710000173

$26.89

28

Male Terminal Housing, 6 Circuits

409015200

Unavailable

29

Male Lock, 6 Circuits

409014600

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

31

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 31 to 34

710000174

Unavailable

32

LAMP SUPPORT - Call your local BRP dealership

705000283

$20.74

33

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

34

BULB - Call your local BRP dealership

710000176

Unavailable

35

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$92.28

36

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

37

Bulb

520000758

$7.49

38

GASKET - Call your local BRP dealership

710000129

$8.43

39

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

$0.91

40

Hex. Flange Elastic Nut M5

233251414

$1.66

41

Relay | DS 650 X

710010053

Unavailable

42

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

43

Handle

572106600

$9.31

44

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

$1.09

45

SPRING - Call your local BRP dealership

710000285

$5.35

46

Spring

517168600

$6.91

47

Flat Washer 4 mm, Stainless

234042600

$0.92

48

Flat Washer 4 mm

234040600

$0.46
