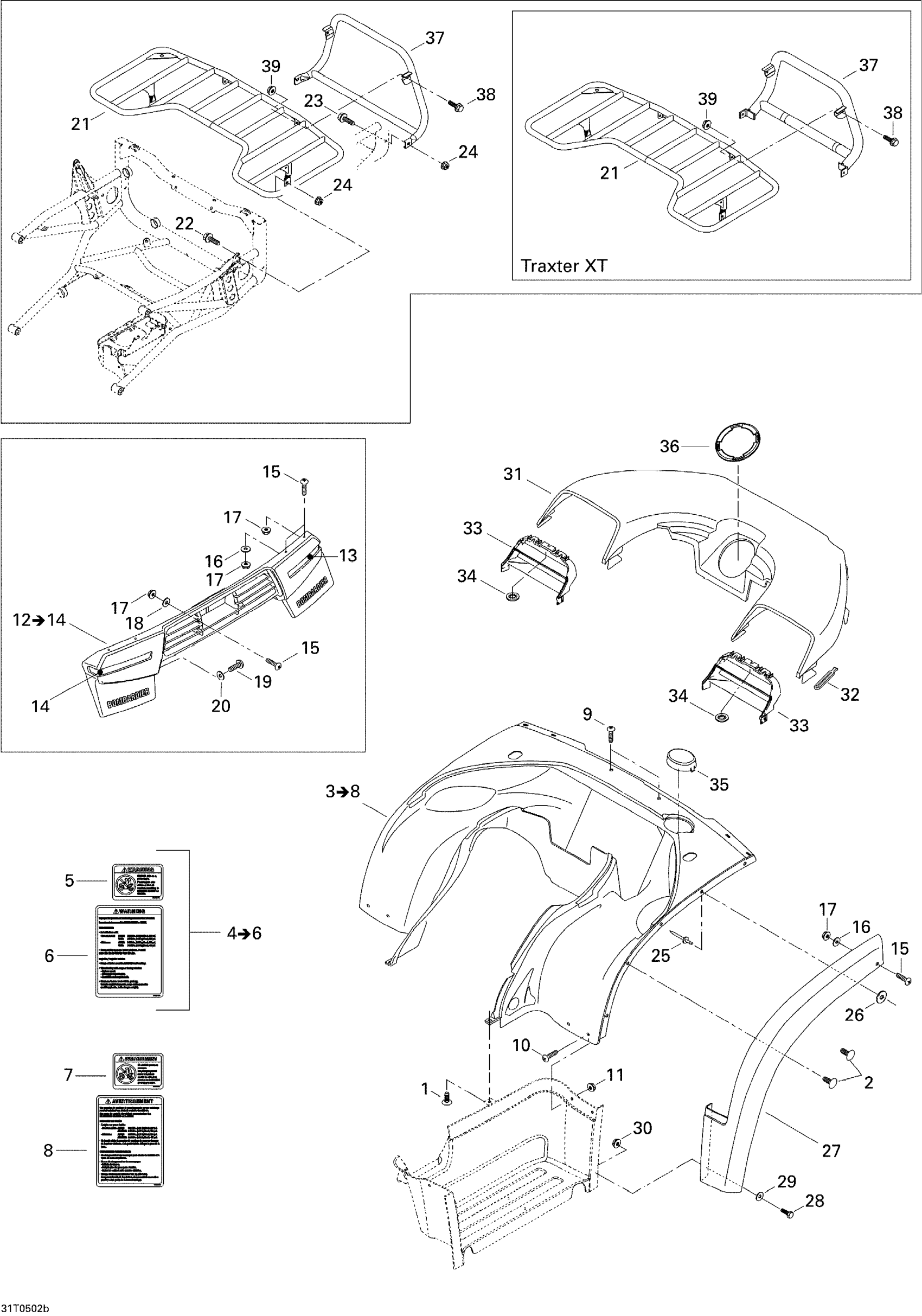

Can-Am Traxter XT, 2005 Body And Accessories (Rear) Diagram

#

Description
Price

1

Black, Dart

293730011

$0.79

2

Black, Dart

293730011

$0.79

3

Rear Fender Kit, yellow | Yellow, Includes 3 To 8

703500455

Unavailable

3

Rear Fender Kit, red | Red, Includes 3 To 8

703500456

Unavailable

3

Rear Fender Kit, green | Green, Includes 3 To 8

703500457

Unavailable

4

WARNING DECAL ASS'Y - Call your local BRP dealership | English version, Includes 4 To 6

704900917

Unavailable

5

WARNING DECAL, PASSENGER - Call your local BRP dealership

704900005

Unavailable

6

WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership | English version

704900918

Unavailable

7

Warning Decal, Passenger, French | French Version

704900006

Unavailable

8

Warning Label, tire Pressure | French version

704900919

Unavailable

9

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

10

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

REAR FASCIA ASS'Y, BLACK - Call your local BRP dealership | Includes 12 To 14

703500012

$249.97

13

RH Rear Reflector

704900085

Unavailable

14

LH Rear Reflector

704900086

Unavailable

15

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

16

Flat Washer

224060201

$1.15

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

Flat Washer

224060201

$1.15

19

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

20

Flat Washer

224061121

$0.44

21

Rear Luggage Rack, Black

705000622

Unavailable

22

Hex. Flange Screw M8 X 20

207682044

$0.92

23

Hex. Flange Screw M8 X 50

207685044

$1.39

24

Hex. Flange Elastic Nut M8

233281414

$1.14

25

Tuflok Plastic Rivet

293150230

$1.21

26

Flat Washer 8 mm

234082410

$1.11

27

RH Rear Mudguard

705001574

Unavailable

27

LH Rear Mudguard

705001575

Unavailable

28

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

29

Flat Washer

224060201

$1.15

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

31

Fender Cover, Yellow | Yellow

705000179

Unavailable

31

Fender Cover, Viper Red | Red

705000576

Unavailable

31

Fender Cover, Laurentian Green | Green

705000831

Unavailable

32

Windshield Latch

570023800

$3.58

33

RH Grill, Black

705000181

Unavailable

33

LH Grill, Black

705000180

Unavailable

34

PUSH NUT - Call your local BRP dealership

250100000

$0.43

35

COVER, BLACK - Call your local BRP dealership

705000132

$6.12

36

CAP - Call your local BRP dealership

705000207

$7.66

37

Rear Bumper, Black | Traxter 5 Speed STD

705000602

Unavailable

37

Rear Bumper, Black | Traxter 5 Speed XT

705001267

Unavailable

38

Hex. Flange Screw M8 X 25

207682544

$0.90

39

Hex. Flange Elastic Nut M8

233281414

$1.14
