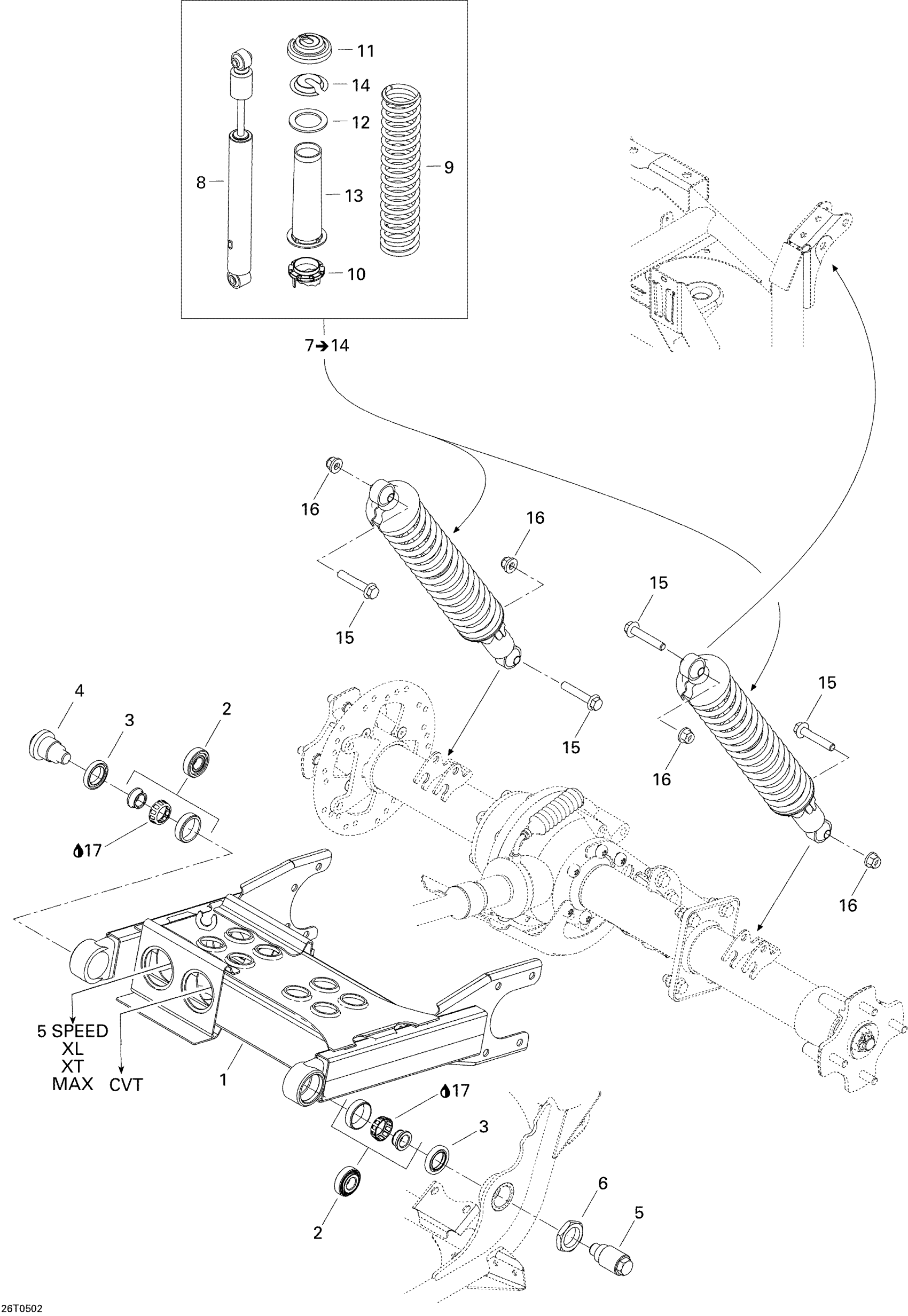

Can-Am Traxter XT, 2005 Rear Suspension Diagram

#

Description
Price

1

SWING ARM, BLACK - Call your local BRP dealership

706000298

$286.89

2

CONE BEARING - Call your local BRP dealership

706000169

Unavailable

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

$33.05

6

HEX. JAM NUT - Call your local BRP dealership

706000006

$13.05

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Rear Shock

706000380

Unavailable

9

Rear Spring, Yellow

706000301

Unavailable

10

Adjuster Ring

706002356

$17.66

11

Spring Stopper

706200881

$10.30

12

SPRING SEAT - Call your local BRP dealership

706000533

$9.74

13

PROTECTOR - Call your local BRP dealership

503190436

$13.83

14

Cap

706200785

$4.42

15

Hex. Flange Screw M10 X 55

207605544

$2.78

16

Hex. Flange Elastic Nut M10

233201414

$1.26

17

Synthetic Grease, 400 G

293550010

Unavailable
