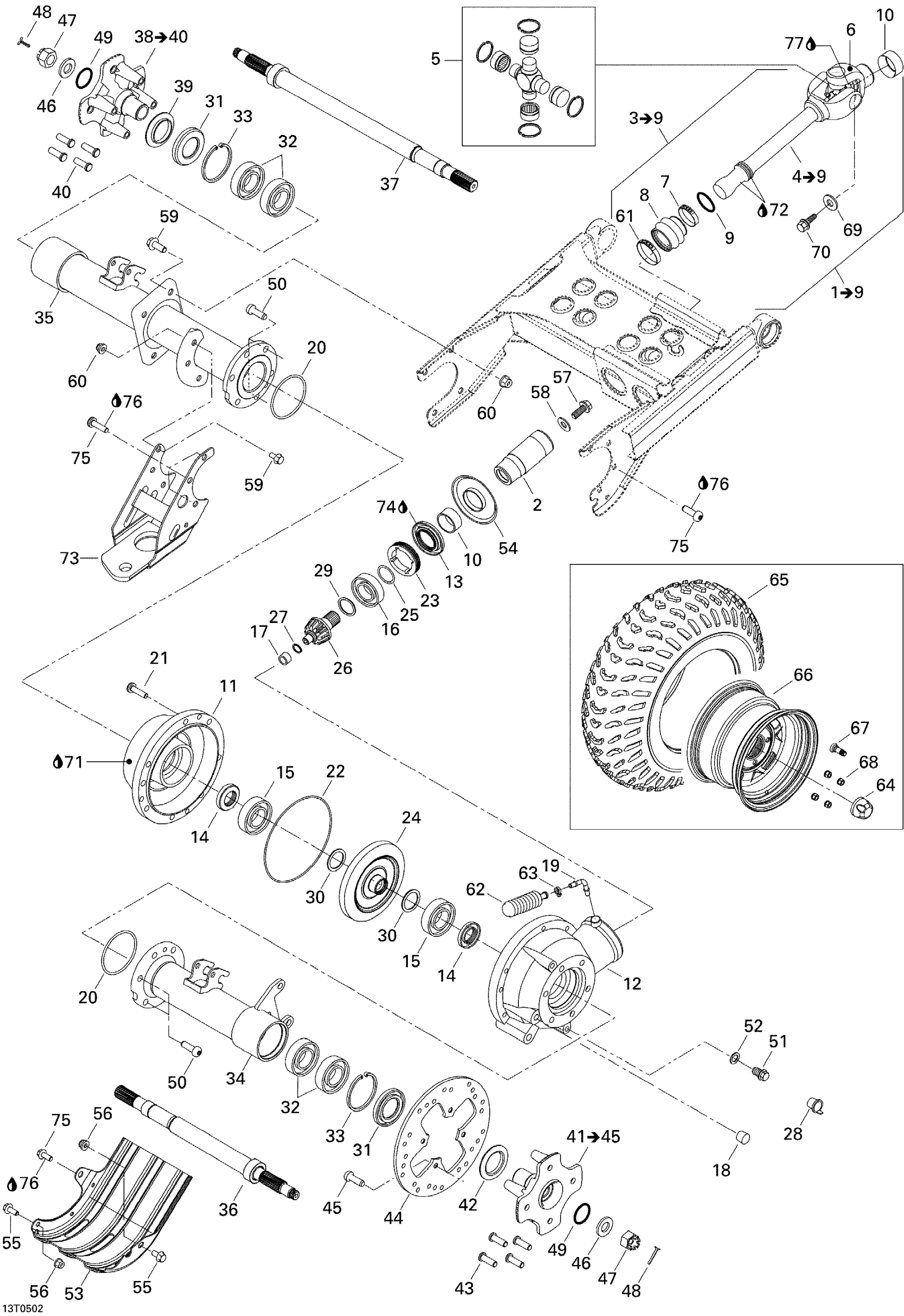

Can-Am Traxter XT, 2005 Drive System, Rear Diagram

#

Description
Price

1

Drive Axle Ass'y | Includes 1 to 9

705500401

Unavailable

2

Front Bushing Shaft Kit | 4X4

703500678

$101.46

3

REAR DRIVE AXLE ASS'Y - Call your local BRP dealership | Includes 3 to 9

705500405

Unavailable

4

REAR DRIVE AXLE ASS'Y - Call your local BRP dealership | Includes 3 to 9

705500405

Unavailable

5

Universal Joint

715900326

$64.15

6

Fixe Yoke

715900101

$26.84

7

Collar | 4X4

705400148

Unavailable

8

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

9

SEALING RING - Call your local BRP dealership

705500315

Unavailable

10

Wear Ring | 4X4

705400036

$24.60

11

Rear Cover

705500175

Unavailable

12

PINION REAR COVER - Call your local BRP dealership

705500512

Unavailable

13

Oil Seal

705500248

Unavailable

14

Gasket | 4X4

705401618

$17.13

15

Ball Bearing | 4X4

705401606

$47.73

16

Ball Bearing | 4X4

705500260

$29.82

17

Needle Bearing | 4X4

705500261

Unavailable

18

Drain Plug | 4X4

705500894

$10.24

19

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

20

O-RING - Call your local BRP dealership

705500263

Unavailable

21

Screw | 4X4

705401601

$8.67

22

Seal | 4X4

705500265

$15.64

23

Nut | 4X4

705401603

$33.55

24

GEAR, 36 TEETH - Call your local BRP dealership

705500416

Unavailable

25

O-Ring | 4X4

705500267

$6.06

26

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

27

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

28

PROTECTION PLUG - Call your local BRP dealership

705500516

Unavailable

29

Pinion Gear Shim 1.67 mm

705502061

$15.64

30

Shim | 4X4

705401604

$51.46

31

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

32

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

33

RETAINING RING - Call your local BRP dealership

705500249

Unavailable

34

RH AXLE TUBE - Call your local BRP dealership

705500250

Unavailable

35

LH AXLE TUBE - Call your local BRP dealership

705500182

Unavailable

36

RH AXLE - Call your local BRP dealership

705500183

Unavailable

37

LH AXLE - Call your local BRP dealership

705500184

Unavailable

38

Wheel Hub Ass'y | Includes 54 to 56

705400330

Unavailable

39

WEAR RING - Call your local BRP dealership

705500100

Unavailable

40

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

41

RH REAR WHEEL HUB ASS'Y - Call your local BRP dealership | Includes 41 to 45

705500634

Unavailable

42

WEAR RING - Call your local BRP dealership

705500100

Unavailable

43

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

44

Brake Disc

705600343

Unavailable

45

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

46

WASHER - Call your local BRP dealership

250200019

Unavailable

47

Hex. Flange Castellated Nut M18

232291413

$3.24

48

Cotter Pin

250400036

$2.00

49

O-RING - Call your local BRP dealership

705500271

Unavailable

50

Torx Screw M10 X 30

250000085

Unavailable

51

Fill Level Plug | 4X4

705500504

$8.73

52

Copper Washer | 4X4

705500506

$0.42

53

Differential Protector, Black

705500565

Unavailable

54

JOINT PROTECTOR - Call your local BRP dealership

705500214

Unavailable

55

Hex. Flange Screw M8 X 16

207681644

$3.90

56

Hex. Flange Nut M8

233181414

$1.04

57

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

58

Flat Washer M10 | 4X4

250200014

$1.34

59

Hex. Flange Screw M10 X 25

207602544

$1.52

60

Hex. Flange Elastic Nut M10

233201414

$1.45

61

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

62

Rubber Bellow | 4X4

705400552

$5.84

63

Tie Wrap 94 mm | 4X4

293750001

$0.96

64

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

65

Rear Tire | Traxter 5 Speed XT

705501770

$177.58

65

Rear Tire | Traxter 5 Speed STD

705500609

Unavailable

66

Rear Rim

705500555

Unavailable

67

Rim Valve With Cap

705400193

$6.49

68

Steel Wheel Nut

250100042

$3.07

69

Washer

211200041

$3.01

70

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.00

71

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$15.64

72

Graisse *Grease

293550062

$14.90

73

Trailer Hook, Black

705500244

Unavailable

74

Synthetic Grease, 400 G

293550010

Unavailable

75

TORX SCREW M10 X 33 - Call your local BRP dealership

250000190

Unavailable

76

Loctite 609, 10 ml

413703100

$23.85

77

Loctite 271, 10 ml

293800005

$23.85
