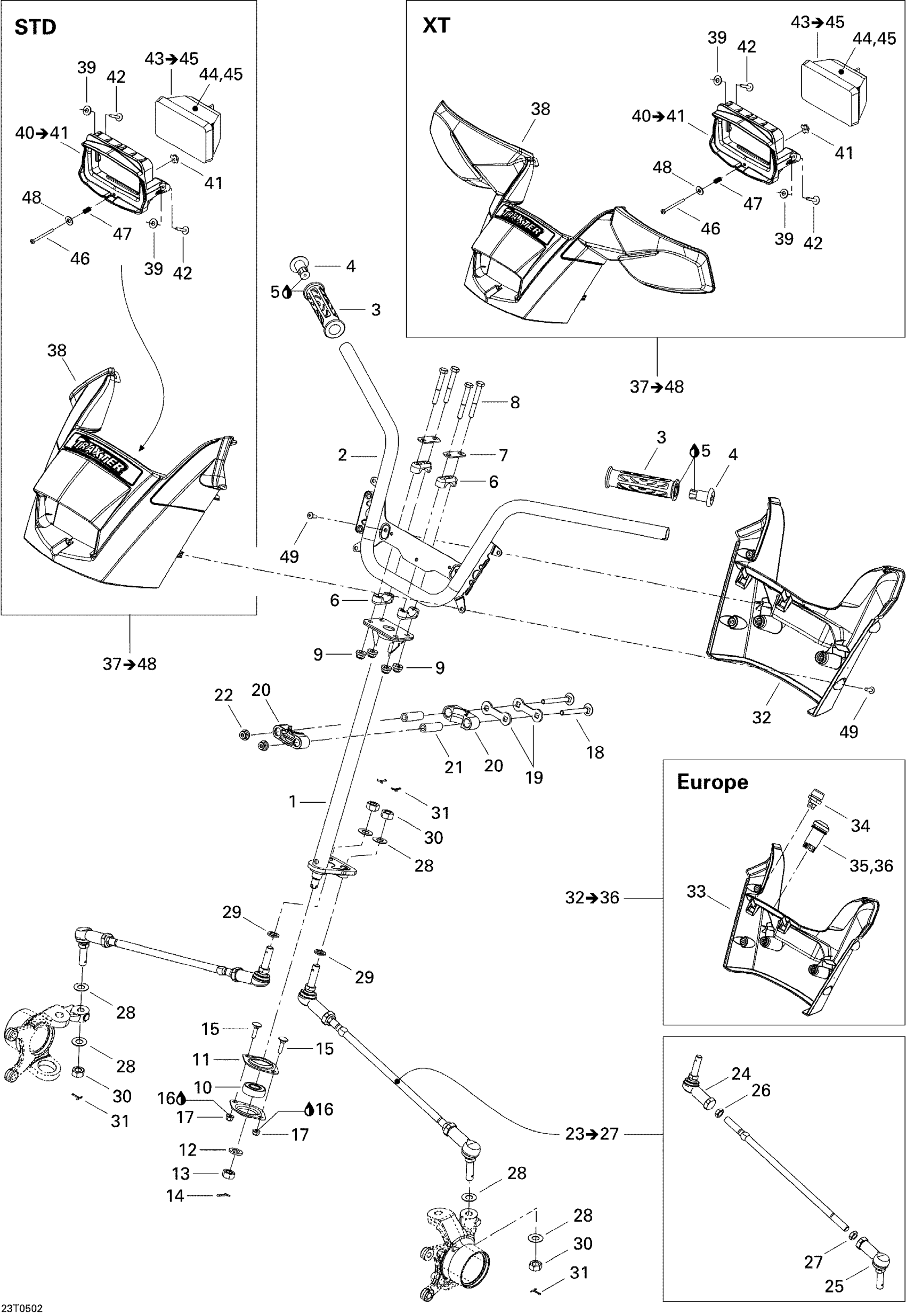

Can-Am Traxter XT, 2005 Steering System Diagram

#

Description
Price

1

Main Tube, Black

709400305

Unavailable

2

HANDLE BAR - Call your local BRP dealership

709400300

$82.28

3

Handle Grip

709400493

$14.75

4

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$20.74

7

Stiffner

709400509

$4.43

8

Hex. Screw M8 X 60

207086046

$2.30

9

Hex. Elastic Flange Nut M8

233281416

$1.25

10

Ball Bearing

709400439

$18.43

11

FLANGE, BEARING - Call your local BRP dealership

709400152

$8.83

12

Flat Washer 12 mm

234021410

$0.68

13

Nut M12

250100099

$1.64

14

Cotter Pin

211400017

$0.25

15

Carriage Bolt M6 X 25

207762544

$1.39

16

Loctite 243, 10 ml

293800060

$20.77

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

Carriage Bolt M8 X 70

207787044

$1.11

19

Stopper Plate

506150600

$4.15

20

HALF-HOUSING - Call your local BRP dealership

709400034

Unavailable

21

Housing Bushing

506150500

$7.49

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

Unavailable

24

RH Ball Joint

709402302

$35.35

25

LH Ball Joint

709402303

$35.35

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Hardened Washer

706200281

$2.34

29

Washer

503189276

$3.20

30

Nut M12

250100099

$1.64

31

Cotter Pin

211400013

$0.32

32

REAR STEERING COVER - Call your local BRP dealership

709400252

Unavailable

32

Rear Steering Cover Ass'y | Europe / Includes 32 to 36

709400336

Unavailable

33

REAR STEERING COVER - Call your local BRP dealership

709400252

Unavailable

34

Push Button

415130372

$124.99

35

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

710000367

$73.05

36

EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership | Europe

710000661

Unavailable

37

FRONT STEERING COVER ASS'Y - Call your local BRP dealership | Traxter XT 5 Speed / Includes 37 to 48

709400333

Unavailable

37

FRONT STEERING COVER ASS'Y - Call your local BRP dealership | Traxter STD 5 Speed / Includes 37 to 48

709400334

$126.12

38

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Washer M5

250200025

$0.61

40

Light Stand Ass'y | Includes 40 to 41

709400296

Unavailable

41

T-NUT, M4 - Call your local BRP dealership

250100030

$6.31

42

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

43

CENTRAL HEADLAMP ASS'Y - Call your local BRP dealership | Includes 43 to 45

710000712

Unavailable

44

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

45

BULB - Call your local BRP dealership

710000762

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Spring

517168600

$6.91

48

Washer M5

250200025

$0.61

49

Torx Screw K50 X 16

250000720

$1.39
