Description

Price

1

RH UPPER ARM, BLACK - Call your local BRP dealership

706200318

Unavailable

2

Bushing

706200181

$3.68

3

Sleeve

706201587

$4.60

4

LH Upper Arm, Black

706200320

Unavailable

5

Hex. Flange Screw M10 X 70

207607046

$2.91

6

Hex. Flange Elastic Nut M10

233201436

$1.74

7

Conical Spring Washer 10 mm

234201474

$1.39

8

RH LOWER ARM, BLACK - Call your local BRP dealership

706200360

$148.43

9

Grease Fitting

408200700

$2.80

10

Synthetic Grease, 400 G

293550010

Unavailable

11

LH LOWER ARM, BLACK - Call your local BRP dealership

706200365

$148.43

12

FRONT SHOCK - Call your local BRP dealership

706200429

Unavailable

13

Yellow Front Spring | Traxter 5-Speed STD

706200467

Unavailable

13

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | Traxter 5-Speed XT

706200470

$46.12

14

SPRING GUIDE - Call your local BRP dealership

706200460

$3.82

15

Spring Stopper

706200881

$10.30

16

WASHER - Call your local BRP dealership

706000375

$7.66

17

PROTECTOR - Call your local BRP dealership

503139800

$6.22

18

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

19

Hex. Flange Elastic Nut M10

233201414

$1.26

20

RH ARM PROTECTOR - Call your local BRP dealership

706200179

$8.43

21

Hex. Flange Screw M6 X 16

207661644

$0.61

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

23

LH ARM PROTECTOR - Call your local BRP dealership

706200180

$8.43

24

Ball Joint

706200653

$41.51

25

Hardened Washer

706200281

$2.34

26

Circlip 32 mm

293370009

$1.49

27

Hex. Castellated Nut M12

232221414

$2.61

28

Cotter Pin

211400017

$0.25

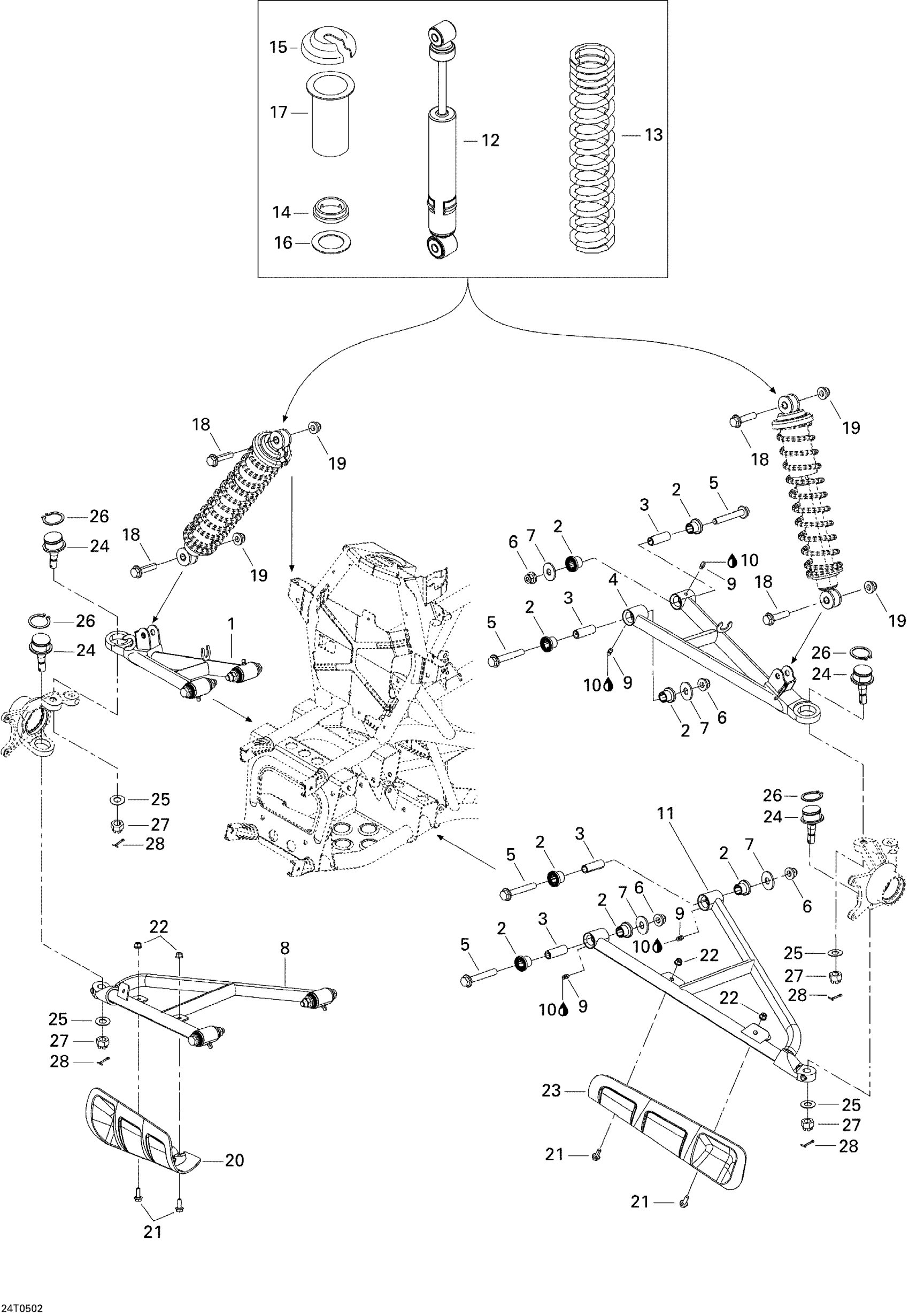

Can-Am Traxter XT, 2005 Front Suspension Diagram
