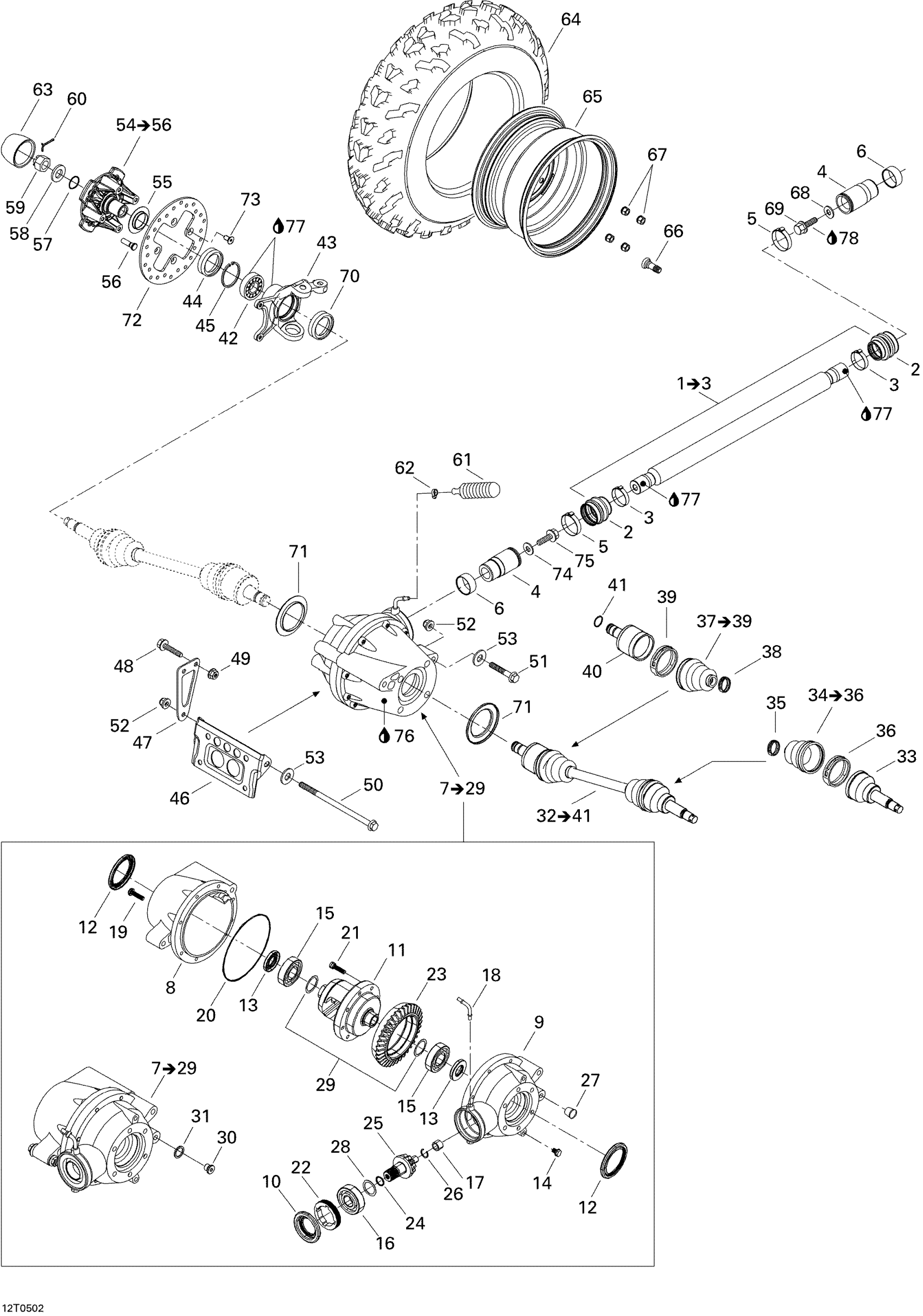

Can-Am Traxter XT, 2005 Drive System, Front Diagram

#

Description
Price

1

Front Drive Axle Ass'y | Includes 1 to 3

705400334

Unavailable

2

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

3

Collar | 4X4

705400148

Unavailable

4

Front Bushing Shaft Kit | 4X4

703500678

$104.58

5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

6

Wear Ring | 4X4

705400036

$25.35

7

Front Differential Ass'y | Includes 7 to 29

705400264

Unavailable

8

Front Cover

705400099

Unavailable

9

PINION REAR COVER - Call your local BRP dealership

705500515

$260.74

10

Oil Seal | 4X4

705401481

$18.43

11

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

12

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

13

Gasket | 4X4

705401618

$17.66

14

Drain Plug | 4X4

705500894

$11.06

15

Ball Bearing | 4X4

705401606

$49.20

16

Ball Bearing | 4X4

705500260

$30.74

17

Needle Bearing | 4X4

705500261

Unavailable

18

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

19

Screw | 4X4

705401601

$9.29

20

Seal | 4X4

705500265

$16.12

21

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

$8.43

22

Nut | 4X4

705401603

$36.89

23

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

$249.20

24

O-Ring | 4X4

705500267

$6.25

25

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

$8.43

27

PROTECTION PLUG - Call your local BRP dealership

705500516

Unavailable

28

Pinion Gear Shim .022"

705500075

Unavailable

29

Shim | 4X4

705401604

$55.35

30

Fill Level Plug | 4X4

705500504

$7.61

31

Copper Washer | 4X4

705500506

$0.36

32

LH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400124

Unavailable

32

RH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400125

$493.82

33

CV JOINT - Call your local BRP dealership

705400093

$193.82

34

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$41.51

35

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

36

Clamp | 4X4

705400180

Unavailable

37

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$41.51

38

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

39

Clamp | 4X4

705400181

Unavailable

40

RH Plunging Joint

705400128

Unavailable

40

LH Plunging Joint

705400129

Unavailable

41

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

42

Ball Bearing

293350150

$52.99

43

RH Knuckle

709400095

Unavailable

43

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable

44

OIL SEAL - Call your local BRP dealership

705500099

$13.82

45

Circlip

293370019

$4.98

46

DIFFENTIAL FRONT BRACKET - Call your local BRP dealership

705400255

$13.05

47

RH Diffential Front Bracket

705400069

Unavailable

48

Hex. Flange Screw M8 X 20

207682044

$0.92

49

Hex. Flange Elastic Nut M8

233281414

$1.14

50

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

51

Hex. Flange Screw M10 X 65

207606536

$3.61

52

Hex. Flange Elastic Nut M10

233201436

$1.74

53

Flat Washer

250200003

Unavailable

54

Wheel Hub Ass'y | Includes 54 to 56

705400330

$188.43

55

WEAR RING - Call your local BRP dealership

705500100

Unavailable

56

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

57

O-RING - Call your local BRP dealership

705500271

Unavailable

58

WASHER - Call your local BRP dealership

250200019

$2.02

59

Hex. Flange Castellated Nut M18

232291413

$2.82

60

Cotter Pin

250400036

$1.74

61

Rubber Bellow | 4X4

705400552

$6.02

62

Tie Wrap 94 mm | 4X4

293750001

$0.83

63

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

64

Front Tire | XT

705400326

$123.82

64

Front Tire | XT

705400326

$123.82

65

FRONT RIM - Call your local BRP dealership

705400290

$63.82

66

Rim Valve With Cap

705400193

$6.69

67

Steel Wheel Nut

250100042

$2.48

68

Washer

211200041

$2.63

69

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

70

Oil Seal | 4X4

293250090

$23.05

71

Wear Ring

705400016

Unavailable

72

Disc Brake 205 mm

705600342

Unavailable

73

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

74

Flat Washer M10 | 4X4

250200014

$1.17

75

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

76

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

77

Synthetic Grease, 400 G

293550010

Unavailable

78

Loctite 271, 10 ml

293800005

$20.77
