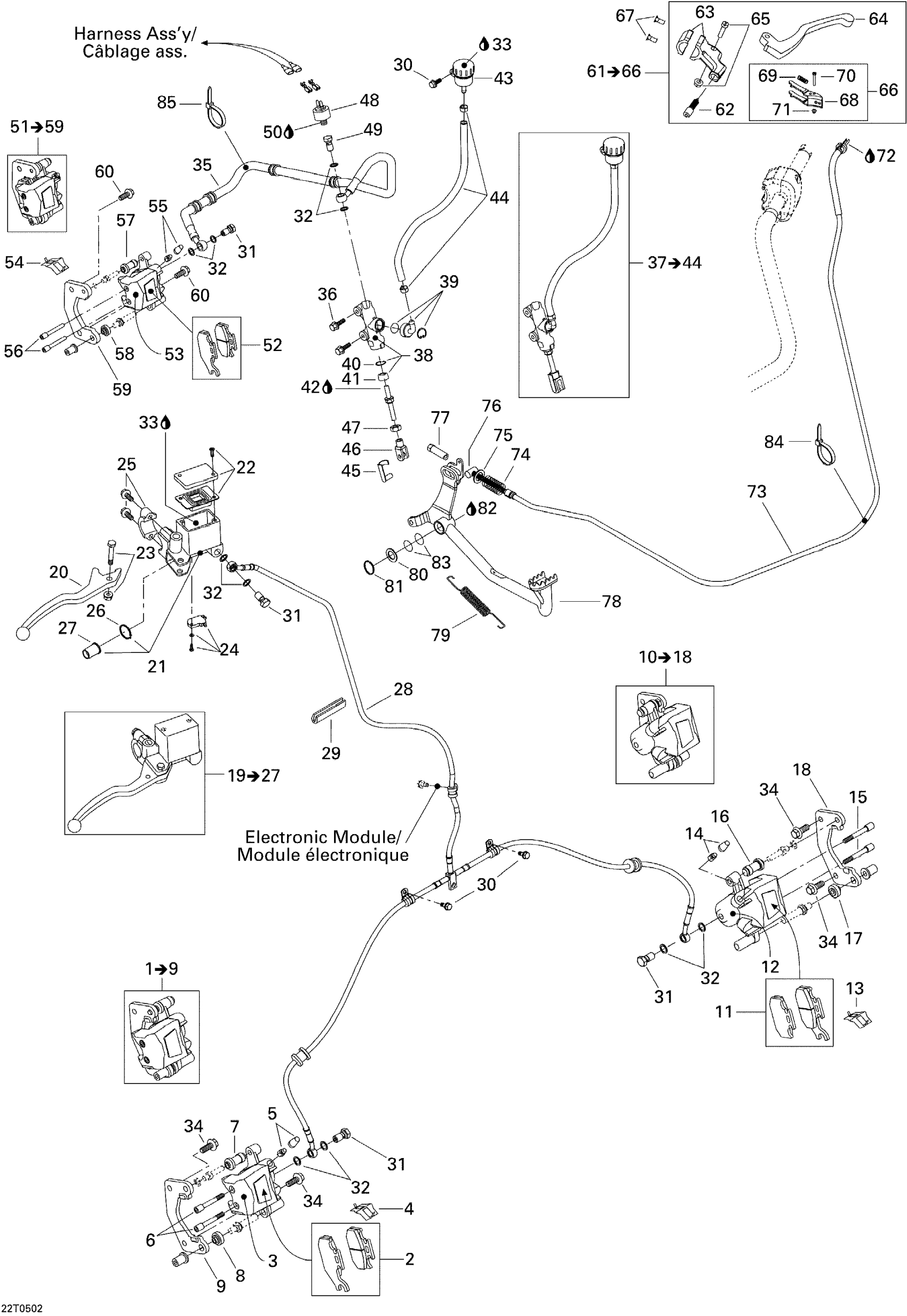

Can-Am Traxter XT, 2005 Brakes Diagram

#

Description
Price

1

RH Caliper | Includes 1 To 9

705600118

Unavailable

2

Brake Pad Kit

705600004

$48.48

3

Piston Set

705600078

$35.79

4

Spring

705600079

$13.51

5

Bleeding Screw

705600080

$14.49

6

Pin Set (2)

705600081

$18.63

7

Compression Boot

705600082

$9.30

8

Compression Boot

705600083

$9.30

9

Lining Support

705600149

Unavailable

10

LH Caliper | Includes 10 To 18

705600119

Unavailable

11

Brake Pad Kit

705600014

$48.48

12

Piston Set

705600078

$35.79

13

Spring

705600079

$13.51

14

Bleeding Screw

705600080

$14.49

15

Pin Set (2)

705600081

$18.63

16

Compression Boot

705600082

$9.30

17

Compression Boot

705600083

$9.30

18

Lining Support

705600149

Unavailable

19

FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600120

Unavailable

20

LEVER ARM - Call your local BRP dealership

705600164

Unavailable

21

PISTON KIT - Call your local BRP dealership

705600152

Unavailable

22

Cap Set

705600084

$23.10

23

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

24

SWITCH KIT - Call your local BRP dealership

705600148

Unavailable

25

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

26

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

27

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

28

Brake Hose

705600290

$164.15

29

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

30

Hex. Flange Screw M6 X 16

210261650

$1.40

31

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

32

Washer

414920600

$1.75

33

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

33

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

34

Hex. Screw M10 X 20, Scotch Grip

250000057

$3.29

35

Rear Brake Flexible Hose

705600291

Unavailable

36

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.00

37

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership

705600154

Unavailable

38

Piston Set

705600063

Unavailable

39

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

40

Circlip

705600068

Unavailable

41

Compression Boot

705600090

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Oil Tank, Brake Fluid Reservoir

705600182

$35.04

44

OIL HOUSING HOSE - Call your local BRP dealership

705600169

Unavailable

45

Pin Kit

219702305

$30.57

46

Yoke

705600100

Unavailable

47

Hex. Nut M8

232081414

$0.69

48

Interrupteur *Brake Switch

710001345

Unavailable

49

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

50

Was 293800013 Loctite 56765

219704454

$63.40

51

REAR CALIPER - Call your local BRP dealership | Includes 51 To 59

705600122

Unavailable

52

Brake Pad Kit

705600150

$48.48

53

Piston Set

705600078

$35.79

54

Spring

705600079

$13.51

55

Bleeding Screw

705600080

$14.49

56

Pin Set (2)

705600081

$18.63

57

Compression Boot

705600082

$9.30

58

Compression Boot

705600083

$9.30

59

Lining Support

705600149

Unavailable

60

Hex. Screw M10 X 14, Scotch Grip

250000163

$3.29

61

Brake Handle | Includes 61 To 66

705600011

Unavailable

62

Cable Screw

250000030

Unavailable

63

CLAMP KIT - Call your local BRP dealership

705600184

Unavailable

64

LEVER - Call your local BRP dealership

705600186

Unavailable

65

Pivot Kit

705600187

Unavailable

66

Lever Lock Kit

705600188

Unavailable

67

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

68

LOCK LEVER - Call your local BRP dealership

705600387

Unavailable

69

SPRING - Call your local BRP dealership

705600225

Unavailable

70

Screw M3 X 22

208032291

Unavailable

71

Elastic Stop Nut M3

232531423

$0.52

72

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

73

REAR BRAKE CABLE - Call your local BRP dealership

705600099

Unavailable

74

SPRING - Call your local BRP dealership

705600144

Unavailable

75

FLAT WASHER - Call your local BRP dealership

705600145

Unavailable

76

CABLE BARREL - Call your local BRP dealership

705600146

Unavailable

77

NUT - Call your local BRP dealership

705600388

Unavailable

78

BRAKE PEDAL, BLACK - Call your local BRP dealership

705600125

Unavailable

79

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

Unavailable

80

WASHER - Call your local BRP dealership

503107800

Unavailable

81

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

82

Synthetic Grease, 400 G

293550010

Unavailable

83

O-RING - Call your local BRP dealership

293300053

Unavailable

84

Tie-Rap 180 mm

414115200

$0.10

85

Tie Wrap 368 mm

293750008

$0.97
