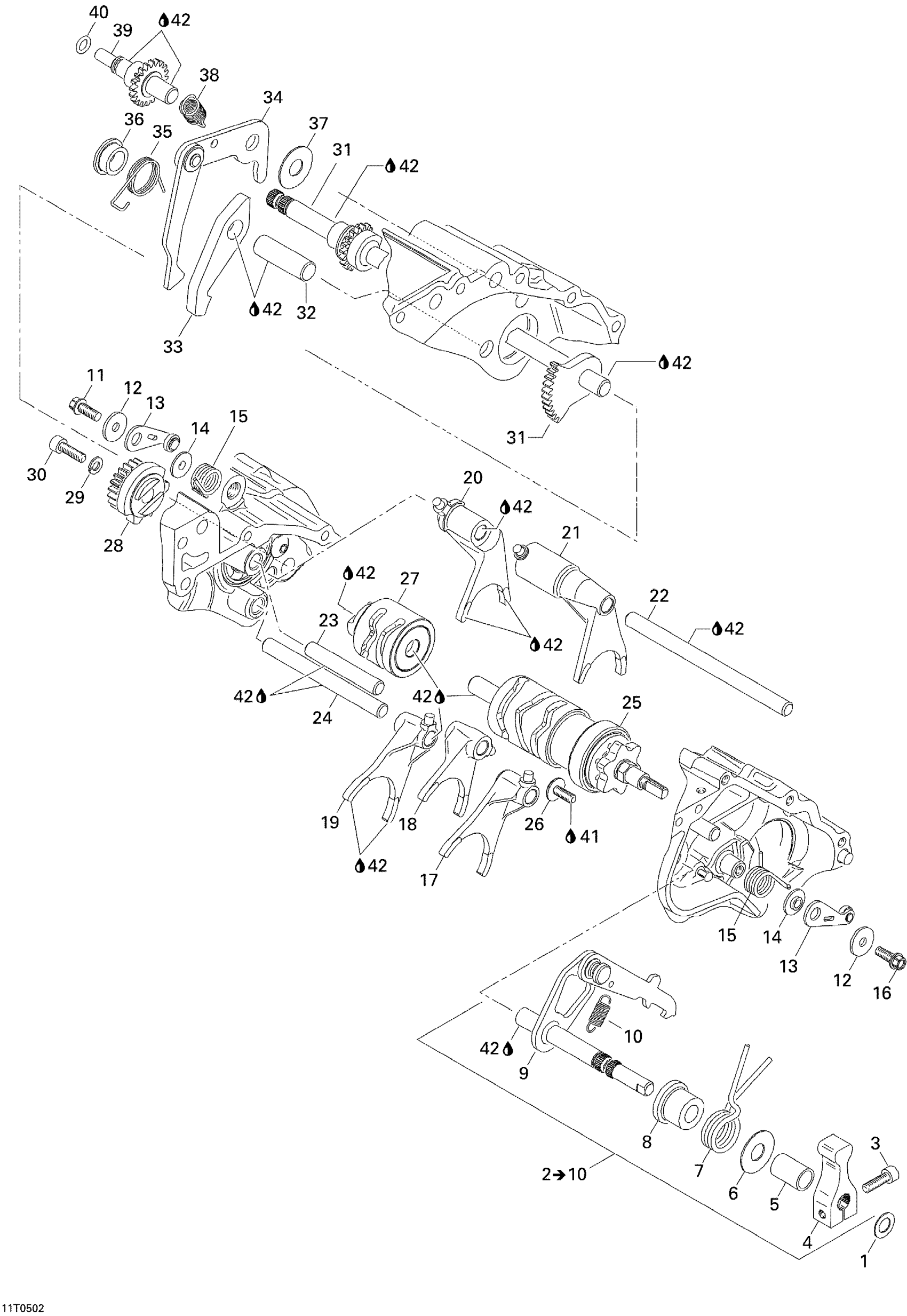

Can-Am Traxter XT, 2005 Gear Shift Diagram

#

Description
Price

1

THRUST WASHER - Call your local BRP dealership

420627100

$4.58

2

SHIFT SHAFT ASS'Y - Call your local BRP dealership | Includes 2 to 10

420220537

Unavailable

3

Socket Head Screw M6 X 25

205062544

$0.88

4

Gear Shift Lever

711257090

Unavailable

5

Distance Sleeve

711247020

Unavailable

6

THRUST WASHER - Call your local BRP dealership

420227980

$7.39

7

Shaft Spring

711239084

$103.82

8

Collar Sleeve

711247050

Unavailable

9

Shift Shaft with Pawl Ass'y

711220536

$103.82

10

Tension Spring

711239540

$9.97

11

Hex. Flange Screw M6 X 16

420241751

Unavailable

12

Washer

420227900

Unavailable

13

INDEX LEVER KIT - Call your local BRP dealership

703500189

Unavailable

14

BUSHING - Call your local BRP dealership

420227710

$8.43

15

INDEX LEVER SPRING - Call your local BRP dealership

420239560

$6.89

16

Hex. Flange Screw M6 X 16

420241751

Unavailable

17

Shift Fork

420258402

Unavailable

18

Shift Fork

420258412

Unavailable

19

Shift Fork

420258392

Unavailable

20

Shift Fork

420258424

Unavailable

21

SHIFT FORK - Call your local BRP dealership

420258434

$89.20

22

GEAR SHIFT ROD - Call your local BRP dealership

420257080

$18.43

23

Needle Pin

420229475

$12.29

24

Cylindrical Pin M10 X 100

420229480

Unavailable

25

SHIFT DRUM ASS'Y - Call your local BRP dealership

420257107

$327.99

26

SCREW M6 X 13 - Call your local BRP dealership

420241531

$10.74

27

Shift Drum

420257111

Unavailable

28

INDEX GEAR - Call your local BRP dealership

420257130

$14.23

29

Lock Washer

420445331

Unavailable

30

Socket Head Screw M6 X 25

205062544

$0.88

31

Shift Shaft Ass'y

420220585

Unavailable

32

SHAFT - Call your local BRP dealership

420220600

$19.77

33

PARK LOCKING LEVER - Call your local BRP dealership

420258621

$32.28

34

Actuating Lever

420258475

Unavailable

35

HELICAL SPRING - Call your local BRP dealership

420239550

$11.51

36

COLLAR SLEEVE - Call your local BRP dealership

420247040

$13.05

37

THRUST WASHER - Call your local BRP dealership

420227980

$7.39

38

TENSION SPRING - Call your local BRP dealership

420239591

$12.28

39

INDICATOR SHAFT - Call your local BRP dealership

420220545

$70.74

40

O-Ring

420430800

$3.85

41

Loctite 243, 10 ml

293800060

$20.77

42

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
