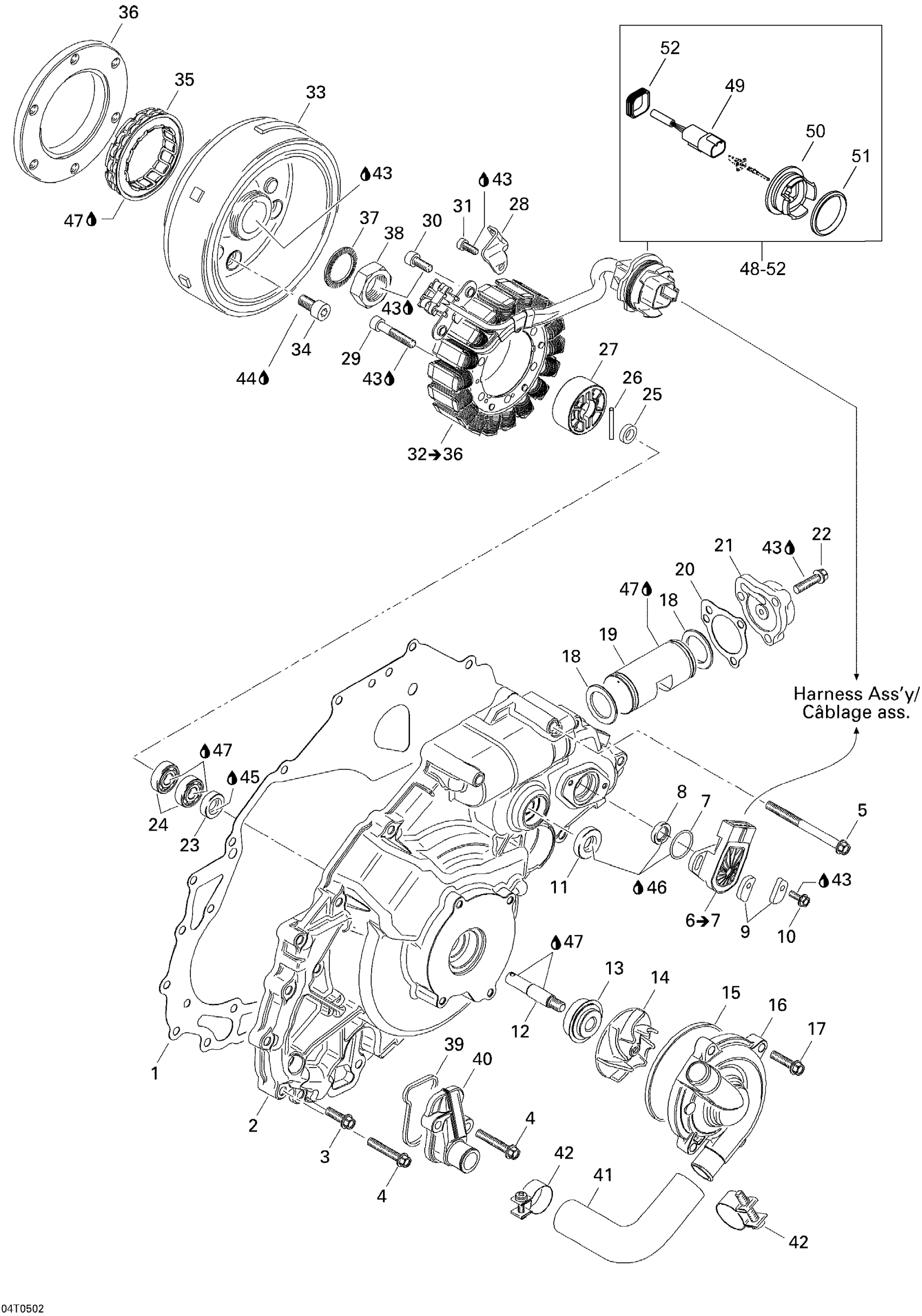

Can-Am Traxter XT, 2005 Ignition, Magneto and Water Pump Diagram

#

Description
Price

1

GASKET, IGNITION COVER - Call your local BRP dealership

420650603

Unavailable

2

IGNITION COVER - Call your local BRP dealership

420211821

$391.51

3

HEX. FLANGED SCREW M6 X 20 - Call your local BRP dealership

420241861

Unavailable

4

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

420941126

$4.58

5

Hex. Flange Screw M6 X 70

420940576

Unavailable

6

POTENTIOMETER, TRANSMISSION - Call your local BRP dealership | Item 7 Not included

420265611

Unavailable

7

O-RING - Call your local BRP dealership

420931390

$8.94

8

Oil Seal

420230870

Unavailable

9

REINFORCEMENT - Call your local BRP dealership

420224630

$4.58

10

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

$1.29

11

OIL SEAL - Call your local BRP dealership

420950400

$13.86

12

WATER PUMP SHAFT - Call your local BRP dealership

420220560

Unavailable

13

Rotary Seal

420650371

$35.72

14

WATER IMPELLER - Call your local BRP dealership

420222540

Unavailable

15

Rubber Ring

420650570

Unavailable

16

WATER PUMP HOUSING - Call your local BRP dealership

420222550

Unavailable

17

HEX. SCREW M6 X 25 - Call your local BRP dealership

420241911

Unavailable

18

K GROOVED RING - Call your local BRP dealership

420650660

$22.28

19

Hydraulic Piston

420257140

Unavailable

20

GASKET, HYDRAULIC COVER - Call your local BRP dealership

420650640

Unavailable

21

HYDRAULIC COVER - Call your local BRP dealership

420211950

$35.35

22

HEX. SCREW M6 X 25 - Call your local BRP dealership

420241911

Unavailable

23

OIL SEAL - Call your local BRP dealership

420250080

$14.58

24

Ball Bearing

420632170

Unavailable

25

DISTANCE SLEEVE - Call your local BRP dealership

420247030

$9.97

26

NEEDLE PIN - Call your local BRP dealership

420932885

Unavailable

27

PAWL - Call your local BRP dealership

420659190

$12.28

28

Cable Clamp

420251180

Unavailable

29

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

420941126

$4.58

30

Hex. Flange Screw M6 X 16

420241751

Unavailable

31

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

32

Magneto Ass'y | Includes 32 to 36

420296107

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership

205081644

Unavailable

35

Sprag Clutch

420659117

Unavailable

36

Clutch Sprag Housing

420659129

$138.43

37

SERRATED WASHER 22 MM - Call your local BRP dealership

420245875

$10.74

38

HEX. NUT M22 - Call your local BRP dealership

420242875

$12.28

39

SEALING RING - Call your local BRP dealership

420650940

Unavailable

40

INLET FITTING - Call your local BRP dealership

420222620

$29.20

41

PROFILED TUBE - Call your local BRP dealership

420222630

Unavailable

42

Clamp

420951760

Unavailable

43

Loctite 243, 10 ml

293800060

$20.77

44

Sealant Loctite 648

219703000

$35.72

45

Dow Corning 111, 150 g

413707000

$57.82

46

Grease, Super Lube

293550030

$24.67

47

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

48

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

49

Male Terminal Housing, 6 Circuits

710001539

$15.57

50

Adaptor

270000138

Unavailable

51

Gasket

293300033

Unavailable

52

Gasket

293200055`

Unavailable
