Partiron

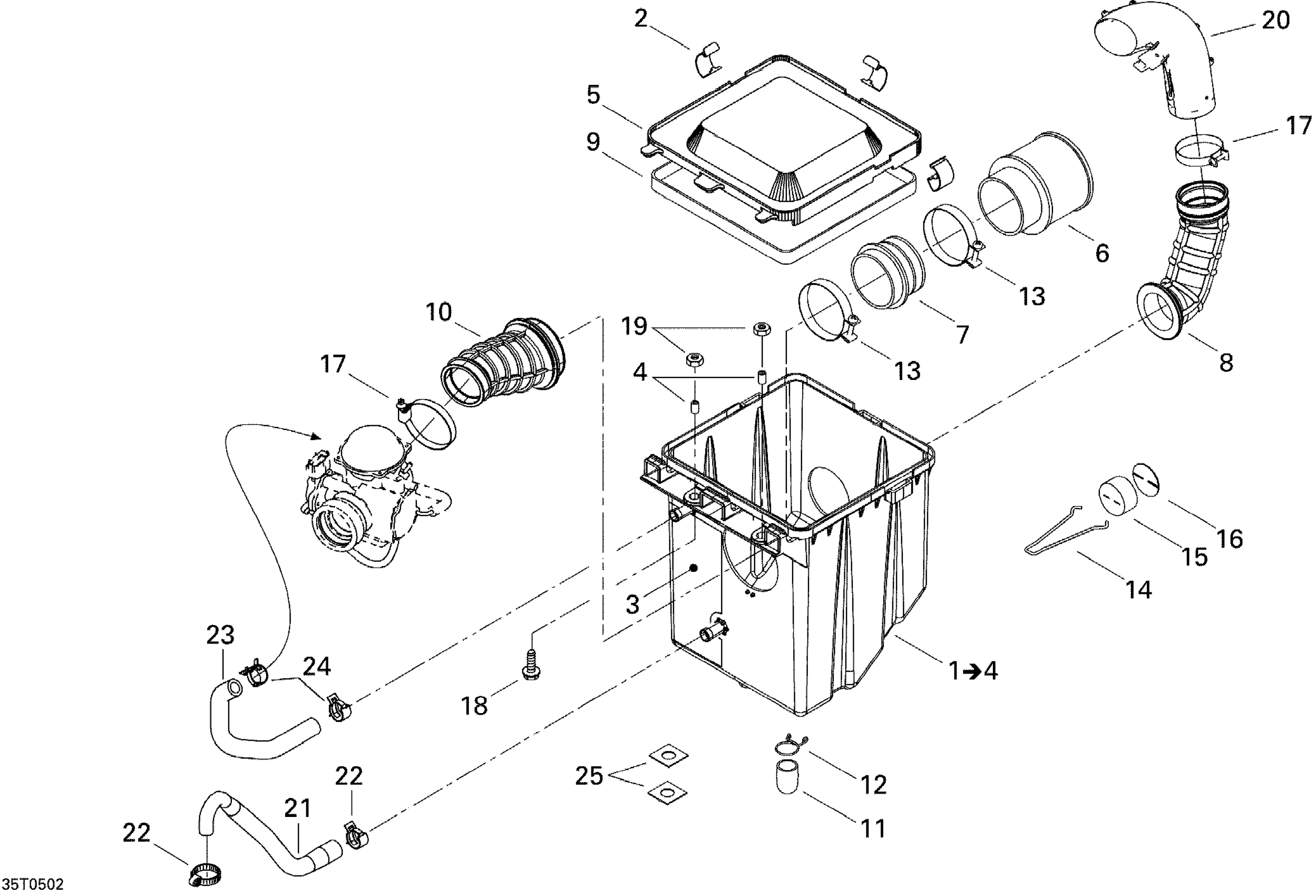

Can-Am Traxter XT, 2005 Air Intake Diagram

#

Description
Price

1

SILENCER BASE ASS'Y - Call your local BRP dealership | Includes 1 To 7

707800167

$46.12

2

Bracket Cover

707800079

Unavailable

3

HEAT PROTECTOR - Call your local BRP dealership

707800083

$16.89

4

Not Available As Spare Part - Friction Washer

Unavailable

5

MUFFLER COVER - Call your local BRP dealership

707800158

$44.58

6

Air Filter

707800072

$34.58

7

Adaptor

707800077

Unavailable

8

Rear Intake Adaptor

707800195

Unavailable

9

OIL SEAL - Call your local BRP dealership

293250113

$13.05

10

INTAKE ADAPTOR - Call your local BRP dealership

707800071

Unavailable

11

Drain Tube

707800080

$7.37

12

RETAINER CLIP - Call your local BRP dealership

707800081

Unavailable

13

Tridon Clamp

293650179

$8.81

14

FOAM BRACKET - Call your local BRP dealership

707800087

$6.89

15

FILTER FOAM - Call your local BRP dealership

707800088

$5.35

16

Retainer Bracket

707800089

Unavailable

17

Gemi Clamp

293650158

$8.34

18

Hex. Flange Screw M6 X 20

207662044

$1.66

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

REAR AIR INTAKE - Call your local BRP dealership

707800073

$12.28

21

Vent Hose

707800164

Unavailable

22

Norma Spring Clamp

293650108

$4.00

23

Carburator Vent Hose

707800086

Unavailable

24

Norma Clamp

293650110

$4.38

25

Rubber Bumper

293830091

$8.29
