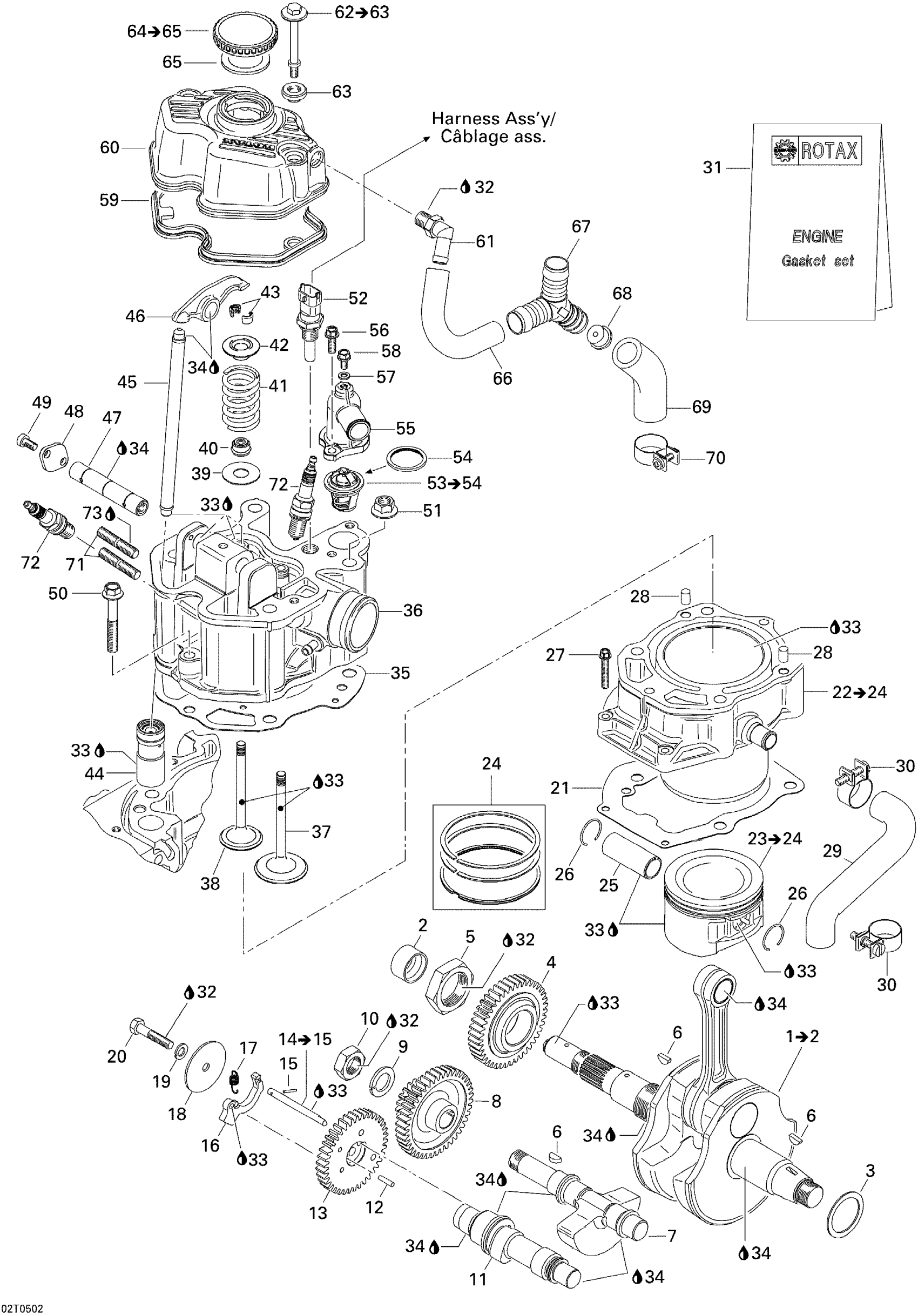

Can-Am Traxter XT, 2005 Crankshaft, Piston And Cylinder Diagram

#

Description
Price

1

CRANKSHAFT ASS'Y - Call your local BRP dealership

420295893

$1,322.99

2

SPACER - Call your local BRP dealership

420247070

Unavailable

3

WASHER-ADJUSTING DIN.988 - Call your local BRP dealership

420427505

$4.58

3

Adjusting Washer 35 X 45 X 1.5

420427506

Unavailable

3

WASHER-ADJUSTING DIN.988 - Call your local BRP dealership

420427507

$6.89

4

MATING GEAR, 42 TEETH - Call your local BRP dealership

420635011

$182.28

5

HEX. NUT M34 - Call your local BRP dealership

420842605

Unavailable

6

Woodruff Key 4 X 5

420246570

$3.29

7

Balance Shaft

420220470

Unavailable

8

BALANCING GEAR DOUBLE - Call your local BRP dealership

420635100

$213.82

9

LOCK WASHER 18 MM - Call your local BRP dealership

420945757

$1.60

10

HEX. NUT M18 - Call your local BRP dealership

420942220

$9.52

11

CAM SHAFT - Call your local BRP dealership

420220462

$353.99

12

Needle Pin

420232420

$3.86

13

CAM SHAFT GEAR, 38 TEETH - Call your local BRP dealership

420634956

$269.97

14

DEKO SHAFT ASS'Y - Call your local BRP dealership | Includes 14 to 15

420220615

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Centrifugal Weight

420231050

Unavailable

17

TENSION SPRING - Call your local BRP dealership

420239570

$12.28

18

RONDELLE - Call your local BRP dealership

420244260

$9.97

19

Washer-Lock Din.128

420945832

$1.09

20

Hex. Screw M8 X 40

207084044

$0.92

21

CYLINDER GASKET - Call your local BRP dealership

420650430

Unavailable

22

CYLINDER/PISTON - Call your local BRP dealership | Includes 22 to 24

420613177

Unavailable

23

Piston 89 mm And Ring Set | Includes 23 to 24

420296110

Unavailable

24

Piston Ring Set

420296114

Unavailable

25

Piston Pin

420216225

$34.58

26

CIRCLIP 22 MM - Call your local BRP dealership

420245431

$4.58

27

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

420941126

$4.58

28

Center Pin 8 X 12

420632010

$3.07

29

WATER COOLING HOSE - Call your local BRP dealership

420222285

$35.35

30

Clamp

420951760

Unavailable

31

Engine Gasket Set

420296372

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77

33

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

34

Petamo Grease, GHY133N, 400 g

420899271

$57.17

35

CYLINDER HEAD GASKET - Call your local BRP dealership

420650446

Unavailable

36

CYLINDER HEAD - Call your local BRP dealership

420613375

$510.99

37

Inlet Valve 42 mm

420254050

Unavailable

38

INLET VALVE 34 MM - Call your local BRP dealership

420254062

$77.66

39

THRUST WASHER - Call your local BRP dealership

420227980

$7.39

40

Valve Seal

420230810

Unavailable

41

VALVE SPRING - Call your local BRP dealership

420239500

$20.57

42

VALVE SPRING RETAINER - Call your local BRP dealership

420254100

Unavailable

43

VALVE COTTER - Call your local BRP dealership

420253090

$7.66

44

Valve Hydraulic Tappet

420854099

$106.12

45

PUSH ROD - Call your local BRP dealership

420854575

Unavailable

46

Rocker Arm

420254083

Unavailable

47

ROCKER ARM SHAFT - Call your local BRP dealership

420254110

$31.51

48

HOLDING STRIP - Call your local BRP dealership

420244250

Unavailable

49

SOCKET HEAD SCREW M6 X 10 - Call your local BRP dealership

420241681

$3.82

50

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

51

Hex. Flange Nut M10

233101414

$4.10

52

Temperature Sensor

278002895

$31.82

53

Thermostat | Includes 53 to 54

420222495

$36.89

54

Thermostat Gasket

420650300

$8.34

55

Thermostat Cover

420222560

Unavailable

56

Hex. Flange Screw M6 X 16

420241751

Unavailable

57

Sealing Washer

404146600

$0.72

58

Hex. Flange Screw M6 X 16

420241751

Unavailable

59

Gasket, Valve Cover

420650450

Unavailable

60

VALVE COVER - Call your local BRP dealership

420211835

$79.20

61

Angular Tube

420922242

$12.29

62

DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership

420240906

Unavailable

63

Rubber Bushing

420260050

Unavailable

64

BAYONET FILLER CAP - Call your local BRP dealership | Includes 64 to 65

420974644

Unavailable

65

Not Available As Spare Part - Friction Washer

Unavailable

66

Formed Hose

420222610

Unavailable

67

Y-Fitting

420874380

Unavailable

68

FITTING - Call your local BRP dealership

420222590

$10.74

69

Formed Hose

420222600

Unavailable

70

Clamp

420951760

Unavailable

71

STUD M8 X 23 - Call your local BRP dealership

420940366

$7.89

72

Spark Plug, NGK/DR8EA

707000008

$4.03

73

Sealant Loctite 648

219703000

$35.72
