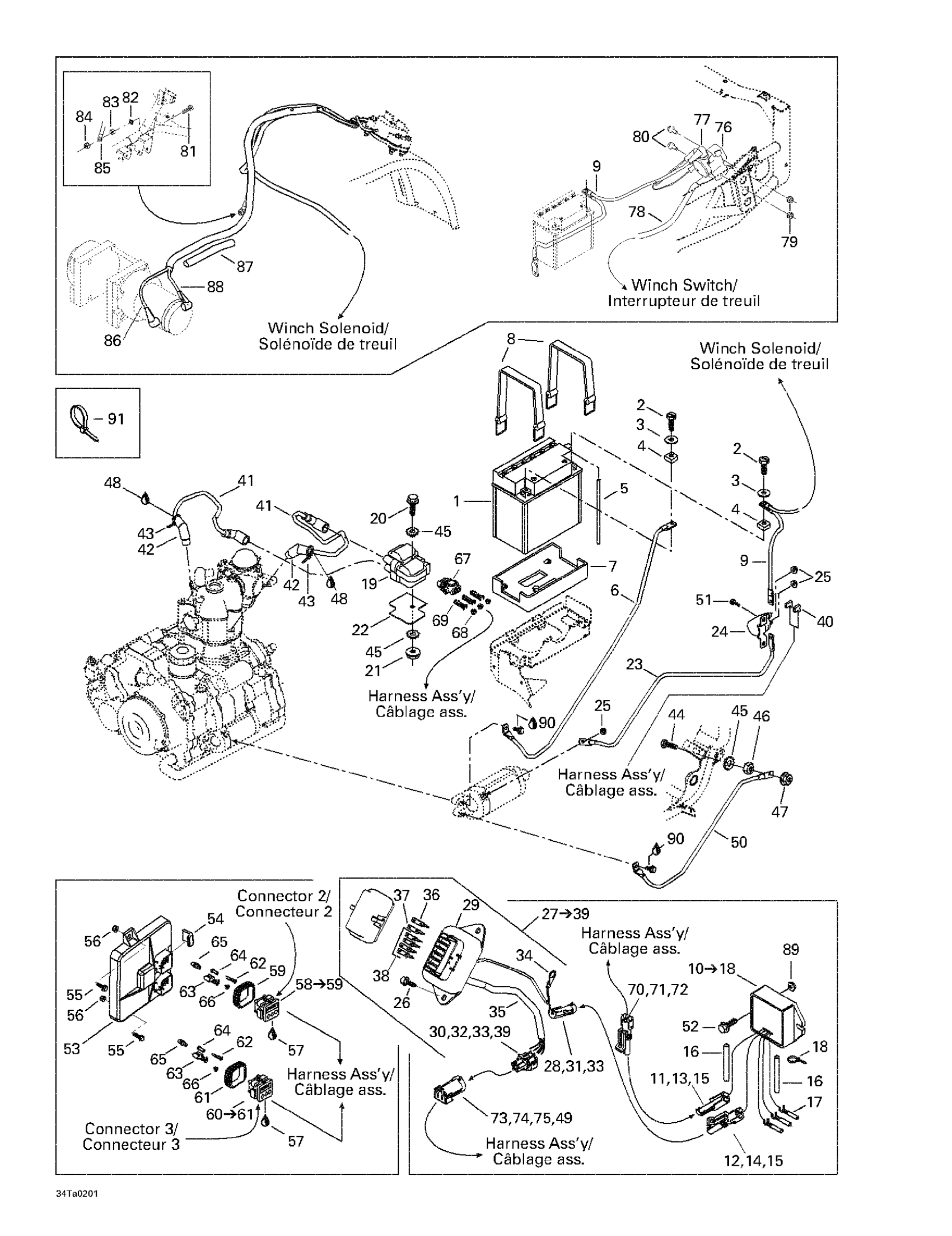

Can-Am Traxter XT, 2002 Battery And Electrical Accessories Diagram

#

Description
Price

1

Battery 19A | Includes 5 to 8

278001756

Unavailable

2

Hex. Screw M6 X 16

207161644

Unavailable

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Nut M6

232061414

$0.44

5

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

6

Engine Ground Cable

710000211

Unavailable

7

Lower Battery Pad

278001746

Unavailable

8

Retainer Strap

293850097

Unavailable

9

Battery Cable | 7423/7424 (XT-Yellow/Jaune).

710000135

Unavailable

10

VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 18 to 26

710000100

Unavailable

11

Male Terminal | XT Models

278000222

$2.55

12

Female Terminal

278000223

Unavailable

13

Female Housing, 1 Circuit

278000161

Unavailable

14

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

15

Wire Seal

278000218

Unavailable

16

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

17

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

18

Tie Wrap 94 mm | 4X4

293750001

$0.83

19

Ignition Coil

278001546

Unavailable

20

Hex. Flange Screw M6 X 50

207665044

Unavailable

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

22

Insulator Pad

710000073

Unavailable

23

STARTER POSITIVE CABLE - Call your local BRP dealership

710000136

Unavailable

24

Starter Relay

515176011

Unavailable

25

Hex. Elastic Stop Nut M6

232561600

$0.92

26

Hex. Flange Screw M6 X 16

210261650

$1.22

27

Fuse Hoder | Includes 28 - 40.

710000212

$102.28

28

Male Terminal

409004300

$5.46

29

Fuse Box

710000213

Unavailable

30

Female Terminal

409007300

$0.36

31

Female Housing, 1 Circuit

278000161

Unavailable

32

Wire Seal

278000218

Unavailable

33

Wire Seal

710000048

Unavailable

34

Open Barrel Terminal

278001392

Unavailable

35

Tubing 6 Mm 3000Mm Long

219704425

$13.14

36

Fuse, 30 Amperes

410917200

$3.22

37

Fuse, 20 Amperes

409003900

$3.22

38

Fuse, 15 Amperes

278000343

$2.72

39

Female Housing, 5 Circuit

710000106

Unavailable

40

Female Terminal

409010300

$4.12

41

Ens Fil Bougie *Wire-Spark Kit | Includes 54 to 57

703500744

$64.58

42

Spark Plug Connector

420265248

Unavailable

43

Tie Wrap 94 mm | 4X4

293750001

$0.83

44

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

45

External Serrated Lock Washer 6 mm

234461608

Unavailable

46

Hex. Nut M6

232061414

$0.44

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

48

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

49

Wire Seal

710000048

Unavailable

50

Battery Ground Cable

710000022

Unavailable

51

Hex. Self-threaded Screw 1/4"-20 X 3/4"

250000061

Unavailable

52

Hex. Flange Screw M6 X 20

207662044

Unavailable

53

Electronic Module Calibrated

710000185

Unavailable

54

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

55

Hex. Flange Screw M6 X 20

207662044

Unavailable

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

57

*(Ormd) *Deoxit Aerosol *

293550034

Unavailable

58

Male Terminal Housing, 26 Circuits

278001062

Unavailable

59

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

60

Male Terminal Housing, 26 Circuits

278001062

Unavailable

61

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

62

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

63

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

64

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

65

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

66

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

67

Male Housing, 3 Circuits

278000997

$15.57

68

Wire Seal

278000999

$2.55

69

Female Terminal

278000998

$3.48

70

Wire Seal

710000048

Unavailable

71

Female Terminal

409007300

$0.36

72

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

73

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

$8.43

74

Male Terminal

409004300

$5.46

75

Wire Seal

278000218

Unavailable

76

Solenoide *Solenoid Kit | 7423/7424 (XT-Yellow/Jaune).

715900123

$83.05

77

Protector cap | 7423/7424 (XT-Yellow/Jaune).

710000119

Unavailable

78

Solenoid Wire | 7423/7424 (XT-Yellow/Jaune).

710000122

Unavailable

79

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

80

Hex. Flange Screw M6 X 16

207661644

Unavailable

81

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

82

External Serrated Lock Washer 6 mm

234461608

Unavailable

83

Hex. Nut M6

232061414

$0.44

84

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

85

Winch wire | 7423/7424 (XT-Yellow/Jaune).

710000124

Unavailable

86

Winch wire | 7423/7424 (XT-Yellow/Jaune).

710000123

Unavailable

87

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

88

Winch wire | 7423/7424 (XT-Yellow/Jaune).

710000134

Unavailable

89

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

90

Loctite 243, 10 ml

293800060

$20.77

91

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

Unavailable

Tie Wrap 368 mm

293750008

$0.85
