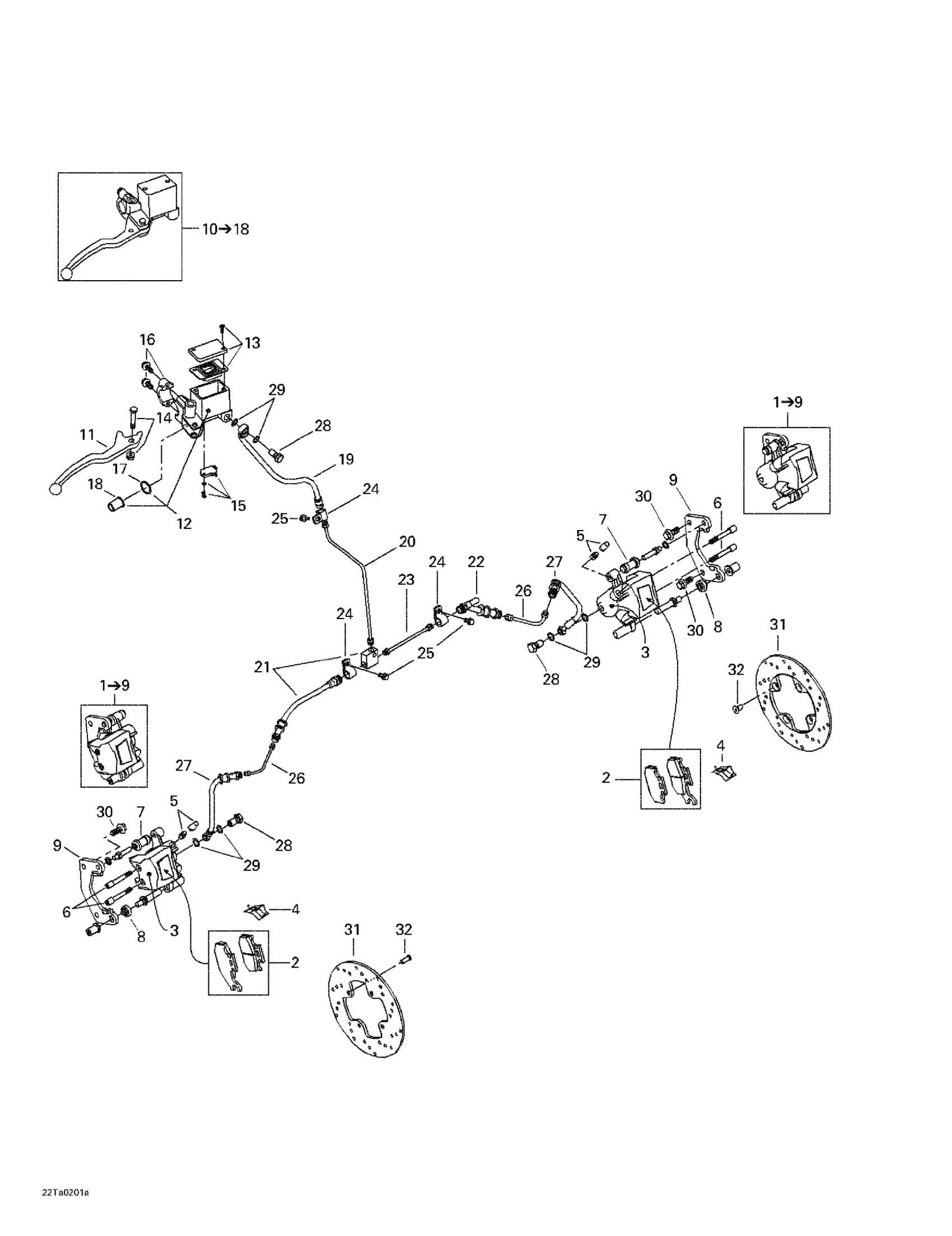

Can-Am Traxter XT, 2002 Hydraulic Front Brake Diagram

#

Description
Price

1

RH Caliper | Includes 1 To 9

705600118

Unavailable

LH Caliper | Includes 10 To 18

705600119

Unavailable

2

Brake Pad Kit

705600004

$49.97

Brake Pad Kit

705600014

$49.97

3

Piston Set

705600078

$36.89

4

Spring

705600079

$14.37

5

Bleeding Screw

705600080

$15.22

6

Pin Set (2)

705600081

$19.20

7

Compression Boot

705600082

$10.14

8

Compression Boot

705600083

$10.14

9

Lining Support

705600149

Unavailable

10

FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600120

Unavailable

11

LEVER ARM - Call your local BRP dealership

705600164

Unavailable

12

PISTON KIT - Call your local BRP dealership

705600152

$59.97

13

Cap Set

705600084

$23.05

14

BOLT KIT - Call your local BRP dealership

705600085

$13.05

15

SWITCH KIT - Call your local BRP dealership

705600148

$62.28

16

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

17

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

18

COMPRESSION BOOT - Call your local BRP dealership

705600089

$9.74

19

HANDLE BRAKE HOSE - Call your local BRP dealership

705600165

Unavailable

20

Vertical tube

705600036

Unavailable

21

RH flexible hose

705600174

Unavailable

22

LH flexible hose

705600175

Unavailable

23

Horizontal tube

705600038

Unavailable

24

Hose Retainer 13 mm

705600232

$11.06

25

Hex. Flange Screw M6 X 16

210261650

$1.22

26

Rigid tube

705600176

Unavailable

27

BRAKE LINE - Call your local BRP dealership

705601394

$37.66

28

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

29

Washer

414920600

$1.52

30

Hex. Screw M10 X 20, Scotch Grip

250000057

$3.98

31

Brake disc 205 mm

705600168

Unavailable

32

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09
