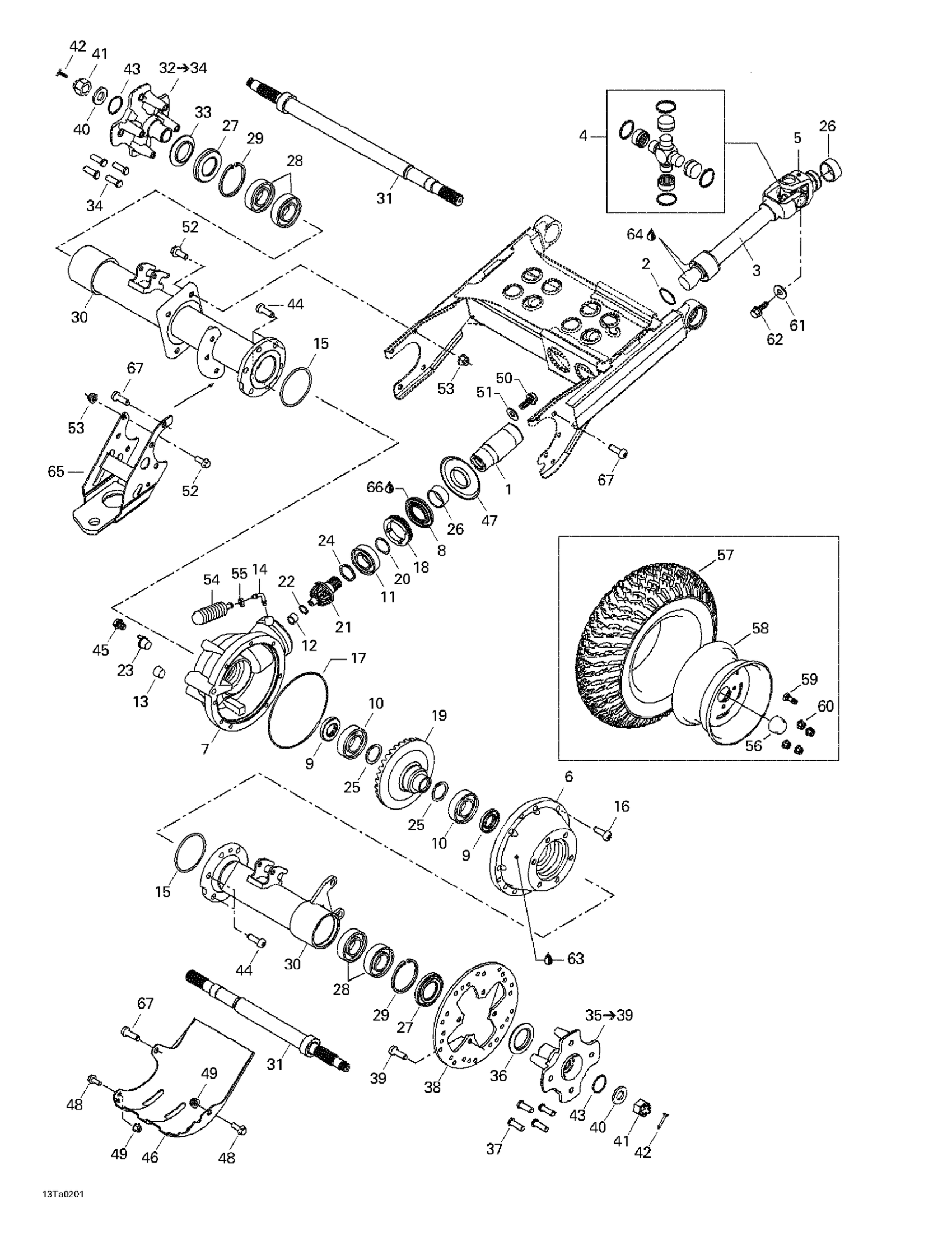

Can-Am Traxter XT, 2002 Drive System, Rear Diagram

#

Description
Price

1

COUPLER - Call your local BRP dealership | Includes 1 - 2.

705500380

Unavailable

2

SEALING RING - Call your local BRP dealership

705500315

Unavailable

3

Drive Axle | Includes 3 to 5

705500168

Unavailable

4

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

5

Fixed Yoke Joint

715900116

$59.97

6

Rear Cover

705500175

Unavailable

7

Differential Carrier

705500233

Unavailable

8

Oil Seal

705500248

Unavailable

9

Gasket | 4X4

705401618

$17.66

10

Ball Bearing | 4X4

705401606

$49.20

11

Ball Bearing | 4X4

705500260

$30.39

12

Needle Bearing | 4X4

705500261

Unavailable

13

Drain Plug | 4X4

705500894

$11.06

14

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

15

O-RING - Call your local BRP dealership

705500263

Unavailable

16

Screw | 4X4

705401601

$9.29

17

Seal | 4X4

705500265

$16.12

18

Nut | 4X4

705401603

$36.89

19

Crown Gear

705500223

Unavailable

20

O-Ring | 4X4

705500267

$6.25

21

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

22

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

23

Protector Plug

705500246

Unavailable

24

Pinion Gear Shim .022"

705500075

Unavailable

25

Shim | 4X4

705401604

$55.35

26

Wear Ring | 4X4

705400036

$25.35

27

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

28

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

29

RETAINING RING - Call your local BRP dealership

705500249

Unavailable

30

RH AXLE TUBE - Call your local BRP dealership

705500250

Unavailable

LH AXLE TUBE - Call your local BRP dealership

705500182

Unavailable

31

RH AXLE - Call your local BRP dealership

705500183

Unavailable

LH AXLE - Call your local BRP dealership

705500184

Unavailable

32

Wheel Hub Ass'y | Includes 50 - 52.

705500254

Unavailable

33

WEAR RING - Call your local BRP dealership

705500100

Unavailable

34

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

35

Rear wheel hub | Includes 35 - 39.

705500256

Unavailable

36

WEAR RING - Call your local BRP dealership

705500100

Unavailable

37

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

38

Brake disc

705600167

Unavailable

39

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

40

WASHER - Call your local BRP dealership

250200019

Unavailable

41

Hex. Flange Castellated Nut M18

232291413

$2.82

42

Cotter Pin

250400036

$1.74

43

O-RING - Call your local BRP dealership

705500271

Unavailable

44

Torx Screw M10 X 30

250000085

Unavailable

45

Fill level plug

705500228

Unavailable

46

Differential Protector, Black

705500185

Unavailable

47

JOINT PROTECTOR - Call your local BRP dealership

705500214

Unavailable

48

Hex. Flange Screw M8 X 16

207681644

$4.02

49

Hex. Flange Nut M8

233181414

$0.91

50

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

51

Flat Washer M10 | 4X4

250200014

$1.17

52

Hex. Flange Screw M10 X 25

207602544

$1.33

53

Hex. Flange Elastic Nut M10

233201414

$1.26

54

Rubber Bellow | 4X4

705400552

$6.02

55

Tie Wrap 94 mm | 4X4

293750001

$0.83

56

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

57

Rear Tire | 7423/7424 (XT-Yellow/Jaune).

705500140

Unavailable

58

Rear Rim | (7467 - 7468 - 7472 - 7481) Traxter XT.

705500309

Unavailable

59

Rim Valve With Cap

705400193

$6.69

60

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

61

Washer

211200041

$2.63

62

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

63

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

64

Graisse *Grease

293550062

$15.35

65

Trailer Hook, Black

705500244

Unavailable

66

Synthetic Grease, 400 G

293550010

Unavailable

67

Torx Screw M10 X 30

250000085
