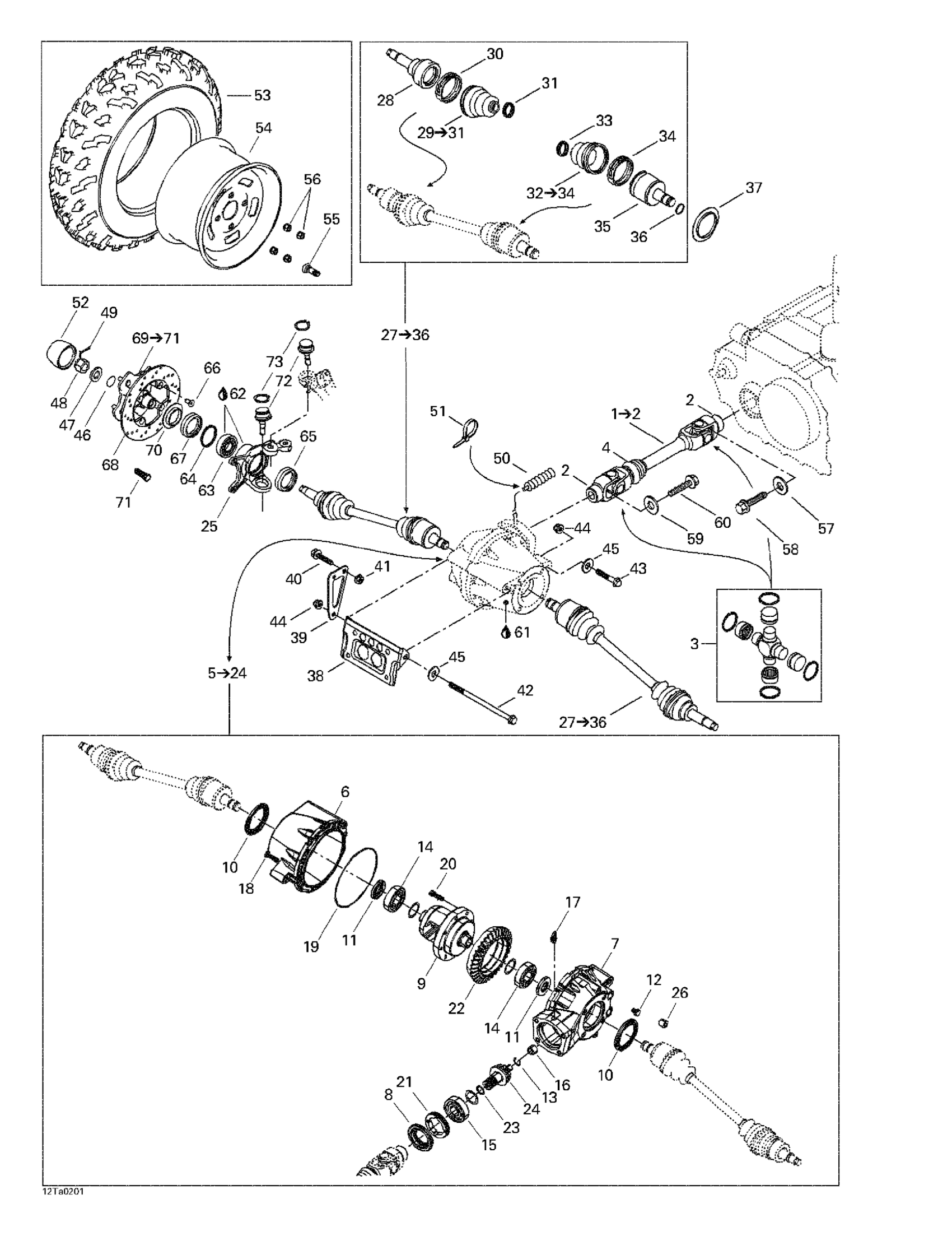

Can-Am Traxter XT, 2002 Drive System, Front Diagram

#

Description
Price

1

Front Propeller Shaft Kit

703500001

Unavailable

2

Wear Ring | 4X4

705400036

$25.35

3

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

4

PROTECTOR - Call your local BRP dealership

705400051

Unavailable

5

Front Differential Ass'y | Includes 5 - 5.

705400003

Unavailable

6

Front Cover

705400099

Unavailable

7

Differential Carrier

705500177

Unavailable

8

Oil Seal | 4X4

705401481

$18.43

9

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

10

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

11

Gasket | 4X4

705401618

$17.66

12

Drain Plug | 4X4

705500894

$11.06

13

RETAINING RING - Call your local BRP dealership | 4X4

705500269

$8.43

14

Ball Bearing | 4X4

705401606

$49.20

15

Ball Bearing | 4X4

705500260

$30.74

16

Needle Bearing | 4X4

705500261

Unavailable

17

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

18

Screw | 4X4

705401601

$9.29

19

Seal | 4X4

705500265

$16.12

20

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

$8.43

21

Nut | 4X4

705401603

$36.89

22

Crown Gear

705400103

$249.20

23

O-Ring | 4X4

705500267

$6.25

24

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

25

RH Knuckle

709400095

Unavailable

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable

26

Fill level plug

705500228

Unavailable

27

RH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400125

$493.82

LH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400124

Unavailable

28

CV JOINT - Call your local BRP dealership

705400093

$193.82

29

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$41.51

30

Clamp | 4X4

705400180

Unavailable

31

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

32

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$41.51

33

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

34

Clamp | 4X4

705400181

Unavailable

35

RH Plunging Joint

705400128

Unavailable

LH Plunging Joint

705400129

Unavailable

36

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

37

Wear Ring

705400016

Unavailable

38

Bracket (Differential)

705400068

Unavailable

39

RH Diffential Front Bracket

705400069

Unavailable

40

Hex. Flange Screw M8 X 20

207682044

$0.92

41

Hex. Flange Elastic Nut M8

233281414

$1.14

42

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

43

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

207506044

Unavailable

44

Hex. Flange Nut M10

233101414

$4.10

45

Flat Washer

250200003

Unavailable

46

O-RING - Call your local BRP dealership

705500271

Unavailable

47

WASHER - Call your local BRP dealership

250200019

$2.02

48

Hex. Flange Castellated Nut M18

232291413

$2.82

49

Cotter Pin

250400036

$1.74

50

Rubber Bellow | 4X4

705400552

$6.02

51

Tie Wrap 94 mm | 4X4

293750001

$0.83

52

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

53

Front Tire | 7423/7424 (XT-Yellow/Jaune).

705400071

Unavailable

54

Front Rim | 7423/7424 (XT-Yellow/Jaune).

705400072

Unavailable

55

Rim Valve With Cap

705400193

$6.69

56

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

57

Washer

211200041

$2.63

58

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

59

Flat Washer M10 | 4X4

250200014

$1.17

60

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

61

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

62

Synthetic Grease, 400 G

293550010

Unavailable

63

Ball Bearing

293350150

$52.99

64

Circlip

293370019

$4.98

65

Oil Seal | 4X4

293250090

$23.05

66

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

67

OIL SEAL - Call your local BRP dealership

705500099

$13.82

68

Brake disc 205 mm

705600168

Unavailable

69

Wheel Hub Ass'y | Includes 50 - 52.

705500254

$188.43

70

WEAR RING - Call your local BRP dealership

705500100

Unavailable

71

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

72

Ball Joint

706200653

$41.51

73

Circlip 32 mm

293370009

$1.49
