Hydraulic Brake

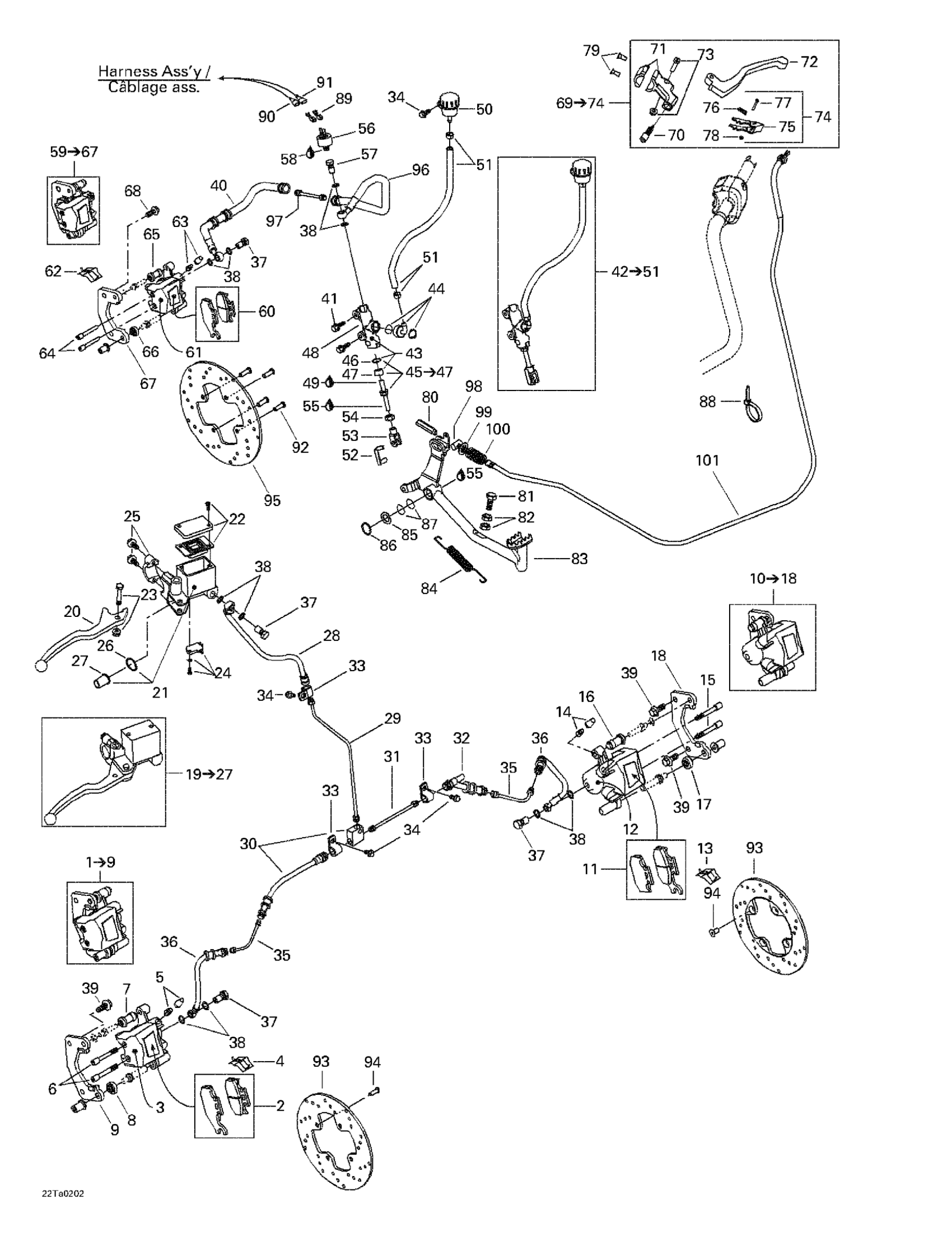

Can-Am Traxter XL, 7477, 2002 Hydraulic Brake Diagram
#
1
RH Caliper | Includes 1 To 9
705600118
Unavailable
2
Brake Pad Kit
705600004
Unavailable
4
Spring
705600079
Unavailable
5
Bleeding Screw
705600080
Unavailable
6
Pin Set (2)
705600081
Unavailable
7
Compression Boot
705600082
Unavailable
8
Compression Boot
705600083
Unavailable
9
Lining Support
705600149
Unavailable
10
LH Caliper | Includes 10 To 18
705600119
Unavailable
11
Brake Pad Kit
705600014
Unavailable
13
Spring
705600079
Unavailable
14
Bleeding Screw
705600080
Unavailable
15
Pin Set (2)
705600081
Unavailable
16
Compression Boot
705600082
Unavailable
17
Compression Boot
705600083
Unavailable
18
Lining Support
705600149
Unavailable
19
FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27
705600120
Unavailable
20
LEVER ARM - Call your local BRP dealership
705600164
Unavailable
25
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
26
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
28
HANDLE BRAKE HOSE - Call your local BRP dealership
705600165
Unavailable
29
Vertical tube
705600036
Unavailable
30
RH flexible hose
705600174
Unavailable
31
Horizontal tube
705600038
Unavailable
32
LH flexible hose
705600175
Unavailable
35
Rigid tube
705600176
Unavailable
37
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
38
Washer
414920600
Unavailable
39
Hex. Screw M10 X 20, Scotch Grip
250000057
Unavailable
40
Flexible Hose (Rear)
705600179
Unavailable
41
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
42
Not Available As Spare Part - Friction Washer
Unavailable
43
Piston Set
705600063
Unavailable
44
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership
705600064
Unavailable
45
Rod Ass'y | Includes 45 - 47.
705600155
Unavailable
46
Circlip
705600068
Unavailable
47
Compression Boot
705600090
Unavailable
49
Not Available As Spare Part - Friction Washer
Unavailable
52
Pin Kit
219702305
Unavailable
53
Yoke
705600100
Unavailable
54
Hex. Nut M8
232081414
Unavailable
55
Synthetic Grease, 400 G
293550010
Unavailable
56
Interrupteur *Brake Switch
710001345
Unavailable
57
BANJO BOLT - Call your local BRP dealership
705600092
Unavailable
58
Was 293800013 Loctite 56765
219704454
Unavailable
59
REAR CALIPER - Call your local BRP dealership | Includes 51 To 59
705600122
Unavailable
62
Spring
705600079
Unavailable
63
Bleeding Screw
705600080
Unavailable
64
Pin Set (2)
705600081
Unavailable
65
Compression Boot
705600082
Unavailable
66
Compression Boot
705600083
Unavailable
67
Lining Support
705600149
Unavailable
68
Hex. Screw M10 X 14, Scotch Grip
250000163
Unavailable
69
Brake Handle | Includes 61 To 66
705600011
Unavailable
70
Cable Screw
250000030
Unavailable
73
Pivot Kit
705600187
Unavailable
74
Lever Lock Kit
705600188
Unavailable
77
Screw M3 X 22
208032291
Unavailable
79
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership
205351646
Unavailable
80
NUT - Call your local BRP dealership
705600147
Unavailable
81
Hex. Screw M10 X 25
207102544
Unavailable
86
CIRCLIP - Call your local BRP dealership
293370012
Unavailable
89
Female Terminal | DS 650 X
278001009
Unavailable
90
Insulated Sheath
278001007
Unavailable
91
Insulated Sheath
278000770
Unavailable
93
Brake Disk 205 mm | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)
705600171
Unavailable
95
Brake Disk 220 mm (Rear)
705600170
Unavailable
96
Flexible Hose
705600192
Unavailable
97
Rigid Tube
705600178
Unavailable
101
REAR BRAKE CABLE - Call your local BRP dealership
705600099
Unavailable
