2002 Can-Am Traxter XL, 7477 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2002 Can-Am Traxter XL, 7477, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

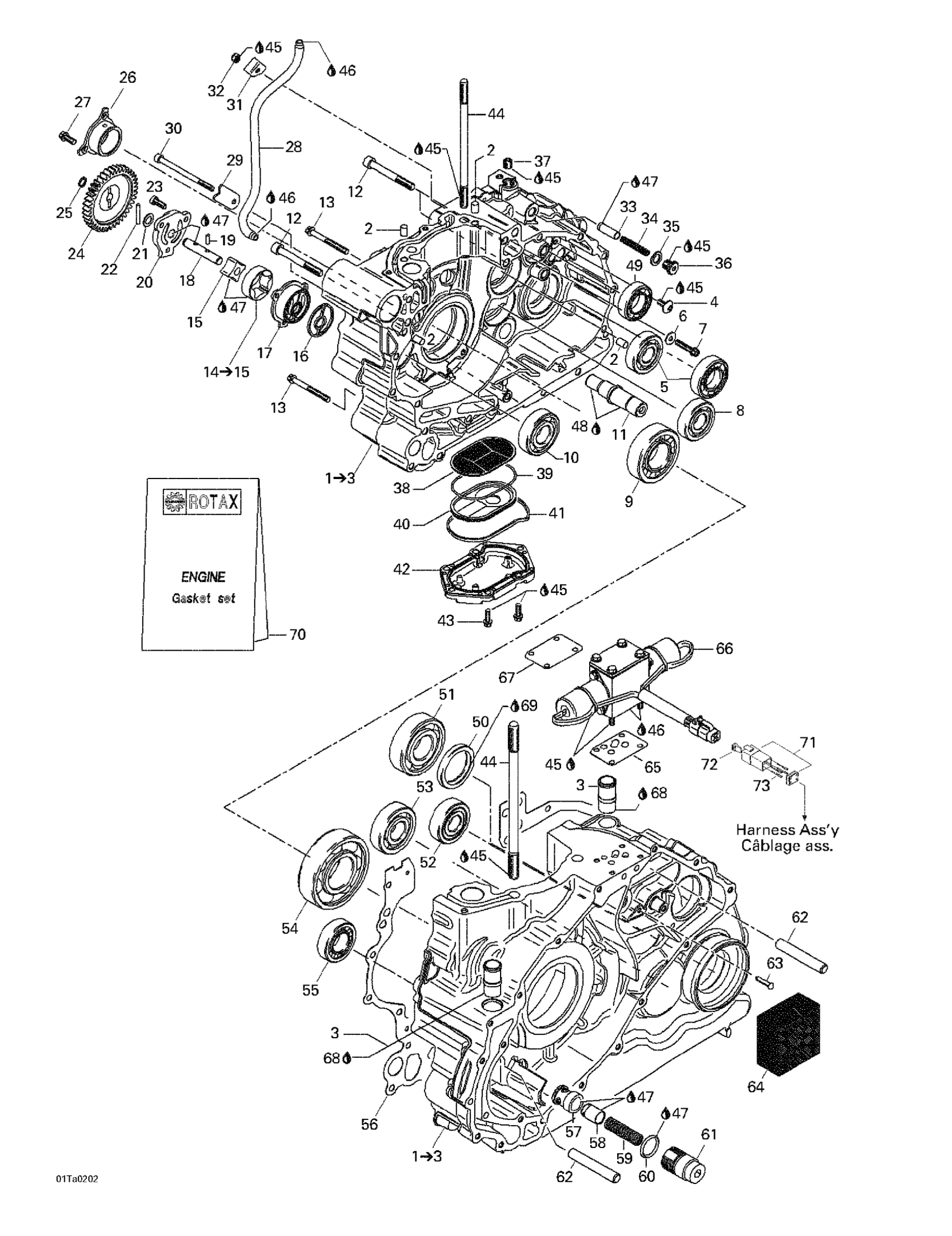

2002 Can-Am Traxter XL, 7477 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Crankcase Ass'y

711295881

—
Out of stock

2

Center Pin 8 X 12

420632010

4
Out of stock

3

Tube

711224260

—
Out of stock

4

Flat Head Screw M6 x 16

711241531

—
Out of stock

5

Ball Bearing 6205

420232764

2
Out of stock

6

Washer

420627400

1
Out of stock

7

Hex. Flange Screw M6 x 30

711241941

—
Out of stock

8

Ball Bearing 6304E

290932095

—
Out of stock

9

Roller Bearing

711232490

—
Out of stock

10

Ball Bearing

711632200

—
Out of stock

11

Intermediate Gear Shaft

711220570

—
Out of stock

12

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

420841991

—
Out of stock

13

Hex. Flange Screw M6 x 65

711640351

—
Out of stock

14

Oil Pump Rotor Ass'y | Includes 13 - 4.

711956275

—
Out of stock

15

Not Available As Spare Part - Friction Washer

—
Out of stock

16

Rubber Ring

711650960

—
Out of stock

17

Ring Housing

711610140

—
Out of stock

18

Oil Pump Shaft

711220592

—
Out of stock

19

Needle Pin

420232731

1
Out of stock

20

Oil Pump Cover

711211852

—
Out of stock

21

Thrust Washer

420827590

1
Out of stock

22

NEEDLE PIN - Call your local BRP dealership

420232971

1
Out of stock

23

SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership

420240404

—
Out of stock

24

Oil Pump Gear (40 Teeth)

711635030

—
Out of stock

25

Snap Ring

420245330

1
Out of stock

26

Ring Housing

711610130

—
Out of stock

27

Hex. Flange Screw M6 x 16

711241751

—
Out of stock

28

Oil Pipe

711224622

—
Out of stock

29

Holding Strip

711627437

—
Out of stock

30

Socket Screw M6 x 90

711241481

—
Out of stock

31

Holding Strip

711627432

—
Out of stock

32

Elastic Stop Nut M6

232561414

1
Out of stock

33

Piston

711256590

—
Out of stock

34

Compression Spring

711238020

—
Out of stock

35

Aluminum Sealing Ring

420250016

1
Out of stock

36

Plug Screw M12 x 1,5

420241701

1
Out of stock

37

Plug Screw

711840651

—
Out of stock

38

Oil Sieve

711256572

—
Out of stock

39

O-Ring

711931385

—
Out of stock

40

Oil Collector

711256652

—
Out of stock

41

RUBBER RING - Call your local BRP dealership

711650950

—
Out of stock

42

Oil Sieve Cover

711211941

—
Out of stock

43

Hex. Flange Screw M6 x 20

711241861

—
Out of stock

44

Stud M10 x 190

711241670

—
Out of stock

45

Loctite 243, 10 ml

293800060

1
Out of stock

46

Was 413702700 Loctite 515, 50 ml

219704462

1
Out of stock

47

Not Available As Spare Part - Friction Washer

—
Out of stock

48

Molykote G-N, 50 g

420297433

1
Out of stock

49

Bearing_Ball - Call your local BRP dealership

420932650

—
Out of stock

50

Oil Seal

711650700

—
Out of stock

51

Ball Bearing

420932822

1
Out of stock

52

Ball Bearing

420932816

1
Out of stock

53

Ball Bearing 6304E

290932095

—
Out of stock

54

BALL BEARING - Call your local BRP dealership

420432120

—
Out of stock

55

Roller Bearing

711232280

—
Out of stock

56

Crankcase Gasket

711650422

—
Out of stock

57

Seat Valve Sleeve

711256602

—
Out of stock

58

Piston Valve

420256638

1
Out of stock

59

Compression Spring | 7413/7414. 7415/7416. 7417/7418.

711938785

—
Out of stock

60

O-Ring

420250050

1
Out of stock

61

Plug Screw M24

711640790

—
Out of stock

62

Needle Pin

420229475

2
Out of stock

63

Groove Pin M4 x 20

711229170

—
Out of stock

64

Oil Separating Foam

711256720

—
Out of stock

65

SOLENOID VALVE GASKET - Call your local BRP dealership

420650630

1
Out of stock

66

Soleno‹d Valve

711256540

—
Out of stock

67

Gasket

420650636

1
Out of stock

68

Sealant Loctite 648

219703000

1
Out of stock

69

Grease, Super Lube

293550030

1
Out of stock

70

Gasket Set Engine

711296372

—
Out of stock

71

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

—
Out of stock

72

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

—
Out of stock

73

MALE TERMINAL - Call your local BRP dealership

409014800

—
Out of stock
