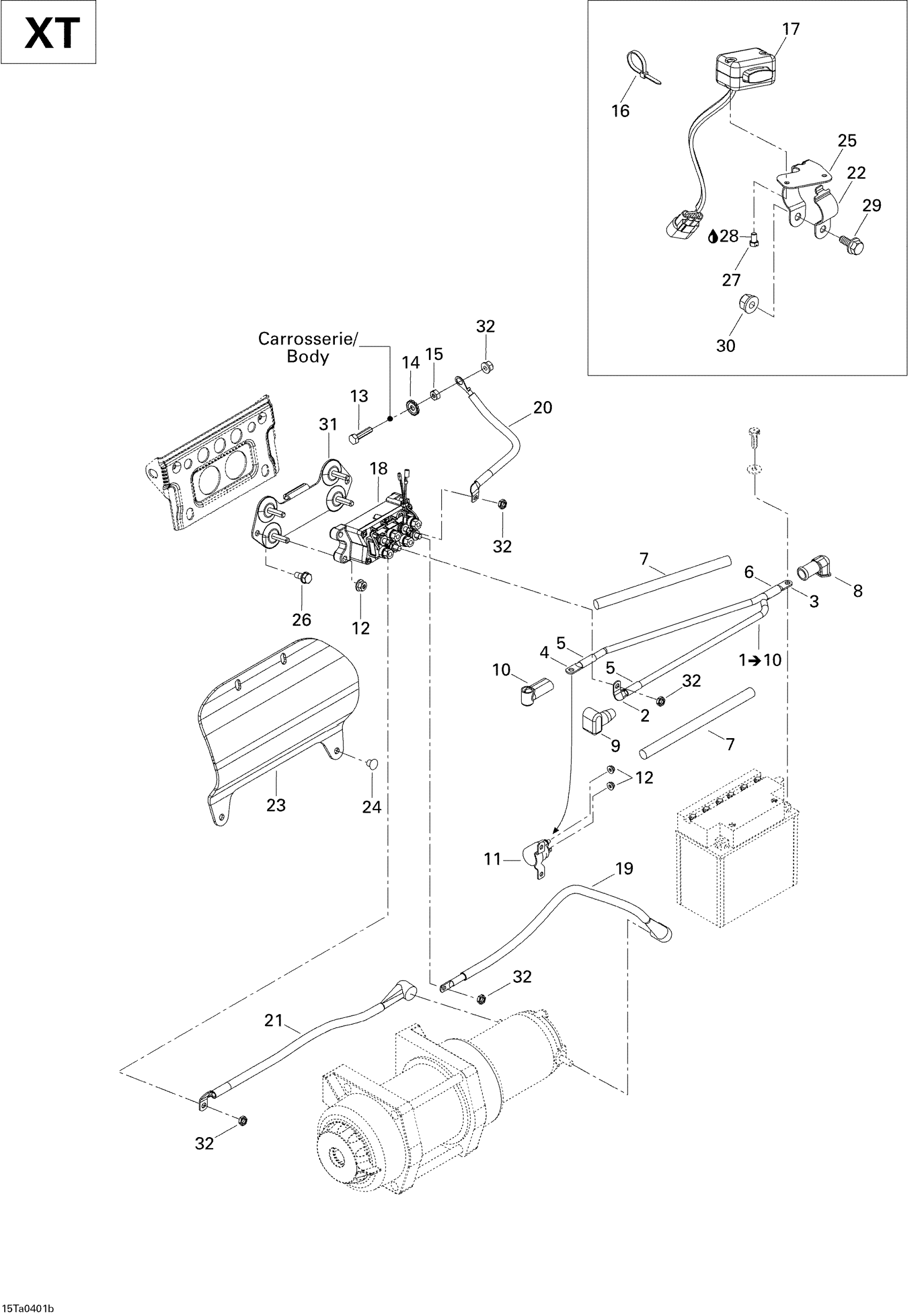

Can-Am Traxter Max Std & Max XT, 2004 Electrical Accessories (Traxter Max XT) Diagram

#

Description
Price

1

Battery Winch Solenoid Cable | Includes 1 to 10

710000466

Unavailable

2

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

$7.66

3

FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership

710000478

Unavailable

4

Flat Open Barel 6.6 mm

710000479

Unavailable

5

Was 710000483 Heat Shrink Tubing

219704447

$74.58

6

Shrink Tubing | XT Models

275500578

Unavailable

7

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

8

Protector Cap

710000495

$10.14

9

Protector Cap | STD Models

710000523

Unavailable

10

Protector Cap

710000527

Unavailable

11

Starter Relay

515176011

$51.97

12

Elastic Stop Nut M6

232561414

$1.55

13

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

14

External Serrated Lock Washer 6 mm

234461608

$0.92

15

Hex. Nut M6

232061414

$0.44

16

Tie-Rap 180 mm

414115200

$0.09

17

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

18

Winch Solenoid | XT Models

710001000

$117.66

19

Winch Solenoid Cable Ass'y | Includes 17 to 21

710000438

Unavailable

20

Frame Solenoid Cable Ass'y | Includes 22 to 25

710000439

Unavailable

21

Winch Solenoid Cable Ass'y | Includes 26 to 31

710000440

Unavailable

22

Collar

710000566

Unavailable

23

Protector Pad

710000511

Unavailable

24

Black, Dart

293730011

$0.79

25

Support, Black

710000564

Unavailable

26

Hex. Forming Screw M6 X 10

210261050

$1.42

27

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

28

Loctite 243, 10 ml

293800060

$20.77

29

Hex. Flange Screw M6 X 16

207661654

$1.74

30

Hex. Flange Elastic Nut M6

233261494

$1.26

31

SOLENOID SUPPORT, BLACK - Call your local BRP dealership

710000535

$12.28

32

Elastic Stop Nut M6

232561414

$1.55
