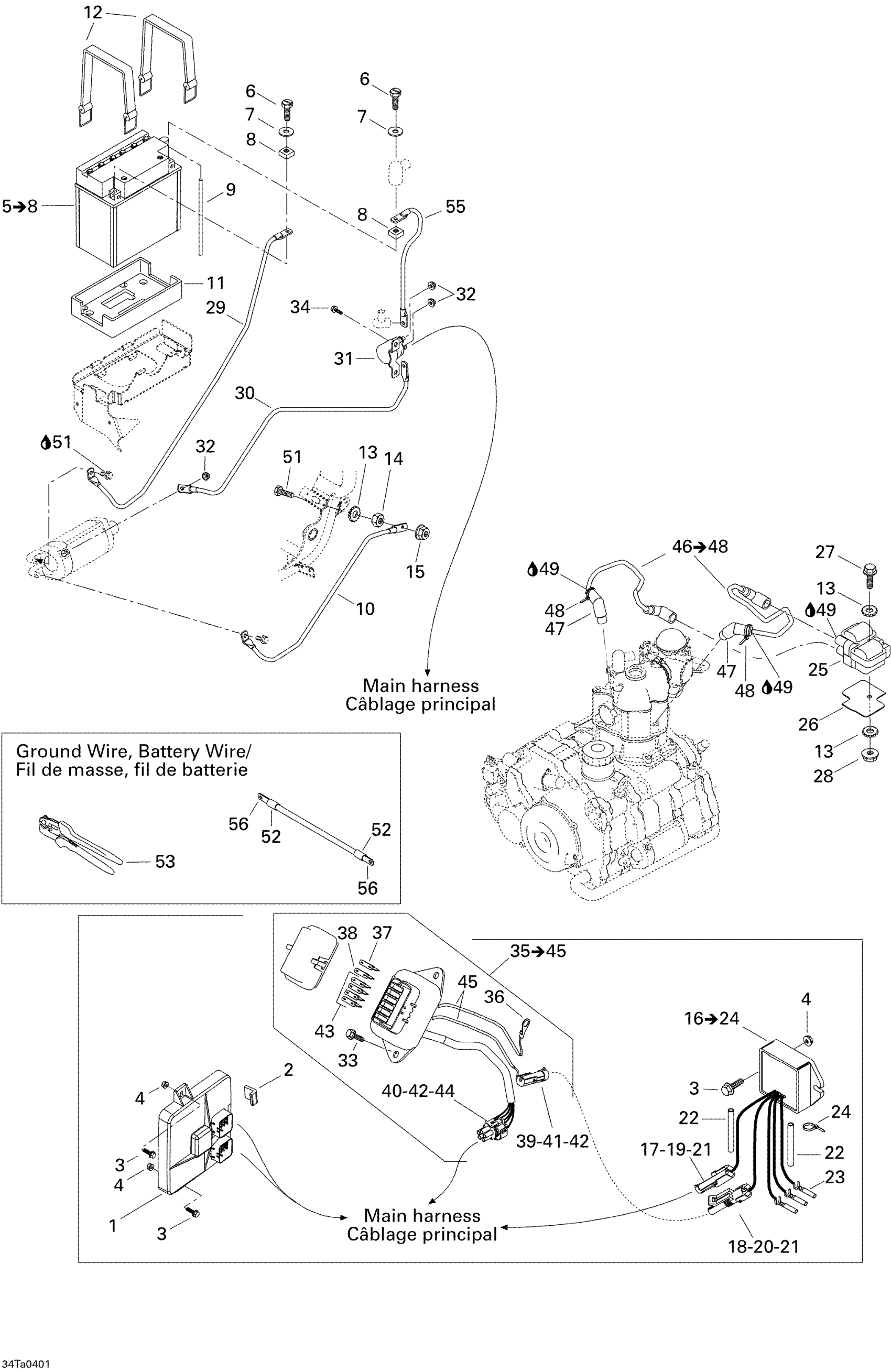

Can-Am Traxter Max Std & Max XT, 2004 Battery And Electrical Accessories Diagram

#

Description
Price

1

ELECTRONIC MODULE - Call your local BRP dealership

710000315

Unavailable

2

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

Unavailable

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

5

Battery 19A | Includes 5 to 8

278001756

Unavailable

6

Hex. Screw M6 X 16

207161644

Unavailable

7

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

8

Hex. Nut M6

232061414

$0.44

9

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

10

Battery Ground Cable

710000022

Unavailable

11

Lower Battery Pad

278001746

Unavailable

12

Retainer Strap

293850097

Unavailable

13

External Serrated Lock Washer 6 mm

234461608

Unavailable

14

Hex. Nut M6

232061414

$0.44

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

16

VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 18 to 26

710000100

Unavailable

17

Male Terminal | XT Models

278000222

$2.55

18

Female Terminal

278000223

Unavailable

19

Female Housing, 1 Circuit

278000161

Unavailable

20

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

21

Wire Seal

278000218

Unavailable

22

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

23

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

24

Tie Wrap 94 mm | 4X4

293750001

$0.83

25

Ignition Coil

278001546

Unavailable

26

Insulator Pad

710000073

Unavailable

27

Hex. Flange Screw M6 X 50

207665044

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

29

Engine Ground Cable

710000211

Unavailable

30

STARTER POSITIVE CABLE - Call your local BRP dealership

710000136

Unavailable

31

Starter Relay

515176011

Unavailable

32

Hex. Elastic Stop Nut M6

232561600

$0.92

33

Hex. Flange Screw M6 X 16

210261650

$1.22

34

Hex. Self-threaded Screw 1/4"-20 X 3/4"

250000061

Unavailable

35

FUSE HOLDER ASS'Y - Call your local BRP dealership | Includes 42 to 53

710000579

$102.28

36

Open Barrel Terminal

278001392

Unavailable

37

Fuse, 30 Amperes

410917200

$3.22

38

Fuse, 20 Amperes

409003900

$3.22

39

Male Terminal

409004300

$5.46

40

Female Terminal

409007300

$0.36

41

Female Housing, 1 Circuit

278000161

Unavailable

42

Wire Seal

278000218

Unavailable

Wire Seal

710000048

Unavailable

43

Fuse, 15 Amperes

278000343

$2.72

44

Female Housing, 5 Circuit

710000106

Unavailable

45

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

46

Ens Fil Bougie *Wire-Spark Kit | Includes 54 to 57

703500744

$64.58

47

Spark Plug Connector

420265248

Unavailable

48

Tie Wrap 94 mm | 4X4

293750001

$0.83

49

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

50

Loctite 243, 10 ml

293800060

$20.77

51

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

52

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

53

Crimp Plier

529035730

Unavailable

54

Ground Cable Battery, no 6, meter)

278001680

Unavailable

55

Cable Battery, no 6, meter)

278001690

Unavailable

56

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable
