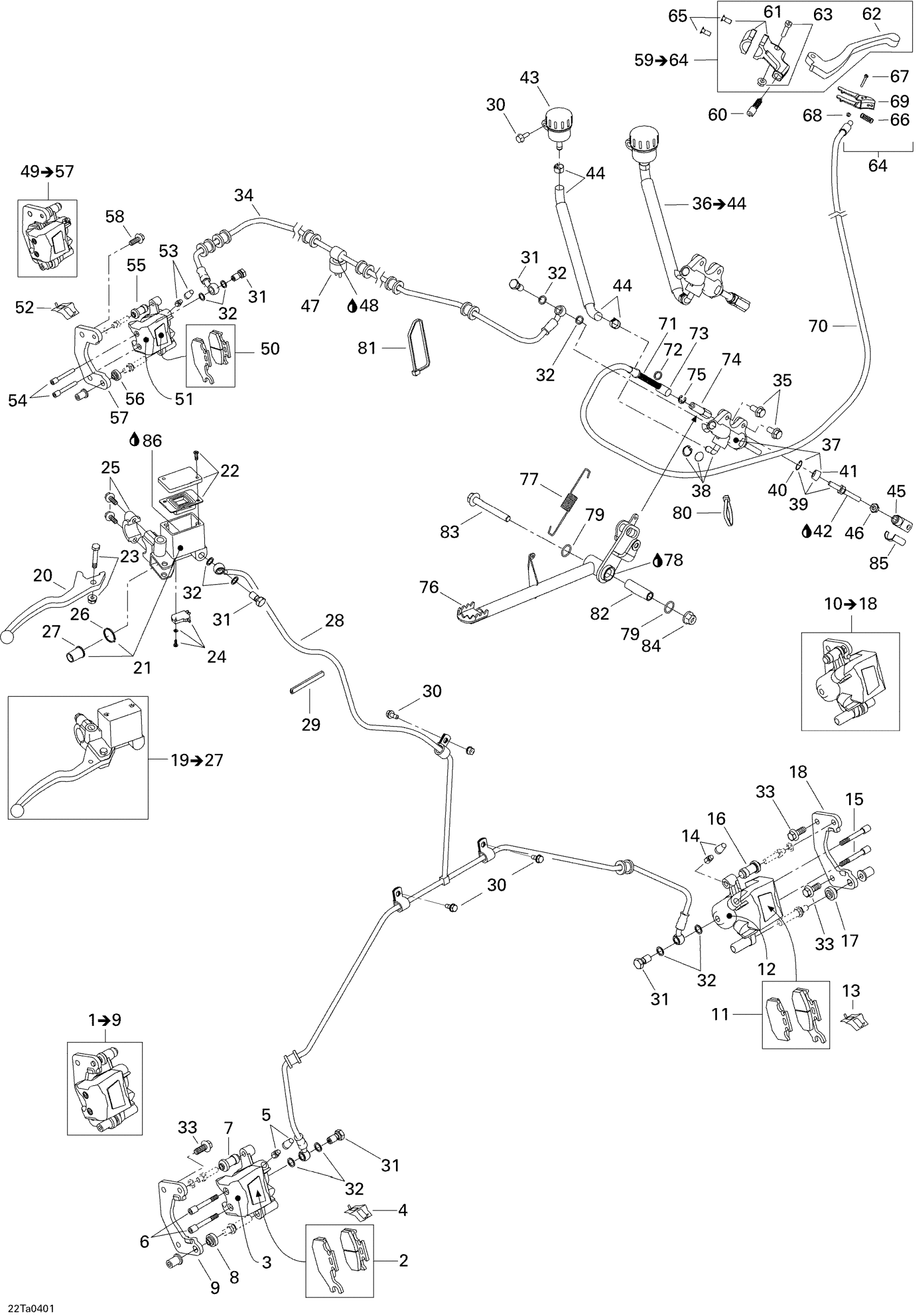

Can-Am Traxter Max Std & Max XT, 2004 Hydraulic Brake Diagram

#

Description
Price

1

RH Caliper | Includes 1 To 9

705600118

Unavailable

2

Brake Pad Kit

705600004

Unavailable

3

Piston Set

705600078

$36.89

4

Spring

705600079

Unavailable

5

Bleeding Screw

705600080

Unavailable

6

Pin Set (2)

705600081

Unavailable

7

Compression Boot

705600082

Unavailable

8

Compression Boot

705600083

Unavailable

9

Lining Support

705600149

Unavailable

10

LH Caliper | Includes 10 To 18

705600119

Unavailable

11

Brake Pad Kit

705600014

Unavailable

12

Piston Set

705600078

$36.89

13

Spring

705600079

Unavailable

14

Bleeding Screw

705600080

Unavailable

15

Pin Set (2)

705600081

Unavailable

16

Compression Boot

705600082

Unavailable

17

Compression Boot

705600083

Unavailable

18

Lining Support

705600149

Unavailable

19

FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600120

Unavailable

20

LEVER ARM - Call your local BRP dealership

705600164

Unavailable

21

PISTON KIT - Call your local BRP dealership

705600152

$59.97

22

Cap Set

705600084

$23.05

23

BOLT KIT - Call your local BRP dealership

705600085

$13.05

24

SWITCH KIT - Call your local BRP dealership

705600148

$62.28

25

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

26

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

27

COMPRESSION BOOT - Call your local BRP dealership

705600089

$9.74

28

Brake Hose

705600290

$170.74

29

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

30

Hex. Flange Screw M6 X 16

210261650

$1.22

31

Banjo Bolt (M10 x 1.25 thread)

705600609

Unavailable

32

Washer

414920600

Unavailable

33

Hex. Screw M10 X 20, Scotch Grip

250000057

Unavailable

34

REAR BRAKE FLEXIBLE HOSE - Call your local BRP dealership

705600336

Unavailable

35

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

36

Rear Master Cylinder | Includes 37 To 46

705600347

Unavailable

37

Piston Set

705600063

Unavailable

38

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

39

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership

705600154

Unavailable

40

Circlip

705600068

Unavailable

41

Compression Boot

705600090

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

44

BRAKE HOSE SET - Call your local BRP dealership

705600348

$20.74

45

Yoke

705600100

Unavailable

46

Hex. Nut M8

232081414

Unavailable

47

Interrupteur *Brake Switch

710001345

Unavailable

48

Was 293800013 Loctite 56765

219704454

Unavailable

49

REAR CALIPER - Call your local BRP dealership | Includes 51 To 59

705600122

Unavailable

50

Brake Pad Kit

705600150

$49.97

51

Piston Set

705600078

$36.89

52

Spring

705600079

Unavailable

53

Bleeding Screw

705600080

Unavailable

54

Pin Set (2)

705600081

Unavailable

55

Compression Boot

705600082

Unavailable

56

Compression Boot

705600083

Unavailable

57

Lining Support

705600149

Unavailable

58

Hex. Screw M10 X 14, Scotch Grip

250000163

Unavailable

59

Brake Handle | Includes 61 To 66

705600011

Unavailable

60

Cable Screw

250000030

Unavailable

61

CLAMP KIT - Call your local BRP dealership

705600184

$65.35

62

LEVER - Call your local BRP dealership

705600186

$60.74

63

Pivot Kit

705600187

Unavailable

64

Lever Lock Kit

705600188

Unavailable

65

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

66

SPRING - Call your local BRP dealership

705600225

$3.05

67

Screw M3 X 22

208032291

Unavailable

68

Elastic Stop Nut M3

232531423

$0.54

69

LOCK LEVER - Call your local BRP dealership

705600387

$13.05

70

REAR BRAKE CABLE - Call your local BRP dealership

705600099

Unavailable

71

SPRING - Call your local BRP dealership

705600144

$4.58

72

FLAT WASHER - Call your local BRP dealership

705600145

$4.58

73

CABLE BARREL - Call your local BRP dealership

705600146

$10.74

74

NUT - Call your local BRP dealership

705600147

Unavailable

75

Circlip

705600272

$7.69

76

Brake Pedal

705600322

Unavailable

77

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

$18.43

78

Synthetic Grease, 400 G

293550010

Unavailable

79

O-RING - Call your local BRP dealership

293300053

$5.35

80

Tie-Rap 180 mm

414115200

$0.09

81

Tie Wrap 368 mm

293750008

$0.85

82

Spacer

705600327

Unavailable

83

Hex. Flange Screw M10 X 75

207607544

Unavailable

84

Hex. Flange Elastic Nut M10

233201414

$1.26

85

Pin Kit

219702305

Unavailable

86

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable
