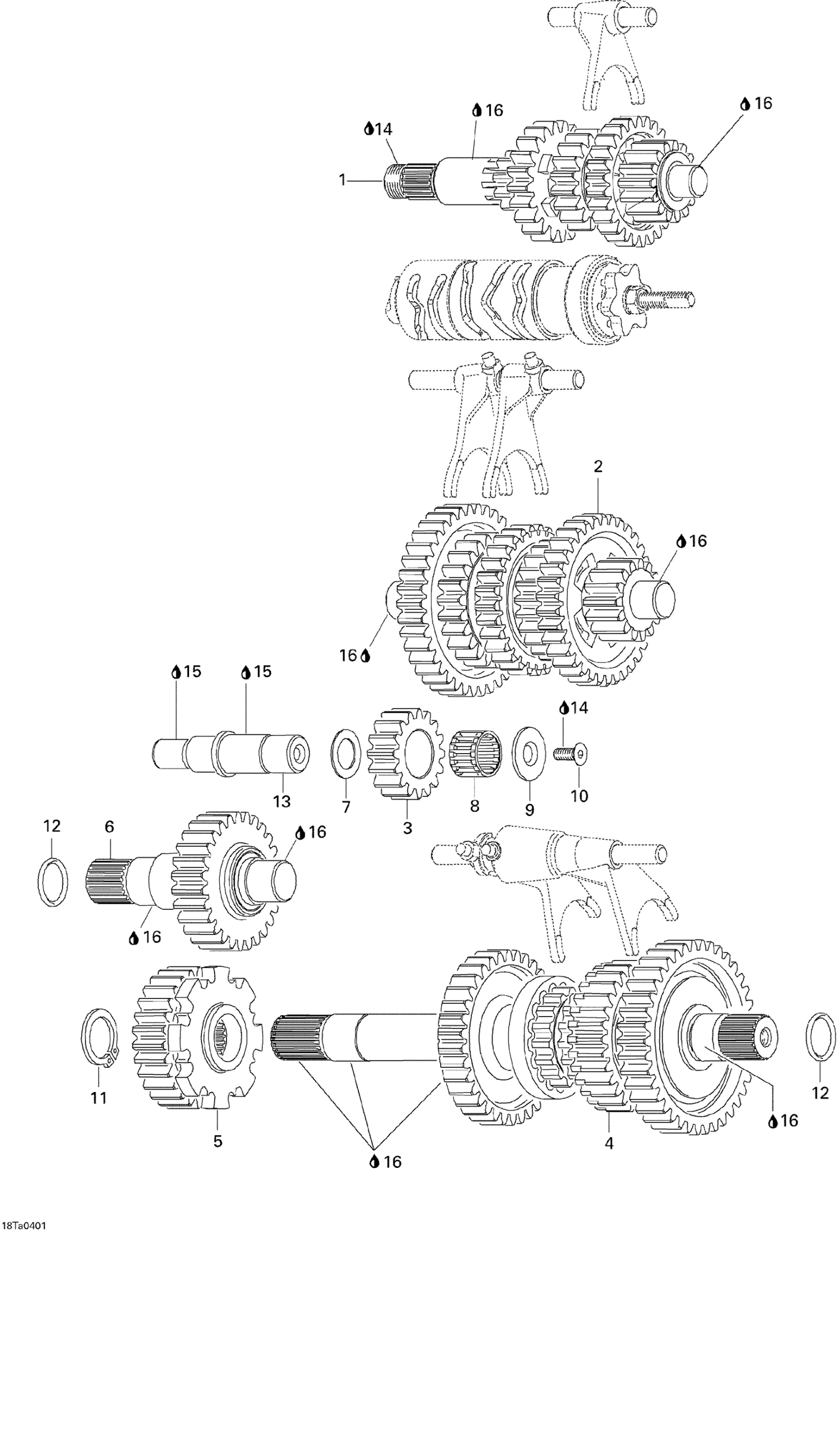

Can-Am Traxter Max Std & Max XT, 2004 Transmission Diagram

#

Description
Price

1

Countershaft

420220487

Unavailable

2

Main Shaft Ass'y

420220509

Unavailable

3

Sliding Gear

420634890

Unavailable

4

Rear Output Shaft

420220497

Unavailable

5

OUTPUT GEAR 28 TEETH - Call your local BRP dealership

420634925

$161.51

6

Front Output Shaft

420220522

Unavailable

7

THRUST WASHER - Call your local BRP dealership

420227440

Unavailable

8

NEEDLE CAGE - Call your local BRP dealership

420632230

$16.89

9

STOP WASHER - Call your local BRP dealership

420244270

Unavailable

10

Screw M6 X 20

420941436

Unavailable

11

CIRCLIP - Call your local BRP dealership

420945870

Unavailable

12

O-Ring

420430373

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Loctite 243, 10 ml

293800060

$20.77

15

Grease, Super Lube

293550030

Unavailable

16

Was 420297616 Klueber Grease, 60g

219704464

Unavailable
