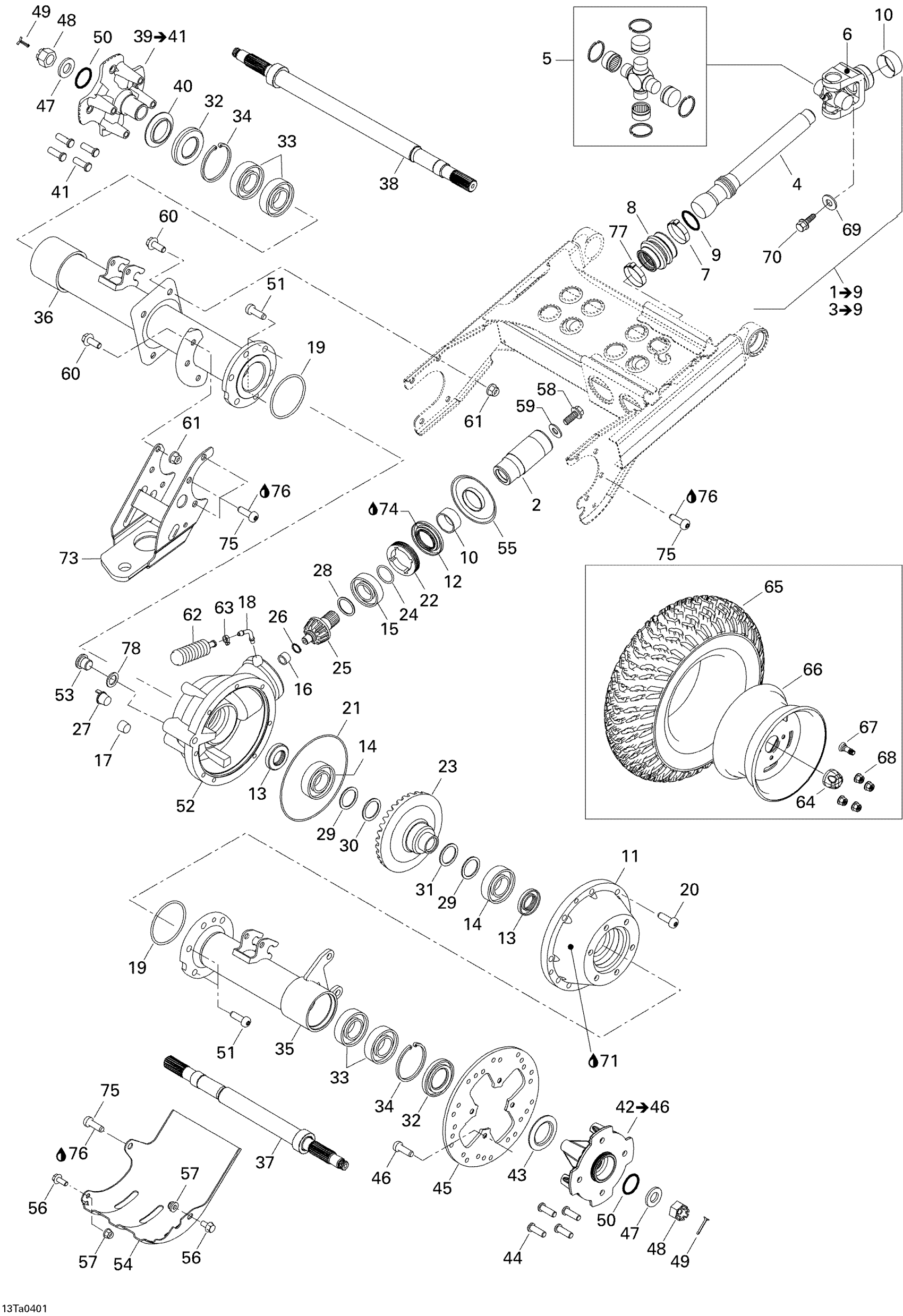

Can-Am Traxter Max Std & Max XT, 2004 Drive System, Rear Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Front Bushing Shaft Kit | 4X4
703500678
Unavailable
7
Collar | 4X4
705400148
Unavailable
8
Protector
705400147
Unavailable
10
Wear Ring | 4X4
705400036
Unavailable
11
Rear Cover
705500175
Unavailable
12
Oil Seal
705500248
Unavailable
13
Gasket | 4X4
705401618
Unavailable
14
Ball Bearing | 4X4
705401606
Unavailable
15
Ball Bearing | 4X4
705500260
Unavailable
16
Needle Bearing | 4X4
705500261
Unavailable
20
Screw | 4X4
705401601
Unavailable
22
Nut | 4X4
705401603
Unavailable
24
O-Ring | 4X4
705500267
Unavailable
25
GEAR, 10 TEETH - Call your local BRP dealership | 4X4
705500268
Unavailable
27
PROTECTION PLUG - Call your local BRP dealership
705500516
Unavailable
28
Pinion Gear Shim 1.67 mm
705502061
Unavailable
29
Shim | 4X4
705401604
Unavailable
30
Pinion Gear Shim .022"
705500075
Unavailable
31
Shim | 4X4
705401604
Unavailable
33
BALL BEARING - Call your local BRP dealership
705500251
Unavailable
35
RH AXLE TUBE - Call your local BRP dealership
705500250
Unavailable
40
WEAR RING - Call your local BRP dealership
705500100
Unavailable
41
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
42
Rear Wheel Hub | INCLUDES ITEMS 42 TO 46
705500449
Unavailable
43
WEAR RING - Call your local BRP dealership
705500100
Unavailable
44
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
45
Brake Disc
705600343
Unavailable
48
Hex. Flange Castellated Nut M18
232291413
Unavailable
50
O-RING - Call your local BRP dealership
705500271
Unavailable
51
Torx Screw M10 X 30
250000085
Unavailable
53
Fill Level Plug | 4X4
705500504
Unavailable
54
Differential Protector, Black
705500185
Unavailable
55
JOINT PROTECTOR - Call your local BRP dealership
705500214
Unavailable
56
Hex. Flange Screw M8 X 16
207681644
Unavailable
57
Hex. Flange Nut M8
233181414
Unavailable
58
Flange Screw M10 X 16, Scotch Grip | 4X4
250000060
Unavailable
60
Hex. Flange Screw M10 X 25
207602544
Unavailable
62
Rubber Bellow | 4X4
705400552
Unavailable
64
WHEEL CAP - Call your local BRP dealership
705400012
Unavailable
65
Rear Tire
705500230
Unavailable
66
Rear Rim, Grey
705500239
Unavailable
Rear Rim, Chrome | Quest XT.
705500339
Unavailable
67
Rim Valve With Cap
705400193
Unavailable
68
HEX. NUT - Call your local BRP dealership
705400013
Unavailable
69
Washer
211200041
Unavailable
70
HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership
207681686
Unavailable
71
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
Unavailable
73
Trailer Hook, Black
705500244
Unavailable
74
Synthetic Grease, 400 G
293550010
Unavailable
75
Torx Screw M10 X 30
250000085
Unavailable
77
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
78
Copper Washer | 4X4
705500506
Unavailable
