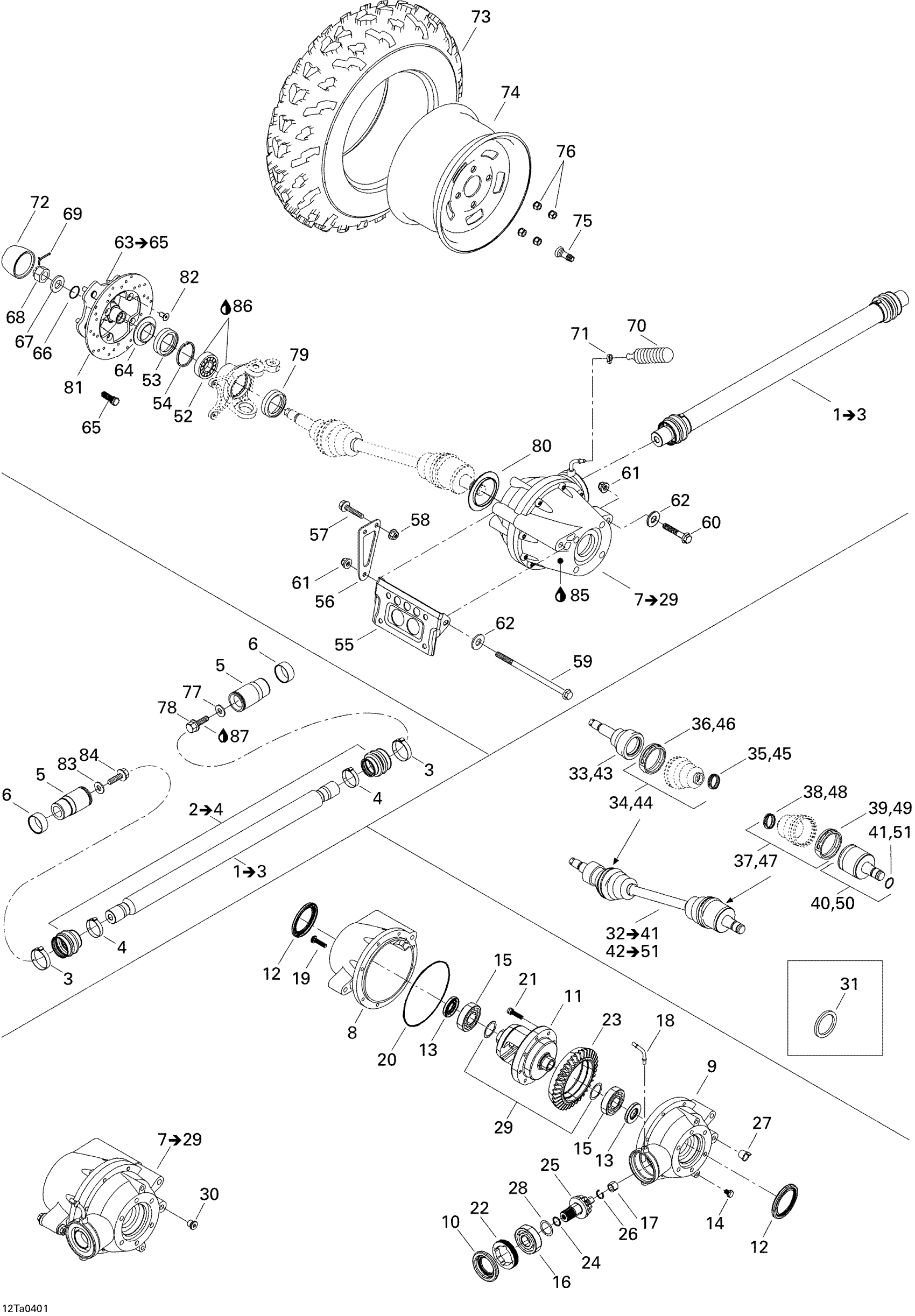

Can-Am Traxter Max Std & Max XT, 2004 Drive System, Front Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership | INCLUDES 1 TO 3

705400236

Unavailable

2

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

3

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

4

Collar | 4X4

705400148

Unavailable

5

Front Bushing Shaft Kit | 4X4

703500678

$101.46

6

Wear Ring | 4X4

705400036

$24.60

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Front Cover

705400099

Unavailable

9

PINION REAR COVER - Call your local BRP dealership

705500515

Unavailable

10

Oil Seal | 4X4

705401481

$17.88

11

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

12

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

13

Gasket | 4X4

705401618

$17.13

14

Drain Plug | 4X4

705500894

$10.24

15

Ball Bearing | 4X4

705401606

$47.73

16

Ball Bearing | 4X4

705500260

$29.82

17

Needle Bearing | 4X4

705500261

Unavailable

18

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

19

Screw | 4X4

705401601

$8.67

20

Seal | 4X4

705500265

$15.64

21

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

22

Nut | 4X4

705401603

$33.55

23

Crown Gear

705400103

Unavailable

24

O-Ring | 4X4

705500267

$6.06

25

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

27

PROTECTION PLUG - Call your local BRP dealership

705500516

Unavailable

28

Pinion Gear Shim 1.67 mm

705502061

$15.64

29

Shim | 4X4

705401604

$51.46

30

Fill Level Plug | 4X4

705500504

$8.73

31

Copper Washer | 4X4

705500506

$0.42

32

RH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400125

Unavailable

33

CV JOINT - Call your local BRP dealership

705400093

Unavailable

34

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$39.52

35

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

36

Clamp | 4X4

705400180

Unavailable

37

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$39.52

38

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

39

Clamp | 4X4

705400181

Unavailable

40

RH Plunging Joint

705400128

Unavailable

41

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

42

LH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400124

Unavailable

43

CV JOINT - Call your local BRP dealership

705400093

Unavailable

44

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$39.52

45

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

46

Clamp | 4X4

705400180

Unavailable

47

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$39.52

48

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

49

Clamp | 4X4

705400181

Unavailable

50

LH Plunging Joint

705400129

Unavailable

51

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

52

Ball Bearing

293350150

$50.34

53

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

54

Circlip

293370019

$4.68

55

DIFFENTIAL FRONT BRACKET - Call your local BRP dealership

705400255

Unavailable

56

RH Diffential Front Bracket

705400069

Unavailable

57

Hex. Flange Screw M8 X 20

207682044

$1.06

58

Hex. Flange Elastic Nut M8

233281414

$1.31

59

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

60

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

207506044

Unavailable

61

Hex. Flange Nut M10

233101414

$4.70

62

Flat Washer

250200003

Unavailable

63

Wheel Hub Ass'y | Includes 50 - 52.

705500254

Unavailable

64

WEAR RING - Call your local BRP dealership

705500100

Unavailable

65

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

66

O-RING - Call your local BRP dealership

705500271

Unavailable

67

WASHER - Call your local BRP dealership

250200019

Unavailable

68

Hex. Flange Castellated Nut M18

232291413

$3.24

69

Cotter Pin

250400036

$2.00

70

Rubber Bellow | 4X4

705400552

$5.84

71

Tie Wrap 94 mm | 4X4

293750001

$0.96

72

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

73

Tire 205 X 80 R12

705402890

$129.82

74

Front Rim

705400010

Unavailable

Front Rim | 7423/7424 (XT-Yellow/Jaune).

705400072

Unavailable

75

Rim Valve With Cap

705400193

$6.49

76

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

77

Washer

211200041

$3.01

78

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.00

79

Oil Seal | 4X4

293250090

$21.61

80

Wear Ring

705400016

Unavailable

81

Disc Brake 205 mm

705600342

Unavailable

82

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

83

Flat Washer M10 | 4X4

250200014

$1.34

84

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

85

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$15.64

86

Synthetic Grease, 400 G

293550010

Unavailable

87

Loctite 271, 10 ml

293800005

$23.85
