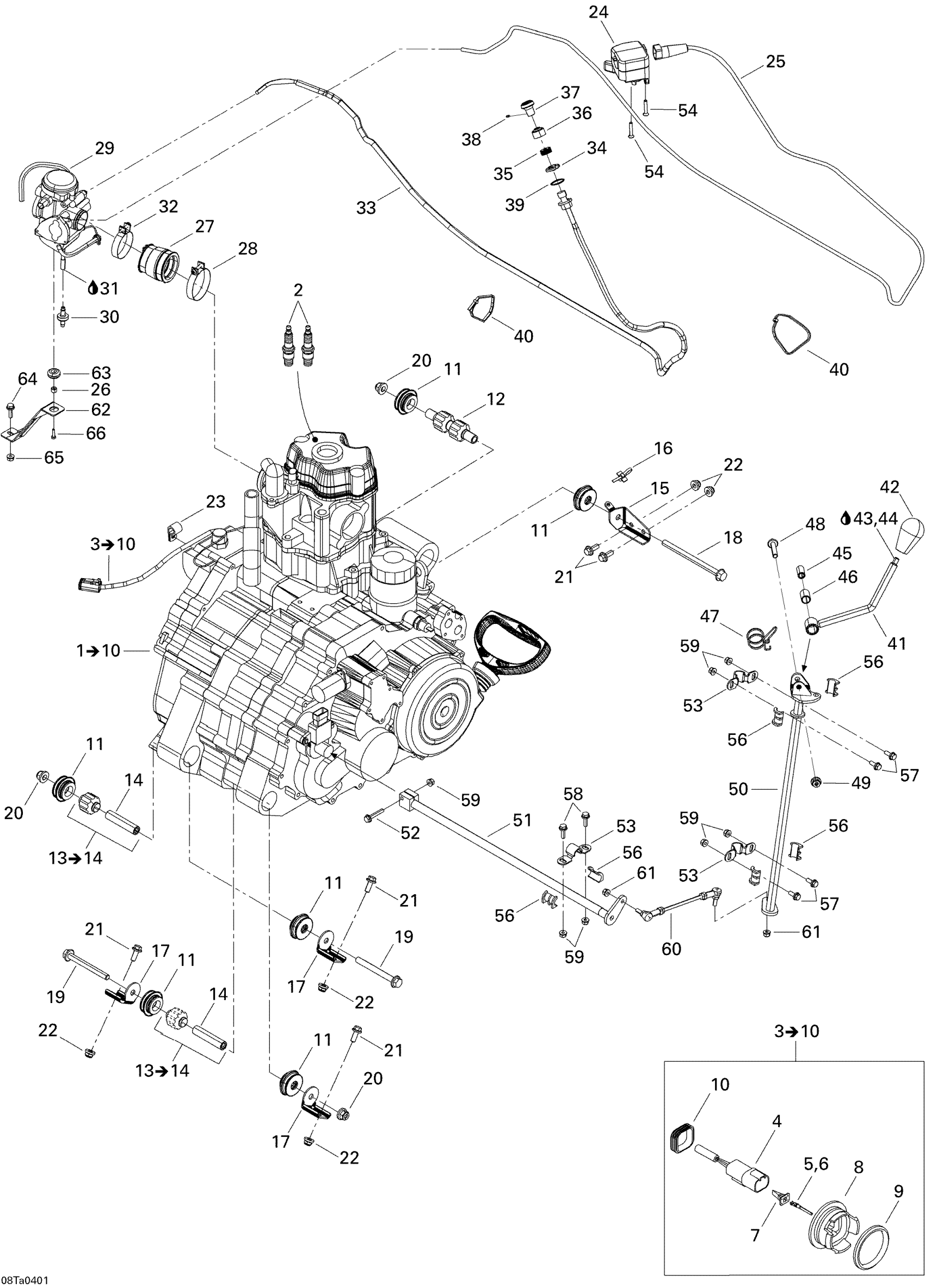

Can-Am Traxter Max Std & Max XT, 2004 Engine Support Diagram

#

Description
Price

1

Rotax 4 Strokes Engine «511» | Includes 1 to 7

707000041

Unavailable

2

Spark Plug, NGK/DR8EA

707000008

$4.03

3

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

4

Male Terminal Housing, 6 Circuits

710001539

$15.57

5

Male Terminal

278000631

$4.12

6

Male Terminal

515175823

Unavailable

7

Female Lock, 6 Circuits

278000735

$3.02

8

Adaptor

270000138

Unavailable

9

Gasket

293300033

Unavailable

10

Gasket

293200055`

Unavailable

11

Anti-Vibration Mount

707000094

Unavailable

12

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

13

Support Bushing | Includes 10 to 11

707000030

Unavailable

14

RH LOWER BUSHING - Call your local BRP dealership

707000004

$7.89

15

Front Engine Bracket, Black

707000082

Unavailable

16

Tie-Rap 173 mm

293750009

Unavailable

17

Engine Bracket

705200197

Unavailable

18

Hex. Flange Screw M10 X 140

230604044

Unavailable

19

HEX. FLANGED SCREW M10 X 95 - Call your local BRP dealership

207609544

Unavailable

20

Hex. Flange Elastic Nut M10

233201414

$1.26

21

Hex. Flange Screw M8 X 20

207682044

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Hose Retainer 13 mm

705600232

$11.06

24

Throttle Handle

707000351

Unavailable

25

THROTTLE CABLE - Call your local BRP dealership

707000311

Unavailable

26

Spacer

707000181

Unavailable

27

CARBURATOR ADAPTOR - Call your local BRP dealership

707000247

Unavailable

28

Gemi Clamp

293650157

Unavailable

29

Carburetor BSR33-28 | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

707200158

Unavailable

30

Check Valve

275500398

Unavailable

31

Glue Tube, Loctite 454, 20 G

413708300

$59.97

32

Gemi Clamp

293650156

Unavailable

33

CHOKE CABLE - Call your local BRP dealership

707000294

Unavailable

34

D SHAPE WASHER - Call your local BRP dealership

707000067

Unavailable

35

HOLDER CAP - Call your local BRP dealership

707000087

$4.58

36

Rubber Cap

707000088

Unavailable

37

BUTTON - Call your local BRP dealership

707000089

$9.20

38

PHILLIPS SCREW M3 X 5 - Call your local BRP dealership

250000108

Unavailable

39

O-RING - Call your local BRP dealership

293300075

$5.35

40

Tie-Rap 180 mm

414115200

$0.09

41

LEVER ASS'Y - Call your local BRP dealership

707000010

$25.35

42

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

43

Was 293800041 Loctite Primer 7649

219704458

Unavailable

44

Loctite 243, 10 ml

293800060

$20.77

45

BUSHING - Call your local BRP dealership

705500150

Unavailable

46

Adjuster Bushing

705500193

Unavailable

47

LEVER SPRING - Call your local BRP dealership

705500024

$11.51

48

Hex. Flange Screw M8 X 50

207685044

Unavailable

49

Hex. Flange Elastic Nut M8

233281414

Unavailable

50

Upper Tube, Black

705500358

Unavailable

51

Lower Tube

705500431

Unavailable

52

Hex. Flange Screw M6 X 35

207663544

$0.74

53

RETAINER CLAMP - Call your local BRP dealership

705500041

$5.35

54

Socket Head Screw M5 X 25

205052588

Unavailable

55

Shim 2.0 mm

707000081

Unavailable

56

Half Ring

705500033

$4.92

57

Hex. Flange Screw M6 X 16

207661644

Unavailable

58

Hex. Flange Screw M6 X 20

207662044

Unavailable

59

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

60

Tie Rod Ass'y

707000068

$33.82

61

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

62

Carburator Support

707200159

Unavailable

63

Grommet

709000582

$4.38

64

Hex. Flange Screw M6 X 20

207662044

Unavailable

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

66

Hex. Screw M4 X 16, Scotch Grip

207341644

Unavailable
