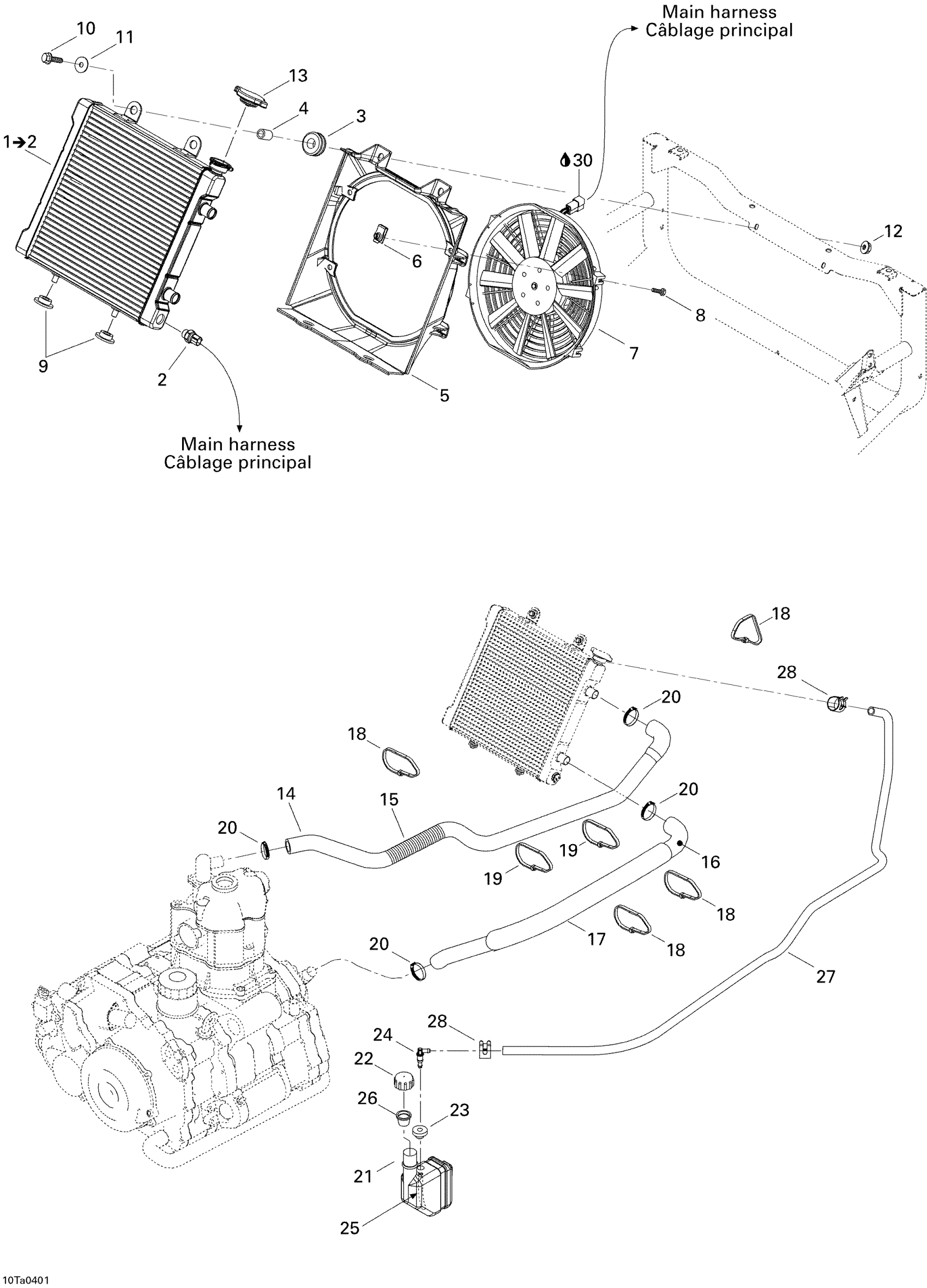

Can-Am Traxter Max Std & Max XT, 2004 Cooling System Diagram

#

Description
Price

1

RADIATOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

709200109

Unavailable

2

Temperature Sensor

715900095

$66.89

3

Grommet

709000582

$4.38

4

Bushing

293900019

Unavailable

5

OUTER SHROUD - Call your local BRP dealership

709200111

Unavailable

6

Panel Nut M6 X 1.0

250100198

Unavailable

7

FAN ASS'Y - Call your local BRP dealership | Includes 6 to 8

709200112

Unavailable

8

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

9

Grommet

705003932

$2.75

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

11

Flat Washer

250200082

Unavailable

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

13

Radiator Pressure Cap

709200207

Unavailable

14

RADIATOR INLET HOSE - Call your local BRP dealership

709200060

Unavailable

15

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable

16

OUTLET HOSE - Call your local BRP dealership

709200043

Unavailable

17

PROTECTION SHIELD - Call your local BRP dealership

709200032

Unavailable

18

Tie-Rap 180 mm

414115200

$0.09

19

Tie Wrap 368 mm

293750008

$0.85

20

Norma Spring Clamp

293650109

Unavailable

21

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

22

TANK CAP - Call your local BRP dealership

709200009

Unavailable

23

Grommet

709200285

$8.38

24

Elbow Male Connector

414580600

$3.50

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

26

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

27

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

28

Spring Clamp

414554800

$0.83

29

Grommet

709000582

$4.38

30

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
