Description

Price

10

Frame Kit

715005596

$3,239.99

30

Deep Black, Front Cage Service Kit

715008354

$649.99

35

Black, Rear Cage Kit

715003569

$649.99

37

Black, Central Cage Kit

715003770

$649.99

38

Deep Black, Cage Extension

705209848

Unavailable

50

Deep Black, Front Bumper

705207588

Unavailable

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

52

Hex. Flange Elastic Nut M8

233281414

Unavailable

70

Plate

705206316

Unavailable

71

Hex. Flange Screw M8 X 20

207682044

Unavailable

80

DPS Support

715003570

$55.35

90

Steering Column Support | Includes 90 to 90d

705209190

Unavailable

100

Deep Black, LH Protector Tube

705204594

Unavailable

105

LH Side Protect

705204590

Unavailable

110

Deep Black, RH Protector Tube

705204592

Unavailable

120

Shifting Module Support

705205171

Unavailable

200

Hex. Flange Screw M10 X 35

250000855

$1.46

210

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

220

Offset Washer

705202223

Unavailable

230

Torx Truss M6X14

250000789

$4.41

240

Hex. Flange Elastic Nut M10

233201436

Unavailable

250

Flange Elastic Nut M10

233201466

Unavailable

260

Hex. Flange Screw M10 X 6

207606046

Unavailable

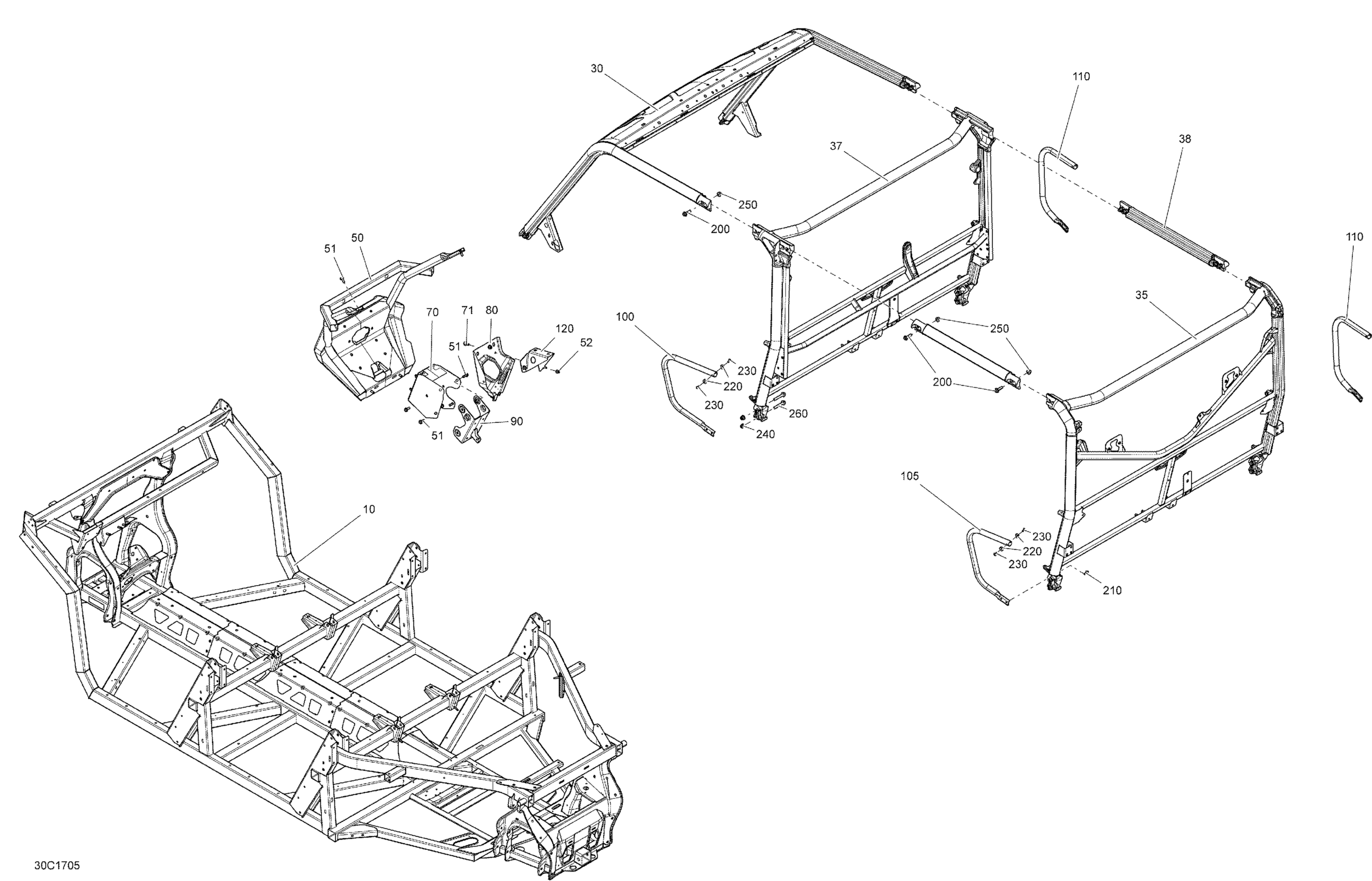

Can-Am Traxter MAX, 2017 Frame - All Models Diagram

Deep Black, Cage Extension

Deep Black, Front Bumper

Hex. Flange Elastic Nut M8

Plate

Hex. Flange Screw M8 X 20

Steering Column Support | Includes 90 to 90d

Deep Black, LH Protector Tube

LH Side Protect

Deep Black, RH Protector Tube

Shifting Module Support

Offset Washer

Hex. Flange Elastic Nut M10

Flange Elastic Nut M10

Hex. Flange Screw M10 X 6
