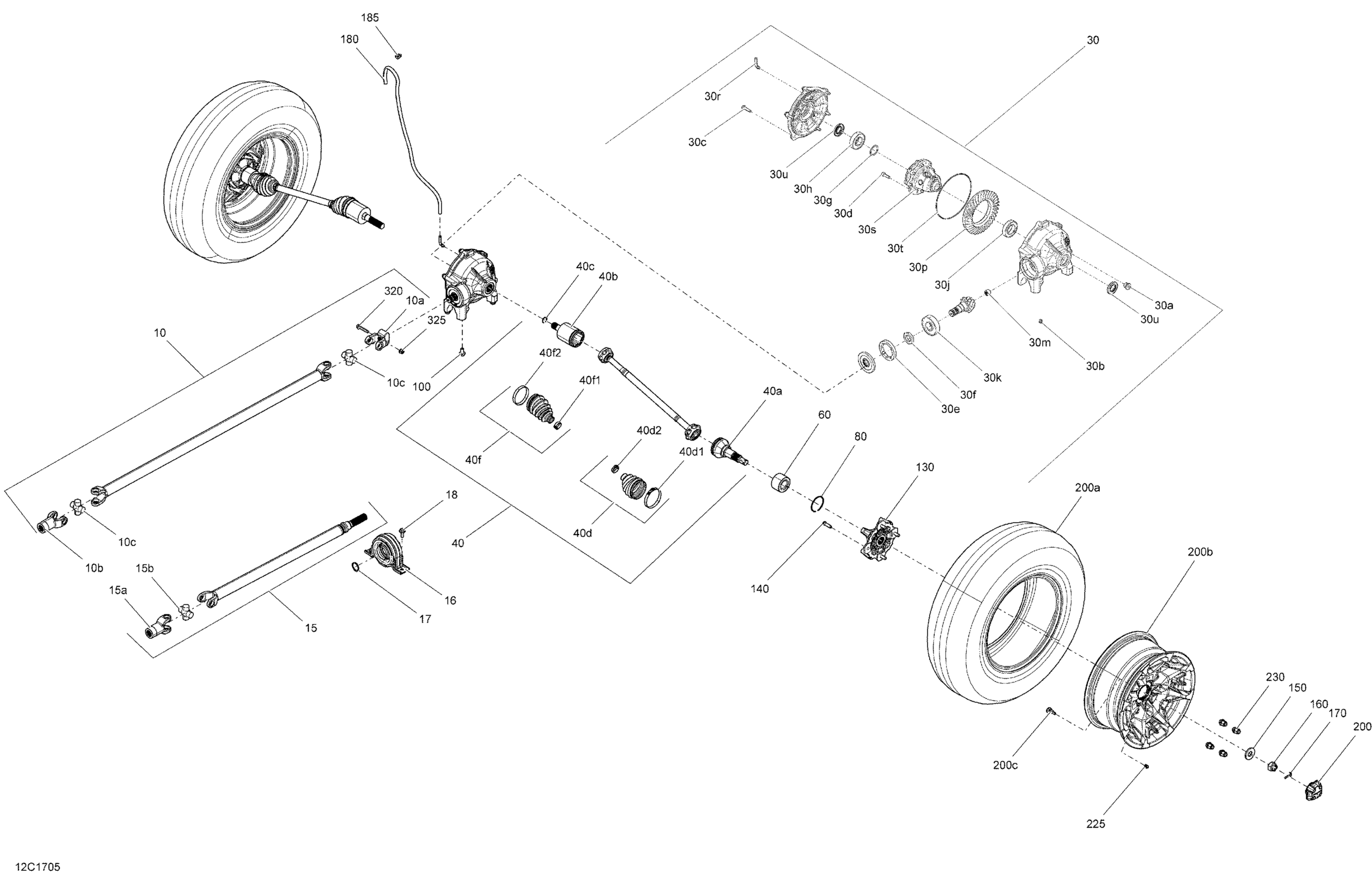

Can-Am Traxter MAX, 2017 Drive System, Front - All Models Diagram

#

Description
Price

10

Axle Ass'y

705402125

Unavailable

10a

Fixed Yoke

715900400

$59.97

10b

Yoke

715900401

$36.89

10c

J-Joint Cross Kit

715900402

$87.66

15

Drive Axle Ass'y | Includes 15 to 15b

705403287

$313.82

15a

Yoke

715900401

$36.89

15b

J-Joint Cross Kit

715900402

$87.66

16

Ball Bearing Ass'y

705403522

$46.12

17

Snap Ring

293370098

Unavailable

18

Hex. Flange Screw M10 X 25

207602544

Unavailable

19

Hex. Flange Elastic Nut M10

233201414

$1.26

30

Front Differential Ass'y | Includes 30 to 30y

705402995

$1,338.43

30a

Fill Level Plug

705501889

Unavailable

30b

Drain Plug | After May 30, 2014

705501885

Unavailable

30c

Bolt

705501886

$6.75

30d

Screw

705402375

Unavailable

30e

Nut M75 X 1.5

705401819

Unavailable

30f

Nut M27 X 1.5

705401820

Unavailable

30g

Shim | 4X4

705401604

Unavailable

30h

Ball Bearing | 4X4

705401606

Unavailable

30j

Ball Bearing

705402847

Unavailable

30k

Ball Bearing

705401821

Unavailable

30m

Ball Bearing | After May 30, 2014

705402848

Unavailable

30n

Front Cover

705401667

Unavailable

30p

Ring Gear 36 Teeth

705402788

$359.97

30q

Pinion 10 th.

705401933

Unavailable

30r

Vent Valve

705401935

Unavailable

30s

Differential | Base Package

705402377

Unavailable

30t

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$8.45

30u

Oil Seal

705401836

Unavailable

30v

Oil Seal, Triple Lip 25 X 79 X 8

705401827

Unavailable

40

RH Front - Premium CV Axle | Includes 40 to 40f2

705401936

Unavailable

40

LH Front - Premium CV Axle | Includes 50 to 50f2

705401937

Unavailable

40a

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

40b

RH Plunging Joint

715900441

Unavailable

40b

LH Plunging Joint

715900442

Unavailable

40c

Circlip Joint | Not shown

705401349

Unavailable

40d

Boot Kit, Wheel Side

705401345

Unavailable

40d1

Oetiker Clamp

715900282

Unavailable

40d2

Oetiker Clamp, Small

715900283

Unavailable

40f

Boot Kit, Différential Side

705401355

Unavailable

40f1

Oetiker Clamp, Small

715900261

Unavailable

40f2

Oetiker Clamp, Large

715900262

$7.84

60

Ball Bearing

293350150

Unavailable

80

Circlip

293370019

Unavailable

100

Hex. Flange Screw M10 X 20

207502046

Unavailable

130

Wheel Hub

705502338

$115.35

140

Wheel Stud M10 X 1.25 | 2X4

250300055

Unavailable

150

Washer M20

250200147

$12.91

160

Castle Nut M20

250100193

$6.66

170

Cotter Pin

250400071

Unavailable

180

Polyurethane Hose 10000Mm Long

219704410

Unavailable

185

Clip

414227300

$1.45

200

Wheel Cap | Package XMR 850, XMR 1000

705401541

Unavailable

200a

Front Tire

705402168

Unavailable

200b

Deep Black, 14" X 6.5 Front Rim

705401849

Unavailable

200c

Rim Valve With Cap

705400193

Unavailable

225

Valve Cap

293000110

Unavailable

230

Black, Wheel Nut M10 X 1.25

250100184

Unavailable

320

Hex. Flange Screw M8 X 42

250001050

$0.95

325

Hex. Elastic Flange Nut M8

233281416

Unavailable
