Partiron

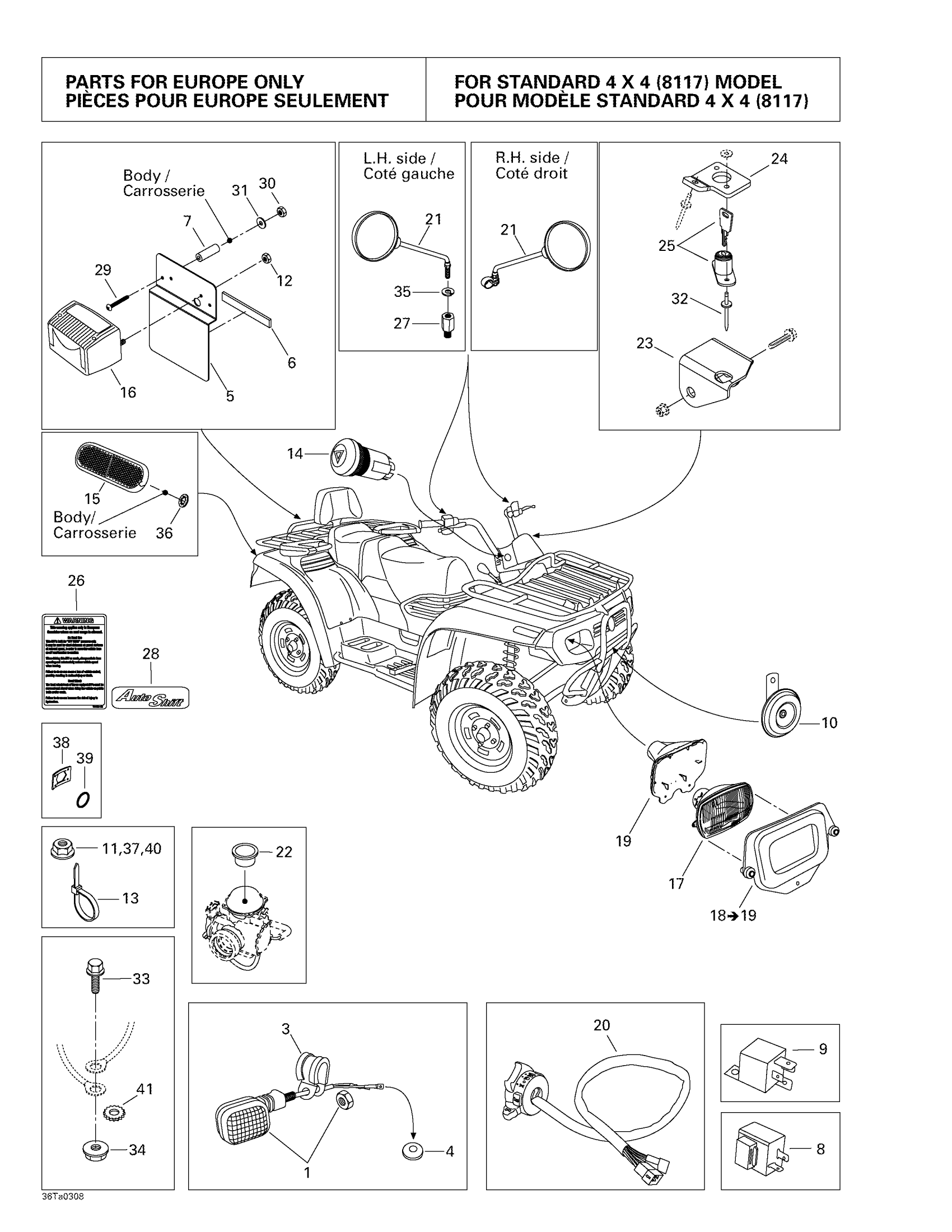

Can-Am Traxter Max, 2003 Homologation Kit For Europe Diagram

#

Description
Price

1

Flashing Light

710000360

Unavailable

Flashing Light

710000361

Unavailable

2

Female Terminal (not shown)

710000385

Unavailable

3

Collar

710000362

Unavailable

4

Grommet

414036300

$2.22

5

Tail light support

705000658

Unavailable

6

Gasket, Neoprene 2000Mm Long

219704476

$12.64

7

Spacer

705000659

Unavailable

8

Flasher Unit

710000363

$36.12

9

RELAY 12 V. - Call your local BRP dealership

710000364

$33.82

10

Horn

710000365

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

$1.14

12

Hex. Flange Elastic Nut M5

233251414

$1.66

13

Tie-Rap 180 mm

414115200

$0.09

14

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

710000367

$73.05

15

Reflector

705000660

Unavailable

16

Tail Light

710000368

Unavailable

17

FRONT LIGHT - Call your local BRP dealership

710000369

Unavailable

18

FRONT LIGHT SUPPORT - Call your local BRP dealership | Includes 18 - 19.

705000897

$22.28

19

Protector

705000023

$22.28

20

LIGHT/HORN SWITCH - Call your local BRP dealership

710000370

$94.58

21

Mirror

709400207

Unavailable

22

Power reductor

710000371

Unavailable

23

Bracket

707000286

Unavailable

24

Locking plate

707000287

Unavailable

25

Locking device (with key)

707000288

Unavailable

26

WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership | English Version

704901444

Unavailable

27

MIRROR SUPPORT - Call your local BRP dealership | Europe

705000673

$20.57

28

Shift Label

704900069

Unavailable

29

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

$0.91

30

Hex. Flange Elastic Nut M5

233251414

$1.66

31

Flat Washer M5

234051410

$0.44

32

Pop Rivet 3/16"

390402300

$0.64

33

Hex. Flange Screw M6 X 20

207662044

$1.66

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

35

WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership

234180411

Unavailable

36

Push Nut

250100034

$1.11

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

38

Push-nut

250100043

Unavailable

39

O-ring

293300097

Unavailable

40

Hex. Flange Elastic Nut M10

233201414

$1.26

41

Lock Washer Serrated M6

250200041

$0.92
