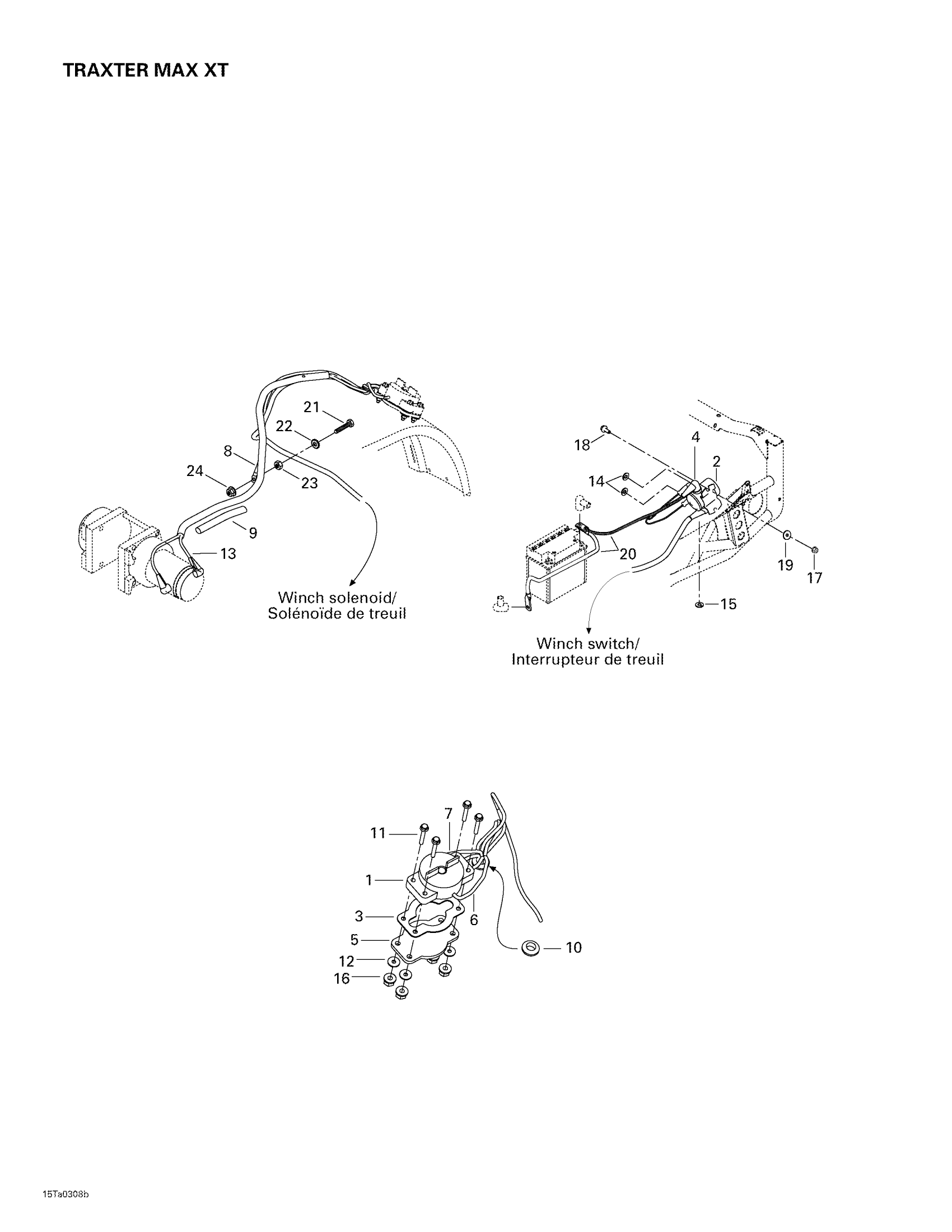

Can-Am Traxter Max, 2003 Electrical Accessories (Traxter Max XT) Diagram

#

Description
Price

1

Winch Switch | 7423/7424 (XT-Yellow/Jaune).

710000116

Unavailable

2

Solenoide *Solenoid Kit | 7423/7424 (XT-Yellow/Jaune).

715900123

$83.05

3

Winch support | 7423/7424 (XT-Yellow/Jaune).

710000118

Unavailable

4

Protector cap | 7423/7424 (XT-Yellow/Jaune).

710000119

Unavailable

5

Rubber spacer | 7423/7424 (XT-Yellow/Jaune).

710000120

Unavailable

6

Solenoid Wire

710000498

Unavailable

7

Winch wire | 7423/7424 (XT-Yellow/Jaune).

710000123

Unavailable

8

Winch wire | 7423/7424 (XT-Yellow/Jaune).

710000124

Unavailable

9

Tubing 16 Mm 1000Mm Long

219704408

$6.23

10

GROMMET - Call your local BRP dealership | 7423/7424 (XT-Yellow/Jaune).

293720066

Unavailable

11

Hex. Flange Screw M6 X 40

207664044

$2.18

12

Flat Washer

224061201

$1.11

13

Winch wire | 7423/7424 (XT-Yellow/Jaune).

710000134

Unavailable

14

Lock washer | Quest XT 650.

250200026

$1.83

15

Lock washer | Quest XT 650.

250200027

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

Hex. Flange Elastic Nut M5

233251414

$1.66

18

Hex. Screw M5 X 20

207152044

$0.88

19

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

20

Battery Cable | 7423/7424 (XT-Yellow/Jaune).

710000135

Unavailable

21

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

22

External Serrated Lock Washer 6 mm

234461608

$0.92

23

Hex. Nut M6

232061414

$0.44

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
