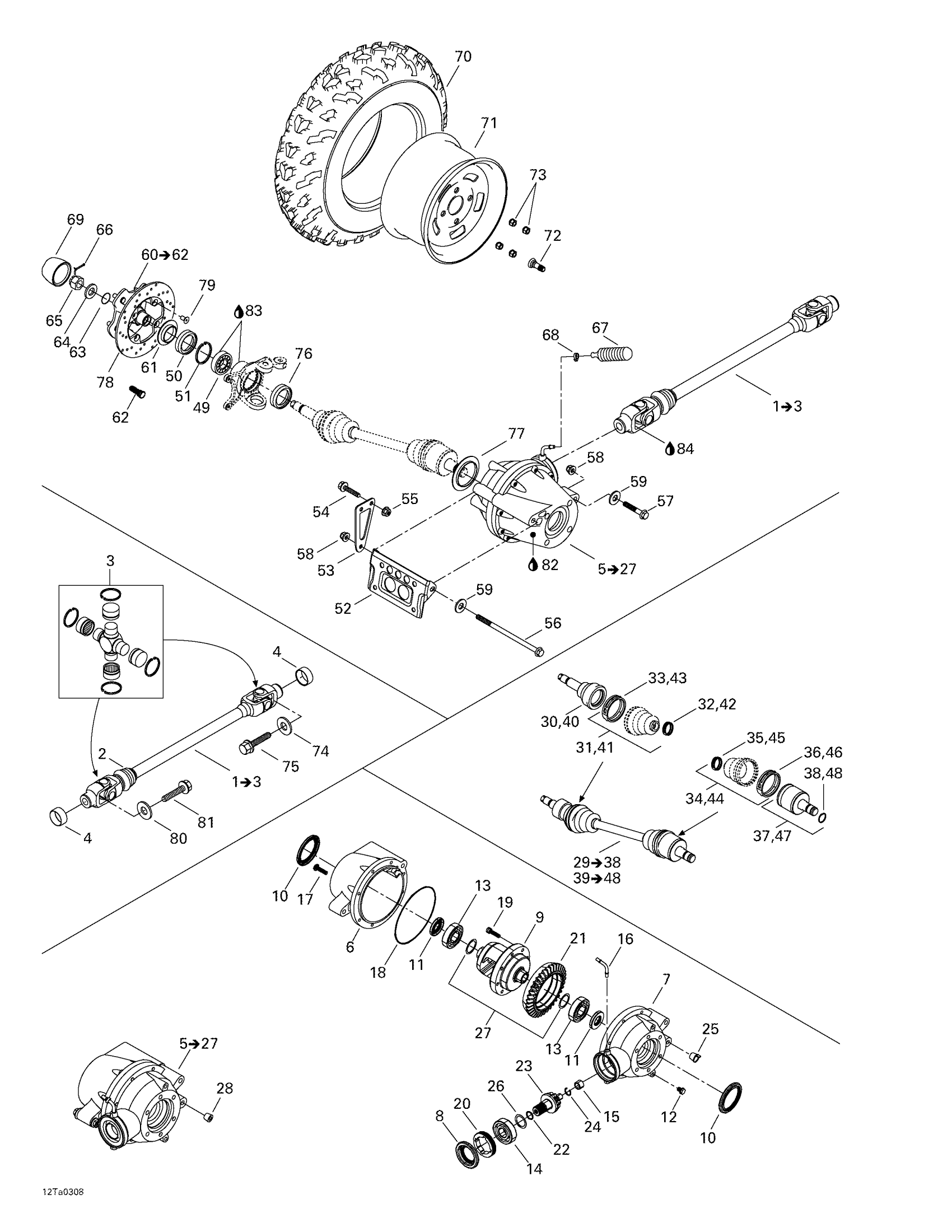

Can-Am Traxter Max, 2003 Drive System, Front Diagram

#

Description
Price

1

Drive axle | Includes 1 - 3.

705400207

Unavailable

2

PROTECTOR - Call your local BRP dealership

705400051

Unavailable

3

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

4

Wear Ring | 4X4

705400036

$25.35

5

Front differencial ass'y | Includes 5 - 27.

705400086

Unavailable

6

Front Cover

705400099

Unavailable

7

Differential Carrier

705500177

Unavailable

8

Oil Seal | 4X4

705401481

$18.43

9

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

10

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

11

Gasket | 4X4

705401618

$17.66

12

Drain Plug | 4X4

705500894

$11.06

13

Ball Bearing | 4X4

705401606

$49.20

14

Ball Bearing | 4X4

705500260

$30.74

15

Needle Bearing | 4X4

705500261

Unavailable

16

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

17

Screw | 4X4

705401601

$9.29

18

Seal | 4X4

705500265

$16.12

19

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

$8.43

20

Nut | 4X4

705401603

$36.89

21

Crown Gear

705400103

$249.20

22

O-Ring | 4X4

705500267

$6.25

23

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

24

RETAINING RING - Call your local BRP dealership | 4X4

705500269

$8.43

25

Protector Plug

705500246

Unavailable

26

Pinion Gear Shim 1.67 mm

705502061

$16.12

27

Shim | 4X4

705401604

$55.35

28

Fill level plug

705500228

Unavailable

29

RH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400125

$493.82

30

CV JOINT - Call your local BRP dealership

705400093

$193.82

31

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$41.51

32

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

33

Clamp | 4X4

705400180

Unavailable

34

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$41.51

35

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

36

Clamp | 4X4

705400181

Unavailable

37

RH Plunging Joint

705400128

Unavailable

38

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

39

LH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400124

Unavailable

40

CV JOINT - Call your local BRP dealership

705400093

$193.82

41

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$41.51

42

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

43

Clamp | 4X4

705400180

Unavailable

44

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$41.51

45

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

46

Clamp | 4X4

705400181

Unavailable

47

LH Plunging Joint

705400129

Unavailable

48

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

49

Ball Bearing

293350150

$52.99

50

OIL SEAL - Call your local BRP dealership

705500099

$13.82

51

Circlip

293370019

$4.98

52

Bracket (Differential)

705400068

Unavailable

53

RH Diffential Front Bracket

705400069

Unavailable

54

Hex. Flange Screw M8 X 20

207682044

$0.92

55

Hex. Flange Elastic Nut M8

233281414

$1.14

56

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

57

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

207506044

Unavailable

58

Hex. Flange Nut M10

233101414

$4.10

59

Flat Washer

250200003

Unavailable

60

Wheel Hub Ass'y | Includes 50 - 52.

705500254

$188.43

61

WEAR RING - Call your local BRP dealership

705500100

Unavailable

62

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

63

O-RING - Call your local BRP dealership

705500271

Unavailable

64

WASHER - Call your local BRP dealership

250200019

$2.02

65

Hex. Flange Castellated Nut M18

232291413

$2.82

66

Cotter Pin

250400036

$1.74

67

Rubber Bellow | 4X4

705400552

$6.02

68

Tie Wrap 94 mm | 4X4

293750001

$0.83

69

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

70

Tire 205 X 80 R12

705402890

$133.82

71

Front Rim

705400010

Unavailable

Front Rim | 7423/7424 (XT-Yellow/Jaune).

705400072

Unavailable

72

Rim Valve With Cap

705400193

$6.69

73

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

74

Washer

211200041

$2.63

75

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

76

Oil Seal | 4X4

293250090

$23.05

77

Wear Ring

705400016

Unavailable

78

Brake disc 205 mm

705600168

Unavailable

79

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

80

Flat Washer M10 | 4X4

250200014

$1.17

81

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

82

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

83

Synthetic Grease, 400 G

293550010

Unavailable

84

Loctite 271, 10 ml

293800005

$20.77
