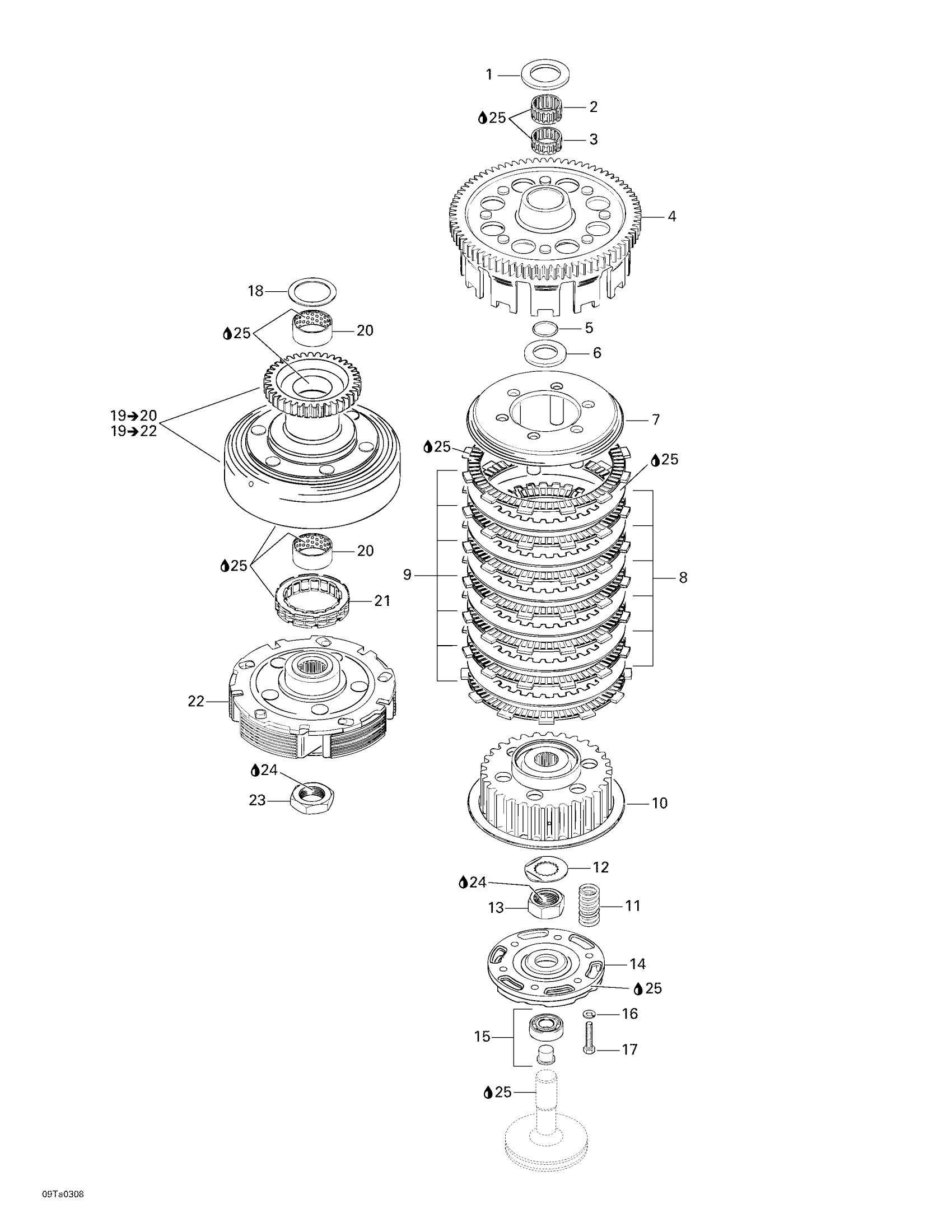

Can-Am Traxter Max, 2003 Clutch Diagram

#

Description
Price

1

THRUST WASHER - Call your local BRP dealership

420227390

$11.85

2

Needle Bearing

420632070

$23.05

3

NEEDLE CAGE - Call your local BRP dealership

420232655

Unavailable

4

Clutch Drum

420659203

Unavailable

5

O-RING - Call your local BRP dealership

293300018

Unavailable

6

THRUST WASHER - Call your local BRP dealership

420227600

$9.91

7

INNER PLATE - Call your local BRP dealership

420659230

$55.35

8

Plate 1.5 mm

420259915

Unavailable

9

LAMELLA 3 MM - Call your local BRP dealership

420259907

Unavailable

10

CLUTCH HUB - Call your local BRP dealership

420259876

Unavailable

11

CLUTCH SPRING - Call your local BRP dealership

420239741

$7.09

12

TAB WASHER - Call your local BRP dealership

420245320

$7.66

13

Hex. Nut M18

420242605

Unavailable

14

Retaining Plate

420259131

$69.20

15

Hub Thrust With Ball Bearing

420259143

Unavailable

16

Lock Washer

420945750

Unavailable

17

HEX. SCREW M5 X 25 - Call your local BRP dealership

420241770

$2.99

18

THRUST WASHER - Call your local BRP dealership

420427130

$7.66

19

CLUTCH ASS'Y - Call your local BRP dealership | Includes 19 to 23

420296093

Unavailable

19

CLUTCH - Call your local BRP dealership | Includes 20 to 21

420659177

$485.99

20

CLUTCH BUSHING - Call your local BRP dealership

420233765

$29.97

21

SPRAG CLUTCH - Call your local BRP dealership

420659240

Unavailable

22

CLUTCH HUB - Call your local BRP dealership

420659180

Unavailable

23

Hex. Nut, M22 X 1.5

420842239

$14.27

24

Loctite 243, 10 ml

293800060

$20.77

25

Not Available As Spare Part - Friction Washer

Unavailable
